MS122

Toyota CROWN-MAJESTA · 1983 · 4,981 parts · 181 categories

4,981 items

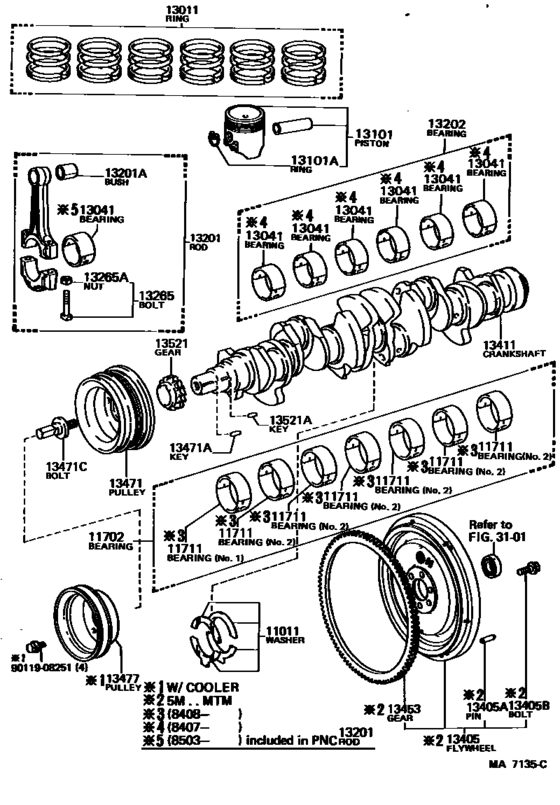

Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME) 52

#	OEM	Part name
11011	11011-43010	Washer Set, Crankshaft Thrust
11011	11012-43010	Washer Set, Crankshaft Thrust
11011	11013-43010	Washer Set, Crankshaft Thrust
11702	11704-43010	Bearing Set, Crankshaft
11702	11705-43010	Bearing Set, Crankshaft
11711	11071-43010-01	Bearing, Crankshaft
11711	11071-43010-02	Bearing, Crankshaft
11711	11071-43010-03	Bearing, Crankshaft
11711	11071-43010-04	Bearing, Crankshaft
11711	11071-43010-05	Bearing, Crankshaft
11711	11701-43010-01	Bearing, Crankshaft
11711	11701-43010-02	Bearing, Crankshaft
11711	11701-43010-03	Bearing, Crankshaft
11711	11701-43010-04	Bearing, Crankshaft
11711	11701-43010-05	Bearing, Crankshaft
13011	13011-43030	Ring Set, Piston
13011	13011-43031	Ring Set, Piston
13011	13013-43030	Ring Set, Piston
13011	13013-43031	Ring Set, Piston
13011	13014-43030	Ring Set, Piston
13011	13014-43031	Ring Set, Piston
13011	13015-43030	Ring Set, Piston
13011	13015-43031	Ring Set, Piston
13041	13041-42010-01	Bearing, Connecting Rod
13041	13041-42010-02	Bearing, Connecting Rod
13041	13041-42010-03	Bearing, Connecting Rod
13041	13041-42010-04	Bearing, Connecting Rod
13041	13041-42010-05	Bearing, Connecting Rod
13101	13101-43011	Piston Sub-Assy, W/pin
13101	13101-43011-02	Piston Sub-Assy, W/pin
13101	13103-43031	Piston Sub-Assy, W/pin
13101	13104-43031	Piston Sub-Assy, W/pin
13101	13105-43031	Piston Sub-Assy, W/pin
13101	90521-25001	Ring, Hole Snap(For Piston Pin)
13201	13201-49025	Rod Sub-Assy, Connecting
13201	13201-49026	Rod Sub-Assy, Connecting
13201	90999-73066	Bush(For Connecting Rod Small End)
13202	13204-42010	Bearing Set, Connecting Rod
13202	13205-42010	Bearing Set, Connecting Rod
13265	13265-49025	Bolt, Connecting Rod
13265	90170-09195	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-49175	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90105-10042	Bolt, Flywheel Setting
13411	13411-45013	Crankshaft
13453	13453-20010	Gear, Flywheel Ring
13471	13407-41030	Pulley, Crankshaft
13471	90280-05003	Key, Crankshaft(For Crankshaft Pulley Set)
13471	90105-16011	Bolt(For Crankshaft Pulley Set)
13477	88451-30330	Pulley, Crankshaft, No.2
13521	13521-41011	Gear Or Sprocket, Crankshaft Timing
9011908251	90119-08251	BOLT

OEM	Part name	Category
11011-43010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11012-43010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11013-43010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11071-43010-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11071-43010-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11071-43010-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11071-43010-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11071-43010-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11701-43010-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11701-43010-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11701-43010-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11701-43010-04	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11701-43010-05	Bearing, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11704-43010	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
11705-43010	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13011-43030	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13011-43031	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13013-43030	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13013-43031	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13014-43030	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13014-43031	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13015-43030	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13015-43031	Ring Set, Piston	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13041-42010-01	Bearing, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13041-42010-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13041-42010-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13041-42010-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13041-42010-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13101-43011	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13101-43011-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13103-43031	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13104-43031	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13105-43031	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13201-49025	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13201-49026	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13204-42010	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13205-42010	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13265-49025	Bolt, Connecting Rod	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13405-49175	Flywheel Sub-Assy	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13407-41030	Pulley, Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13411-45013	Crankshaft	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13453-20010	Gear, Flywheel Ring	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
13521-41011	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
88451-30330	Pulley, Crankshaft, No.2	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90105-10042	Bolt, Flywheel Setting	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90105-16011	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90119-08251	BOLT	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90170-09195	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90250-08054	Pin, Straight	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90280-05003	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90521-25001	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
90999-73066	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.1983 - ] (8308- )5M,5ME)
