Search › Model › MS122

MS122

Toyota CROWN-MAJESTA · 1983 · 4,981 parts · 181 categories

4,981 items

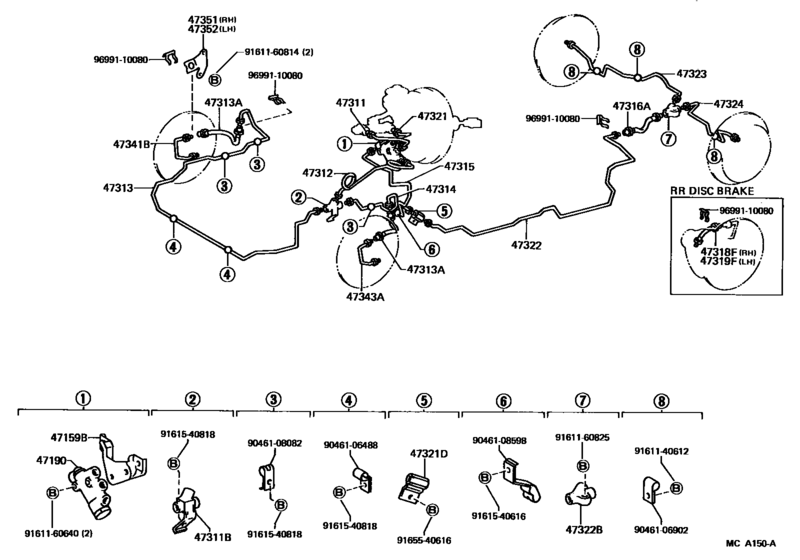

Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD) 43

#	OEM	Part name
47159	47159-30150	Bracket, Proportioning Valve
47190	47190-30110	Valve Assy, Proportioning & By-Pass
47190	47190-30150	Valve Assy, Proportioning & By-Pass
47311	47311-30380	Tube, Front Brake, No.1
47311	47311-30400	Tube, Front Brake, No.1
47311	90413-10166	Way, No.1(For Front Brake Tube)
47312	47312-30170	Tube, Front Brake, No.2
47312	47312-30220	Tube, Front Brake, No.2
47313	47313-30150	Tube, Front Brake, No.3
47313	90947-02361	Hose, Flexible, No.1(For Front)
47314	47314-30170	Tube, Front Brake, No.4
47315	47315-30300	Tube, Front Brake, No.5
47315	47315-30350	Tube, Front Brake, No.5
47316	96940-32855	Hose, Flexible, No.1
47321	47321-30100	Tube, Rear Brake, No.1
47321	47321-30120	Tube, Rear Brake, No.1
47321	90412-10116	Way(For Front Brake Tube)
47322	47322-30070	Tube, Rear Brake, No.2
47322	90413-10156	Way, No.1(For Rear Brake Tube)
47322	90413-10147	Way, 3(For Rear Brake Tube)
47323	47323-30080	Tube, Rear Brake, No.3
47324	47324-30040	Tube, Rear Brake, No.4
47341	47341-30020	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-30020	Tube, Wheel Cylinder, Front Lh No.1
47351	47351-30160	Bracket, Flexible Hose(For Front Rh)
47352	47352-30080	Bracket, Flexible Hose(For Front Lh)
9046106488	90461-06488	New Genuine Part
9046106902	90461-06902	Clamp, Brake Tube, No.3
9046108082	90461-08082	New Genuine Part
9046108598	90461-08598	New Genuine Part
9161140612	91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612	91611-G0612	Bolt
9161160640	91611-60640	New Genuine Part
9161160814	91611-60814	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161540616	91615-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161540616	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161540818	91615-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161540818	91611-B0816	Bolt
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9699110080	96991-10080	CLIP

OEM	Part name	Category
47159-30150	Bracket, Proportioning Valve	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47190-30110	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47190-30150	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47311-30380	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47311-30400	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47312-30170	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47312-30220	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47313-30150	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47314-30170	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47315-30300	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47315-30350	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47321-30100	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47321-30120	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47322-30070	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47323-30080	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47324-30040	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47341-30020	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47343-30020	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47351-30160	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
47352-30080	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90412-10116	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90413-10147	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90413-10156	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90413-10166	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90461-06488	New Genuine Part	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90461-06902	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90461-08082	New Genuine Part	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90461-08598	New Genuine Part	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
90947-02361	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-60640	New Genuine Part	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-60814	Bolt	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-B0816	Bolt	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91611-G0612	Bolt	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91615-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91615-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91651-60614	Bolt	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
91655-40616	Bolt	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
96940-32855	Hose, Flexible, No.1	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
96991-10080	CLIP	Brake Tube & Clamp ([08.1983 - ] (8308- )LS120,MS122,YS120..LHD)
