MS122

Toyota CROWN-MAJESTA · 1983 · 4,981 parts · 181 categories

← Back to categories

4,981 items

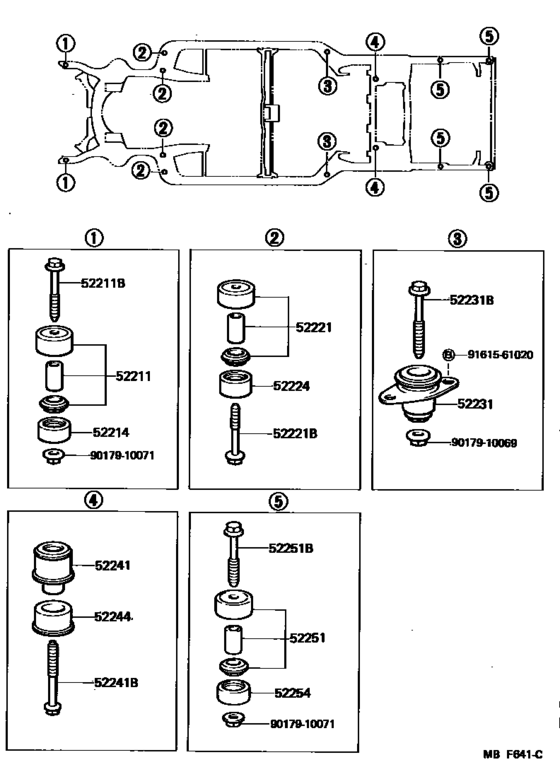

Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED) 16

#	OEM	Part name
52211	52201-30907	Cushion, Body Mounting, No.1 Upper
52211	52210-30010	Cushion Assy, Body Mounting, Upper
52211	90119-10018	Bolt(For Body Mounting No.1 Cushion)
52214	52023-30030	Cushion Sub-Assy, Body Mounting, Rear Lower
52221	52201-30908	Cushion, Body Mount, No.2 Upper
52221	90119-10001	Bolt(For Body Mount No.2 Cushion)
52231	52203-30050	Cushion Sub-Assy, Body Mounting, Rear Upper
52231	90109-10068	Bolt(For Body Mount No.3 Cushion)
52241	52203-30040	Cushion Sub-Assy, Body Mounting, Rear Upper
52241	90119-10146	Bolt(For Body Mount No.4 Cushion)
52244	52204-30020	Cushion Sub-Assy, Body Mounting, Rear Lower
52251	90109-10067	Bolt(For Body Mount No.5 Cushion)
9017910069	90179-10069	NUT
9017910071	90179-10071	NUT
9161561020	91615-61020	Bolt (For Transfer Case)Cover No.2
9161561020	91612-B1020	Bolt (For Transfer Case)Cover No.2

OEM	Part name	Category
52023-30030	Cushion Sub-Assy, Body Mounting, Rear Lower	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
52201-30907	Cushion, Body Mounting, No.1 Upper	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
52201-30908	Cushion, Body Mount, No.2 Upper	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
52203-30040	Cushion Sub-Assy, Body Mounting, Rear Upper	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
52203-30050	Cushion Sub-Assy, Body Mounting, Rear Upper	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
52204-30020	Cushion Sub-Assy, Body Mounting, Rear Lower	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
52210-30010	Cushion Assy, Body Mounting, Upper	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90109-10067	Bolt(For Body Mount No.5 Cushion)	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90109-10068	Bolt(For Body Mount No.3 Cushion)	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90119-10001	Bolt(For Body Mount No.2 Cushion)	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90119-10018	Bolt(For Body Mounting No.1 Cushion)	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90119-10146	Bolt(For Body Mount No.4 Cushion)	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90179-10069	NUT	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90179-10071	NUT	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
91615-61020	Bolt (For Transfer Case)Cover No.2	Body Mounting ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 181
Collected: 2026-08-03
