Search › Model › MS120

MS120

Toyota CROWN-MAJESTA · 1983 · 4,817 parts · 203 categories

4,817 items

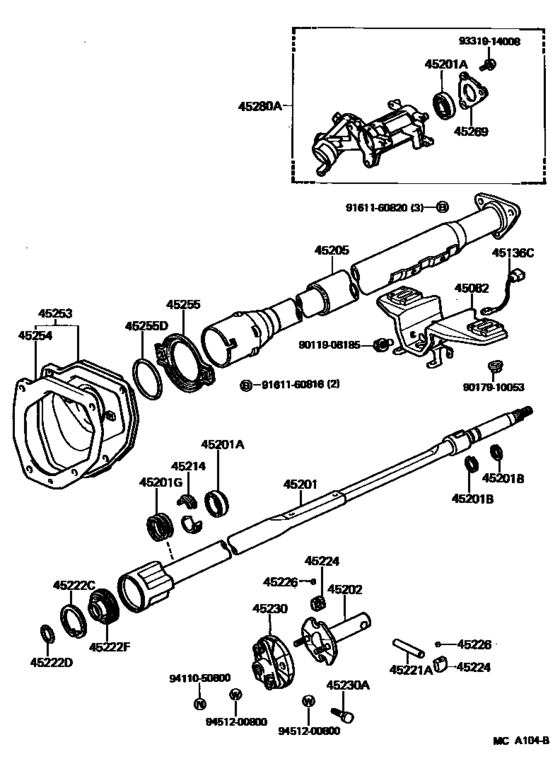

Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD) 38

#	OEM	Part name
45082	45082-30050	Bracket Sub-Assy, Break Away W/capsule
45201	45210-30050	Shaft Sub-Assy, Steering Main
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90369-43004	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17196	Ring, Shaft Snap(For Steering Main Shaft)
45201	90501-29388	Spring, Compression(For Steering Main Shaft)
45202	45220-30040	Shaft Sub-Assy, Steering Intermediate
45205	45870-30150	Tube Sub-Assy, Steering Column
45214	45214-30040	Retainer, Main Shaft Spring
45221	90250-10059	Pin(For Steering Intermediate Shaft)
45222	90521-52003	Ring, Hole Snap(For Dust Cover)
45222	90301-23054	Ring, O(For Dust Cover)
45222	45222-30030	Cover, Steering Gear Dust
45224	45224-30040	Block, Bearing(For Steering Flexible Coupling)
45224	45225-30040	Block, Bearing(For Steering Flexible Coupling)
45226	45226-30020	Anti-Rattle(For Steering Flexible Coupling)
45226	45226-30021	Anti-Rattle(For Steering Flexible Coupling)
45230	45230-30100	Coupling Assy, Flexible
45230	90101-08230	Bolt, Hexagon(For Steering Flexible Copling Set)
45253	45025-30110	Cover, Steering Column Hole
45254	45254-30090	Shield, Steering Column Hole
45254	45254-30110	Shield, Steering Column Hole
45255	45255-30040	Plate, Steering Column Hole Cover
45255	90301-59001	Grommet Or Ring, O(For Steering Column Clamp)
45255	90301-60122	Grommet Or Ring, O(For Steering Column Clamp)
45269	45269-10010	Retainer, Main Shaft Bearing
45280	45280-30340	Bracket Assy, Steering Column, Upper
9011908185	90119-08185	New Genuine Part
9011908185	90119-08165	New Genuine Part
9017910053	90179-10053	New Genuine Part
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9331914008	93319-14008	SCREW
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-30110	Cover, Steering Column Hole	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45082-30050	Bracket Sub-Assy, Break Away W/capsule	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45210-30050	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45214-30040	Retainer, Main Shaft Spring	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45220-30040	Shaft Sub-Assy, Steering Intermediate	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45222-30030	Cover, Steering Gear Dust	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45224-30040	Block, Bearing(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45225-30040	Block, Bearing(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45226-30020	Anti-Rattle(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45226-30021	Anti-Rattle(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45230-30100	Coupling Assy, Flexible	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45254-30090	Shield, Steering Column Hole	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45254-30110	Shield, Steering Column Hole	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45255-30040	Plate, Steering Column Hole Cover	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45269-10010	Retainer, Main Shaft Bearing	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45280-30340	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
45870-30150	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90101-08230	Bolt, Hexagon(For Steering Flexible Copling Set)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90119-08165	New Genuine Part	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90119-08185	New Genuine Part	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90179-10053	New Genuine Part	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90250-10059	Pin(For Steering Intermediate Shaft)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90301-23054	Ring, O(For Dust Cover)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90301-59001	Grommet Or Ring, O(For Steering Column Clamp)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90301-60122	Grommet Or Ring, O(For Steering Column Clamp)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90369-43004	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90501-29388	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90520-17196	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
90521-52003	Ring, Hole Snap(For Dust Cover)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
91611-60820	Bolt(For Transaxle & Engine Setting)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
91611-B0816	Bolt	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
91611-G0820	Bolt	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
93319-14008	SCREW	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
94110-50800	Nut(For Repair Actuator Set)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD)
