MS120

Toyota CROWN-MAJESTA · 1983 · 4,817 parts · 203 categories

4,817 items

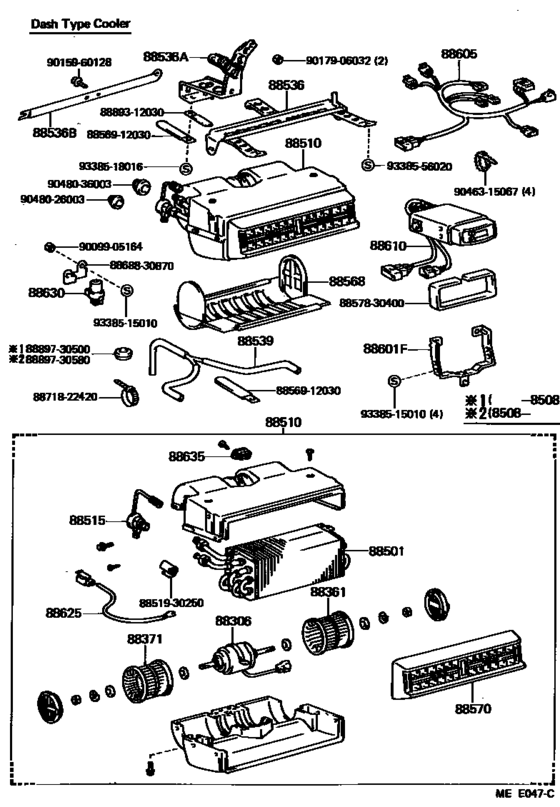

Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H) 60

#	OEM	Part name
88306	88550-60030	Motor Sub-Assy, Cooler Blower, No.1
88361	88541-10010	Fan, Cooler Blower, No.1
88371	88541-10020	Fan, Cooler Blower, No.2
88501	88501-30570	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30610	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30611	Evaporator Sub-Assy, Cooler, No.1
88510	88510-30780	Unit Assy, Cooler
88510	88510-3A070	Unit Assy, Cooler
88515	88515-20040	Valve, Cooler Expansion
88515	88515-16031	Valve, Cooler Expansion
88515	88515-95400	Valve, Cooler Expansion
88536	88536-30740	Bracket, Cooling Unit, No.1
88536	88536-30750	Bracket, Cooling Unit, No.2
88536	88536-30760	Bracket, Cooling Unit, No.3
88539	88539-30590	Hose, Cooler Unit Drain, No.1
88539	88539-30600	Hose, Cooler Unit Drain, No.1
88568	88568-30310	Filter, Cooler Unit Cover
88570	88570-30600	Grille Sub-Assy, Cooler Air Outlet
88601	88688-30890	Bracket, Cooler Control Switch
88605	88608-30520	Harness Sub-Assy, Cooler Wiring, No.1
88605	88608-30540	Harness Sub-Assy, Cooler Wiring, No.1
88610	88610-30590	Switch Assy, Cooler Control
88610	88610-60050	Switch Assy, Cooler Control
88625	88625-20040	Thermistor, Cooler, No.1
88625	88625-60020	Thermistor, Cooler, No.1
88635	88635-30370	Resistor, Cooler Unit Blower
88635	88635-0B010	Resistor, Cooler Unit Blower
88645	88645-12010	Switch, Pressure
88645	88645-12020	Switch, Pressure
88650	88650-30490	Amplifier Assy, Cooler Stabilizer
88688	88688-30830	Bracket, Cooler Stabilizer Amplifier
8851930250	88519-30250	Holder, Remote Bulb
8856912030	88569-12030	Clamp (For Cooler Wiring Harness), No.1
8856930860	88569-30860	Clamp (for Cooler Relay)
8856930880	88569-30880	Clamp (for Cooler Relay)
8857814020	88578-14020	Packing, Cooler Stabilizer Amplifier
8857830400	88578-30400	Packing A (For Cooler)
8857830400	88578-24010	Packing A (For Cooler)
8868830870	88688-30870	Bracket, Cooling Unit, No.1
8871822420	88718-22420	Pipe, Cooler Refrigerant Suction, No.2
8889312030	88893-12030	Collar (for Cooler Idler Pulley)
8889730500	88897-30500	Pipe, Air Duct
8889730580	88897-30580	Grommet(For Drain Hose)
9004464009	90044-64009	CLAMP
9009490405	90094-90405	New Genuine Part
9009900149	90099-00149	New Genuine Part
9009905164	90099-05164	Nut
9015960128	90159-60128	New Genuine Part
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9046315067	90463-15067	New Genuine Part
9048026003	90480-26003	Grommet (For Cooler Unit)
9048036003	90480-36003	Grommet (For Cooler Unit)
9338515010	93385-15010	Screw(For Steering Tilt Lever)
9338518016	93385-18016	New Genuine Part
9338556020	93385-56020	New Genuine Part
9338556020	90091-20641	New Genuine Part
9353014012	93530-14012	New Genuine Part
9353014012	93530-24012	New Genuine Part
9354014012	93540-14012	Screw

OEM	Part name	Category
88501-30570	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88501-30610	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88501-30611	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88510-30780	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88510-3A070	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88515-16031	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88515-20040	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88515-95400	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88519-30250	Holder, Remote Bulb	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88536-30740	Bracket, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88536-30750	Bracket, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88536-30760	Bracket, Cooling Unit, No.3	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88539-30590	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88539-30600	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88541-10010	Fan, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88541-10020	Fan, Cooler Blower, No.2	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88550-60030	Motor Sub-Assy, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88568-30310	Filter, Cooler Unit Cover	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88569-12030	Clamp (For Cooler Wiring Harness), No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88569-30860	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88569-30880	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88570-30600	Grille Sub-Assy, Cooler Air Outlet	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88578-14020	Packing, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88578-24010	Packing A (For Cooler)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88578-30400	Packing A (For Cooler)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88608-30520	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88608-30540	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88610-30590	Switch Assy, Cooler Control	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88610-60050	Switch Assy, Cooler Control	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88625-20040	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88625-60020	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88635-0B010	Resistor, Cooler Unit Blower	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88635-30370	Resistor, Cooler Unit Blower	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88645-12010	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88645-12020	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88650-30490	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88688-30830	Bracket, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88688-30870	Bracket, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88688-30890	Bracket, Cooler Control Switch	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88718-22420	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88893-12030	Collar (for Cooler Idler Pulley)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88897-30500	Pipe, Air Duct	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
88897-30580	Grommet(For Drain Hose)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90044-64009	CLAMP	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90091-20641	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90094-90405	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90099-00149	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90099-05164	Nut	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90159-60128	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90179-06032	Direct	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90179-06274	Nut	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90463-15067	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90480-26003	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
90480-36003	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
93385-15010	Screw(For Steering Tilt Lever)	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
93385-18016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
93385-56020	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
93530-14012	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
93530-24012	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
93540-14012	Screw	Heating & Air Conditioning - Cooler Unit ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H)
