Search › Model › MS117
MS117

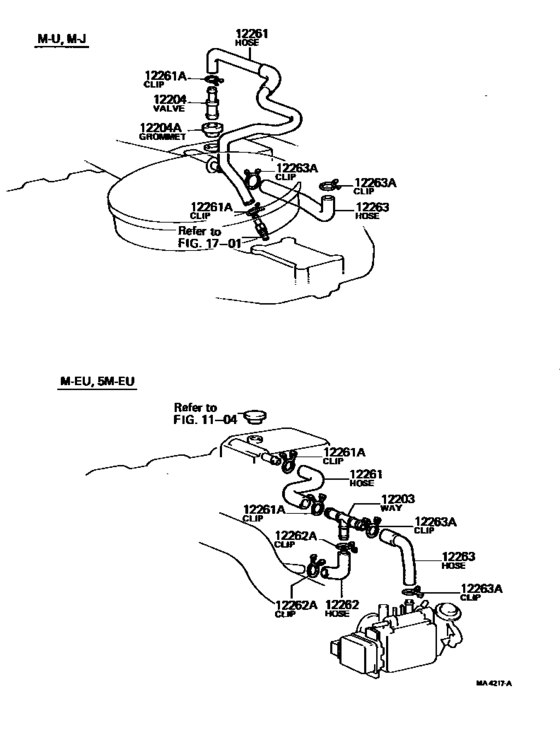

Ventilation Hose ([09.1979 - ] (7909- )MEU,MJ,5MEU,MU) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-41020 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18180 | Grommet(For Ventilation System) |
| 12261 | 12261-41070 | Hose, Ventilation |
| 12261 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12262-41060 | Hose, Ventilation, No.3 |
| 12263 | 90467-20002 | Clip(For Ventilation Tube) |
| OEM | Part name | Category |
|---|---|---|
| 12204-41020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.1979 - ] (7909- )MEU,MJ,5MEU,MU) |
| 12261-41070 | Hose, Ventilation | Ventilation Hose ([09.1979 - ] (7909- )MEU,MJ,5MEU,MU) |
| 12262-41060 | Hose, Ventilation, No.3 | Ventilation Hose ([09.1979 - ] (7909- )MEU,MJ,5MEU,MU) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.1979 - ] (7909- )MEU,MJ,5MEU,MU) |
| 90467-20002 | Clip(For Ventilation Tube) | Ventilation Hose ([09.1979 - ] (7909- )MEU,MJ,5MEU,MU) |
| 90480-18180 | Grommet(For Ventilation System) | Ventilation Hose ([09.1979 - ] (7909- )MEU,MJ,5MEU,MU) |
