Search › Model › MS117

MS117

Toyota CROWN-MAJESTA · 1979 · 4,977 parts · 185 categories

4,977 items

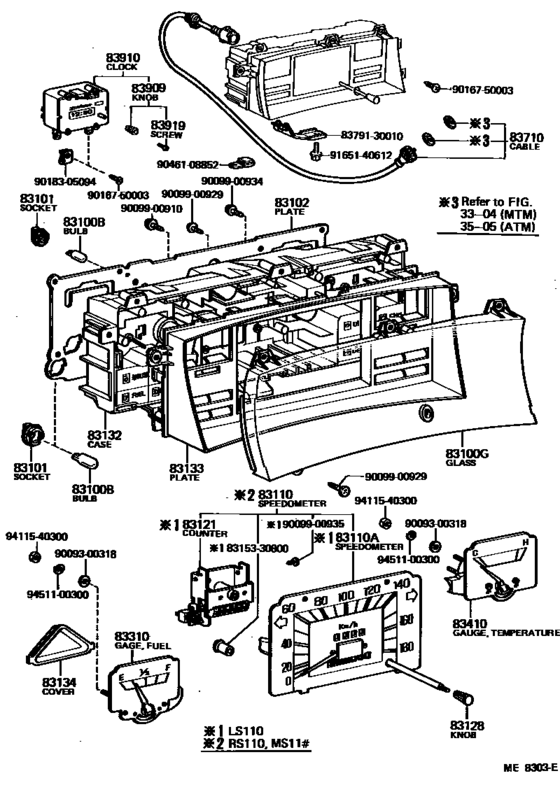

Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD) 46

#	OEM	Part name
83100	90981-11018	Bulb, Position Indicator Lamp
83100	99132-12034	Bulb, Position Indicator Lamp
83100	00234-00158	Bulb, Position Indicator Lamp
83100	83138-30710	Glass, Combination Meter
83100	83138-30830	Glass, Combination Meter
83101	83101-14030	Socket Sub-Assy, Combination Meter Bulb
83101	83101-14040	Socket, Indicator Lamp
83102	83247-30170	Plate Sub-Assy, Combination Meter Circuit, No.1
83102	83247-30840	Plate Sub-Assy, Combination Meter Circuit, No.1
83102	83247-30830	Plate Sub-Assy, Combination Meter Circuit, No.1
83110	83110-30610	Speedometer Assy
83110	83110-30620	Speedometer Assy
83110	83110-30790	Speedometer Assy
83110	83110-30820	Speedometer Assy
83128	83128-10260	Knob, Trip Counter
83132	83132-30010	Case, Combination Meter
83132	83132-30830	Case, Combination Meter
83133	83133-30010	Plate, Combination Meter, No.1
83133	83133-30830	Plate, Combination Meter, No.1
83134	83146-30800	Cover, Combination Meter, No.1
83310	83243-30800	Gage Assy, Fuel Receiver
83310	83243-30830	Gage Assy, Fuel Receiver
83410	83244-30800	Gage Assy, Water Temperature Receiver
83410	83244-30830	Gage Assy, Water Temperature Receiver
83710	83710-30431	Cable Assy, Speedometer Drive, No.1
83710	83710-30460	Cable Assy, Speedometer Drive, No.1
83909	83909-10041	Knob, Clock
83910	83910-30240	Clock Assy
83910	83910-30260	Clock Assy
83910	83910-30290	Clock Assy
83919	83919-14012	Screw, Thermometer
8315330800	83153-30800	Grommet, Meter Glass
8379130010	83791-30010	New Genuine Part
9009300318	90093-00318	New Genuine Part
9009900910	90099-00910	New Genuine Part
9009900929	90099-00929	New Genuine Part
9009900934	90099-00934	New Genuine Part
9009900935	90099-00935	New Genuine Part
9016750003	90167-50003	New Genuine Part
9016750003	93568-55016	Screw
9018305094	90183-05094	NUT
9046108852	90461-08852	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9411540300	94115-40300	New Genuine Part
9451100300	94511-00300	New Genuine Part

OEM	Part name	Category
00234-00158	Bulb, Position Indicator Lamp	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83101-14030	Socket Sub-Assy, Combination Meter Bulb	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83101-14040	Socket, Indicator Lamp	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83110-30610	Speedometer Assy	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83110-30620	Speedometer Assy	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83110-30790	Speedometer Assy	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83110-30820	Speedometer Assy	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83128-10260	Knob, Trip Counter	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83132-30010	Case, Combination Meter	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83132-30830	Case, Combination Meter	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83133-30010	Plate, Combination Meter, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83133-30830	Plate, Combination Meter, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83138-30710	Glass, Combination Meter	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83138-30830	Glass, Combination Meter	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83146-30800	Cover, Combination Meter, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83153-30800	Grommet, Meter Glass	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83243-30800	Gage Assy, Fuel Receiver	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83243-30830	Gage Assy, Fuel Receiver	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83244-30800	Gage Assy, Water Temperature Receiver	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83244-30830	Gage Assy, Water Temperature Receiver	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83247-30170	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83247-30830	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83247-30840	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83710-30431	Cable Assy, Speedometer Drive, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83710-30460	Cable Assy, Speedometer Drive, No.1	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83791-30010	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83909-10041	Knob, Clock	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83910-30240	Clock Assy	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83910-30260	Clock Assy	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83910-30290	Clock Assy	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
83919-14012	Screw, Thermometer	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90080-11225	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90093-00318	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90099-00910	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90099-00929	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90099-00934	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90099-00935	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90167-50003	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90183-05094	NUT	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90461-08852	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
90981-11018	Bulb, Position Indicator Lamp	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
91651-40612	BOLT	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
93568-55016	Screw	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
94115-40300	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
94511-00300	New Genuine Part	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
99132-12034	Bulb, Position Indicator Lamp	Meter ([09.1979 - 08.1981] (7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED, WG..CBR,EFI,LPG ; (7909-8108)LS11#, MS117,RS110..BTP, CTE,DLX,SDX,STD)
