MS117

Toyota CROWN-MAJESTA · 1979 · 4,977 parts · 185 categories
MS117 ×

← Back to categories

4,977 items

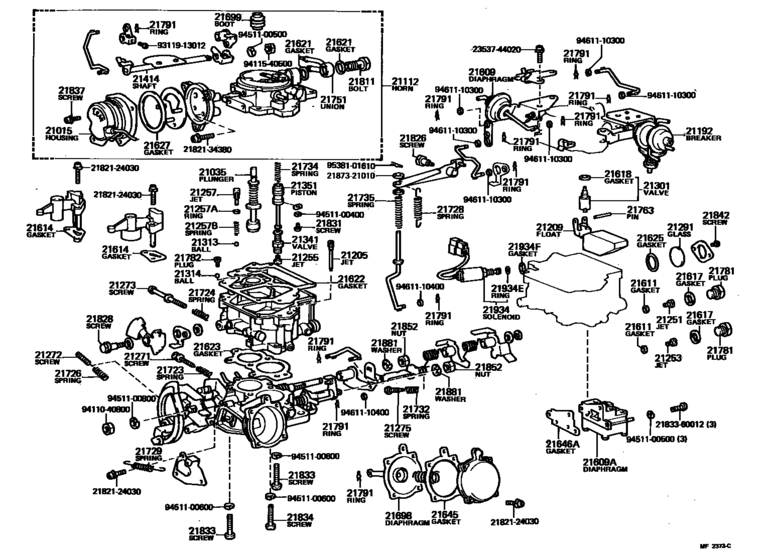

Carburetor ([09.1979 - 08.1982] (7909-8208)MJ) 86
#OEMPart name
21015 21015-41240 Housing Sub-Assy, Coil
21035 21035-41260 Plunger Sub-Assy, Pump
21112 21112-41300 Horn, Air
21192 21192-41300 Breaker
21205 90999-44060 Jet Sub-Assy, Slow
21209 21209-45200 Float Sub-Assy
21251 90999-41106 Jet, 1St Main
21253 90999-42180 Jet, 2Nd Main
21255 90999-43050 Jet, Power
21257 21257-45101 Jet, Pump
21257 21655-11040 Ring, O(For Pump Jet)
21257 21864-45100 Spring(For Pump Jet)
21271 21271-45260 Screw, Idle Adjusting
21272 21842-45100 Screw, 1St Idle Adjusting
21273 21273-41130 Screw, Throttle Adjusting
21275 21844-26030 Screw, Adjusting
21291 21291-60200 Glass, Level Gage
21301 21301-45201 Valve Sub-Assy, Needle
21313 21313-30010 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21341 21304-30010 Valve, Power
21351 21351-41012 Piston, Power
21414 21054-45100 Shaft, Choke
21609 21667-41261 Diaphragm Sub-Assy
21609 21609-45210 Diaphragm, No.2
21611 21611-22010 Gasket, Main Jet
21614 21614-41010 Gasket, Venturi
21614 21614-41011 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21621-30010 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-45100 Gasket, Air Horn
21623 21623-45100 Gasket, Body Flange
21625 21655-60200 Gasket, Level Gage
21627 21627-34080 Gasket, Coil Housing
21645 21645-41010 Gasket, Diaphragm, Cap
21646 21641-45070 Gasket, Diaphragm Housing, No.2
21698 21669-41260 Diaphragm
21699 21699-51010 Boot(For Pump Plunger)
21699 21699-43010 Boot(For Pump Plunger)
21723 21723-11041 Spring, Idle Adjusting
21724 21726-40010 Spring, Throttle Adjusting
21728 21728-45290 Spring, Throttle Valve Return
21729 21756-43010 Spring, 1St Throttle Back
21729 90506-06005 Spring, 1St Throttle Back
21732 21724-30010 Spring, Throttle Adjusting
21734 21734-30011 Spring, Power Piston
21735 21735-24360 Spring, Pump Arm
21751 21894-41190 Union, Nipple
21763 21763-38010 Pin, Float Lever
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21782 21782-41011 Plug, Nut(For Accelerating System)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21811 21811-30010 Bolt, Carburetor To Carburetor Hose Union
21826 21826-31012 Screw, Pump Arm Set
21828 21845-45200 Screw, 1St Idle Set
21831 21842-33010 Screw, Power Piston Stop
21833 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21833 21835-40010 Screw, Set, No.1(For Carburetor Body Set)
21834 93110-16035 Screw, Set(For 1St Idle Cam Follower Set)
21837 21821-25010 Screw, Coil Housing Set
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-45101 Solenoid, Throttle Valve
21934 21062-16190 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182134380 21821-34380 Screw, 2nd Throttle Valve Set
2183360012 21833-60012 Screw, Set, No.1(For Carburetor Body Set)
2187321010 21873-21010 Washer, Plunger
2353744020 23537-44020 Screw(For 1St Regulator Cover Set)
9311913012 93119-13012 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411540500 94115-40500 Nut(For Lpg Filter Stud Bolt Set)
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
9451100600 94511-00600 Washer, Lock, No.2
9451100800 94511-00800 WASHERSPRING
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
9538101610 95381-01610 New Genuine Part
