MS112

Toyota CROWN-MAJESTA · 1979 · 5,594 parts · 176 categories

5,594 items

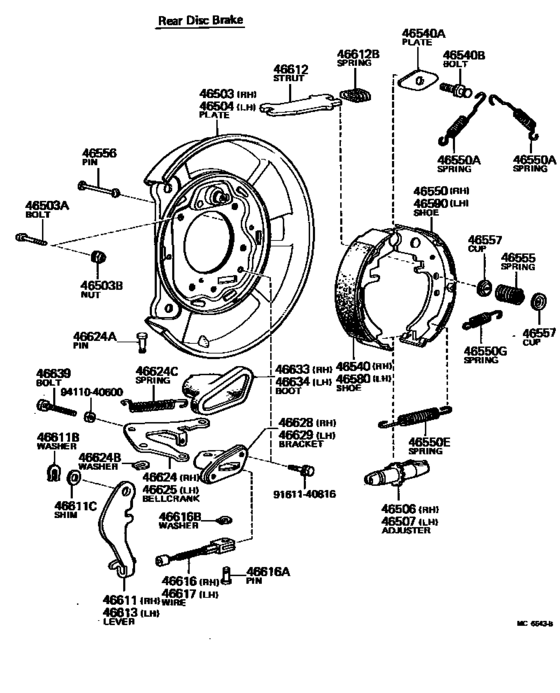

Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO) 48

#	OEM	Part name
46503	46503-30030	Plate Sub-Assy, Parking Brake, Rh
46503	42184-30030	Bolt(For Parking Brake Plate To Rear Axle Housing)
46503	90179-10030	Nut(For Parking Brake Plate To Rear Axle Housing)
46504	46504-30030	Plate Sub-Assy, Parking Brake, Lh
46506	47405-30040	Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center
46507	47406-30040	Adjuster Sub-Assy, Parking Brake Shoe, Lh
46540	46540-30021	Shoe Assy, Parking Brake, Rh Or Center No.1
46540	46540-30022	Shoe Assy, Parking Brake, Rh Or Center No.1
46540	47456-22010	Plate, Parking Brake Shoe Guide
46540	47456-20030	Plate, Shoe Guide(For Parking Brake)
46540	47459-30010	Bolt, Parking Brake Shoe Guide Plate Set
46550	46550-30021	Shoe Assy, Parking Brake, Rh Or Center No.2
46550	46550-30022	Shoe Assy, Parking Brake, Rh Or Center No.2
46550	90506-20031	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90506-14033	Spring, Tension, No.2(For Parking Brake Shoe Return)
46550	90506-12029	Spring, Tension, No.1(For Parking Brake Shoe Return)
46555	90501-16050	Spring, Brake Shoe Hold Down
46556	47447-22010	Pin, Shoe Hold Down Spring
46557	47449-30030	Cup, Brake Shoe Hold Down
46580	46580-30021	Shoe Assy, Parking Brake, Lh No.1
46580	46580-30022	Shoe Assy, Parking Brake, Lh No.1
46611	47611-30050	Lever, Parking Brake Shoe, Rh Or Center
46611	90213-07018	Washer, Type C(For Parking Brake Shoe)
46611	90564-09184	Shim(For Parking Brake Shoe)
46611	90564-09185	Shim(For Parking Brake Shoe)
46611	90564-09186	Shim(For Parking Brake Shoe)
46612	47613-30040	Strut, Parking Brake Shoe Lever
46612	90501-12043	Spring, Compression(For Parking Brake Shoe Strut)
46613	47612-30050	Lever, Parking Brake Shoe, Lh
46616	47616-30050	Wire, Parking Brake, Rh
46616	90249-07074	Pin, Parking Brake Wire
46616	90213-04008	Washer, C(For Parking Brake Wire Pin)
46624	47603-30010	Bellcrank, Parking Brake, Rh
46624	90249-08075	Pin, Parking Brake Bellcrank
46624	90213-06013	Washer, Type C(For Parking Brake Shoe)
46624	90506-20001	Spring, Tension(For Parking Brake Bellcrank Return)
46624	90506-20002	Spring, Tension(For Parking Brake Bellcrank Return)
46625	47604-30010	Bellcrank, Parking Brake, Lh
46628	47628-30050	Bracket, Bellcrank, Rh
46628	47628-30060	Bracket, Bellcrank, Rh(For Parking Brake)
46629	47629-30040	Bracket, Bellcrank, Lh
46629	47629-30050	Bracket, Bellcrank, Lh(For Parking Brake)
46633	47633-30040	Boot, Parking Brake Bellcrank, Rh
46634	47634-30030	Boot, Parking Brake Bellcrank, Lh
46639	47639-30020	Bolt, Bellcrank Stopper
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9411040600	94110-40600	Nut, Rock

OEM	Part name	Category
42184-30030	Bolt(For Parking Brake Plate To Rear Axle Housing)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46503-30030	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46504-30030	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46540-30021	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46540-30022	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46550-30021	Shoe Assy, Parking Brake, Rh Or Center No.2	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46550-30022	Shoe Assy, Parking Brake, Rh Or Center No.2	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46580-30021	Shoe Assy, Parking Brake, Lh No.1	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
46580-30022	Shoe Assy, Parking Brake, Lh No.1	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47405-30040	Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47406-30040	Adjuster Sub-Assy, Parking Brake Shoe, Lh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47447-22010	Pin, Shoe Hold Down Spring	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47449-30030	Cup, Brake Shoe Hold Down	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47456-20030	Plate, Shoe Guide(For Parking Brake)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47456-22010	Plate, Parking Brake Shoe Guide	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47459-30010	Bolt, Parking Brake Shoe Guide Plate Set	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47603-30010	Bellcrank, Parking Brake, Rh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47604-30010	Bellcrank, Parking Brake, Lh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47611-30050	Lever, Parking Brake Shoe, Rh Or Center	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47612-30050	Lever, Parking Brake Shoe, Lh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47613-30040	Strut, Parking Brake Shoe Lever	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47616-30050	Wire, Parking Brake, Rh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47628-30050	Bracket, Bellcrank, Rh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47628-30060	Bracket, Bellcrank, Rh(For Parking Brake)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47629-30040	Bracket, Bellcrank, Lh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47629-30050	Bracket, Bellcrank, Lh(For Parking Brake)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47633-30040	Boot, Parking Brake Bellcrank, Rh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47634-30030	Boot, Parking Brake Bellcrank, Lh	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
47639-30020	Bolt, Bellcrank Stopper	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90179-10030	Nut(For Parking Brake Plate To Rear Axle Housing)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90213-04008	Washer, C(For Parking Brake Wire Pin)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90213-06013	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90213-07018	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90249-07074	Pin, Parking Brake Wire	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90249-08075	Pin, Parking Brake Bellcrank	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90501-12043	Spring, Compression(For Parking Brake Shoe Strut)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90501-16050	Spring, Brake Shoe Hold Down	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90506-12029	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90506-14033	Spring, Tension, No.2(For Parking Brake Shoe Return)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90506-20001	Spring, Tension(For Parking Brake Bellcrank Return)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90506-20002	Spring, Tension(For Parking Brake Bellcrank Return)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90506-20031	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90564-09184	Shim(For Parking Brake Shoe)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90564-09185	Shim(For Parking Brake Shoe)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
90564-09186	Shim(For Parking Brake Shoe)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
91611-B0816	Bolt	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
94110-40600	Nut, Rock	Parking Brake & Cable ([09.1979 - ] (7909- )ROY,SAL ; (7909- )SPE..TBO)
