MS112

Toyota CROWN-MAJESTA · 1979 · 5,594 parts · 176 categories
MS112 ×

← Back to categories

5,594 items

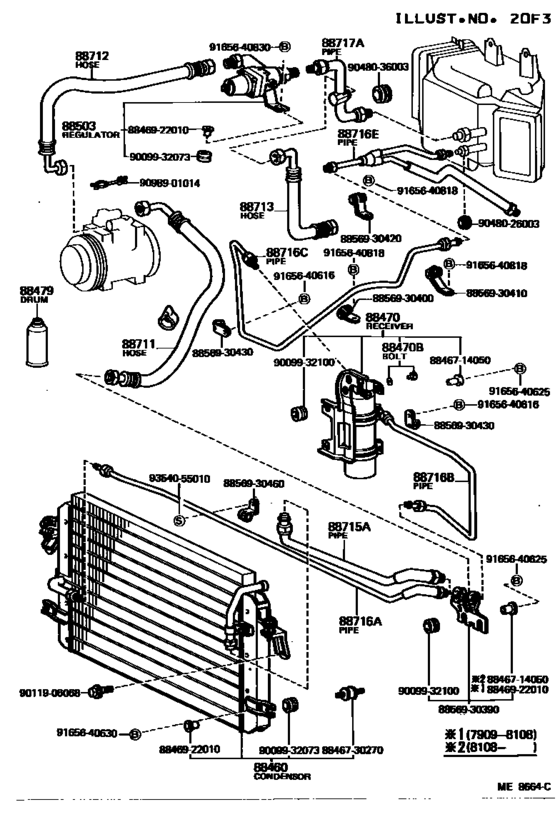

Heating & Air Conditioning - Cooler Piping ([09.1979 - ] (7909- )ROY) 60
#OEMPart name
88386 88726-30361 Pipe, Rear Cooler Refrigerant Liquid, A (From Condenser)
88386 88726-30550 Pipe, Rear Cooler Refrigerant Liquid, A (From Condenser)
88386 88726-30540 Pipe, Rear Cooler Refrigerant Liquid, D
88386 88721-30250 Pipe, Rear Cooler Refrigerant Liquid, E (To Cooler Unit)
88387 88727-30291 Pipe, Rr Cooler Refrigerant Suction, A (From Cooler Unit)
88387 88727-30301 Pipe, Rear Cooler Refrigerant Suction, D
88387 88727-30320 Pipe, Rear Cooler Refrigerant Suction, D
88387 88727-30440 Pipe, Rear Cooler Refrigerant Suction, D
88460 88460-30430 Condenser Assy, Cooler
88470 88470-30460 Receiver & Dryer Assy, Cooler
88470 90099-04579 Bolt, Fuse
88470 88475-12020 Bolt, Fuse
88479 90986-02002 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88503 88503-30310 Regulator Assy, Pressure
88711 88711-30490 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-30640 Hose, Cooler Refrigerant Suction, No.1
88713 88712-30520 Hose, Cooler Refrigerant Suction, No.2
88715 88715-30300 Pipe, Cooler Refrigerant Discharge, A
88716 88726-30290 Pipe, Cooler Refrigerant Liquid, A
88716 88726-30300 Pipe, Cooler Refrigerant Liquid, B
88716 88726-30310 Pipe, Cooler Refrigerant Liquid, C
88716 88726-30350 Pipe, Cooler Refrigerant Liquid, E
88717 88727-30260 Pipe, Cooler Refrigerant Suction, A
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846730270 88467-30270 Cushion, Cooler Condenser, No.1
8846922010 88469-22010 Collar(For Radiator)
8856930390 88569-30390 Clamp (for Cooler Relay)
8856930400 88569-30400 Clamp (for Cooler Relay)
8856930410 88569-30410 Clamp (for Cooler Relay)
8856930420 88569-30420 Clamp (for Cooler Relay)
8856930430 88569-30430 Clamp (for Cooler Relay)
8856930460 88569-30460 Clamp (for Cooler Relay)
8856930650 88569-30650 Clamp (for Cooler Relay)
8857830290 88578-30290 Packing, Cooler Pipe, No.1
8857830370 88578-30370 Packing, Air Purifier, No.1
8868830550 88688-30550 Bracket, Cooler Diaphragm
8871830611 88718-30611 Pipe, Cooler Refrigerant Suction, No.2
8871830621 88718-30621 Pipe, Cooler Refrigerant Suction, No.2
8871830820 88718-30820 Pipe, Cooler Refrigerant Suction, No.2
8871830840 88718-30840 Pipe, Cooler Refrigerant Suction, No.2
9009932073 90099-32073 Grommet
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9011906068 90119-06068 New Genuine Part
9011906068 90119-06311 BOLT
9048026003 90480-26003 Grommet (For Cooler Unit)
9048036003 90480-36003 Grommet (For Cooler Unit)
9048050006 90480-50006 New Genuine Part
9098901014 90989-01014 New Genuine Part
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9165640625 91656-40625 New Genuine Part
9165640625 91651-60625 New Genuine Part
9165640630 91656-40630 New Genuine Part
9165640630 91652-60630 New Genuine Part
9165640818 91656-40818 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818 91651-B0814 Bolt with washer
9165640830 91656-40830 Bolt (For Transfer Power Take-Off Cover)
9165640830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9354055010 93540-55010 SCREW
