Search › Model › MS111

MS111

Toyota CROWN-MAJESTA · 1979 · 4,303 parts · 163 categories
MS111 ×

← Back to categories

4,303 items

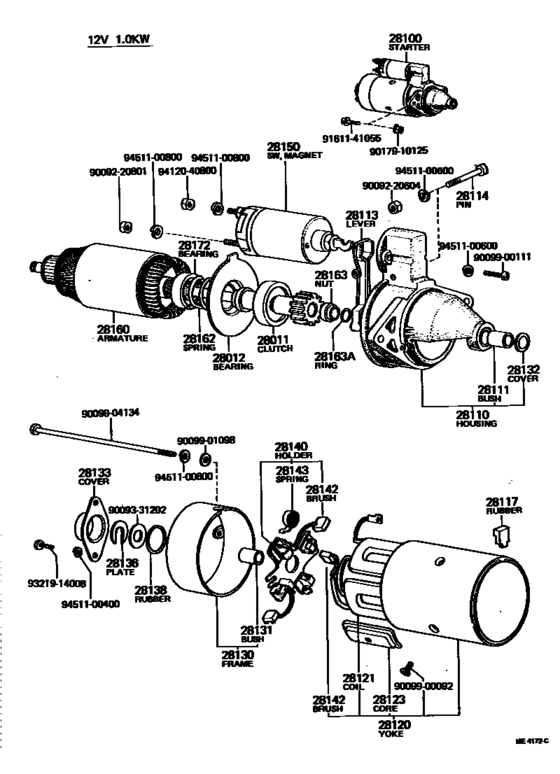

Starter ([09.1979 - 08.1981] (7909-8108)4M,5M#) 51
#OEMPart name
28011 28011-41020 Clutch Sub-Assy, Starter
28012 28126-33021 Bearing Sub-Assy, Center
28012 28126-33020 Bearing Sub-Assy, Center
28100 28100-42021 Starter Assy
28100 28100-42070 Starter Assy
28110 28110-41021 Housing Assy, Starter Drive
28111 28111-51011 Bush(For Starter Housing)
28113 28113-41011 Lever, Starter Pinion Drive
28114 28114-41011 Pin, Starter Drive Lever Set
28117 28117-41020 Rubber(For Starter Yoke)
28120 28120-42020 Yoke Assy, Starter
28121 28121-34070 Coil, Starter Field
28121 28121-42020 Coil, Starter Field
28123 28123-41020 Core, Starter Pole
28130 28130-41020 Frame Assy, Starter Commutator End
28131 28131-20010 Bush, Commutator End Frame
28131 90099-10039 Bush, Commutator End Frame
28131 90099-10040 Bush, Commutator End Frame
28132 28166-41011 Cover, Starter Bearing(For Drive Housing)
28133 28132-40010 Cover, Bearing(For End Frame)
28136 28136-40010 Plate, Starter Lock
28138 28138-40010 Rubber(For Starter Bearing Cover)
28138 28138-26030 Rubber(For Starter Bearing Cover)
28140 28140-41020 Holder Assy, Starter Brush
28142 28142-25011 Brush, Starter
28143 28143-40010 Spring, Starter Brush
28143 28143-40040 Spring, Starter Brush
28150 28150-60040 Switch Assy, Magnet Starter
28160 28160-41020 Armature Assy, Starter
28162 28162-41022 Spring, Starter Brake
28163 28163-40011 Nut Or Collar, Pinion Stop, Starter
28163 90099-07047 Ring, Snap(For Starter Pinion Stop Nut)
28172 28172-41021 Holder, Starter Spring
9009220604 90092-20604 Nut, Wire Adjusting, No.1
9009220604 94120-40600 Nut, Wire Adjusting, No.1
9009220801 90092-20801 New Genuine Part
9009220801 90099-05809 New Genuine Part
9009331202 90093-31202 Washer, No.2(For Governor Shaft Thrust)
9009900092 90099-00092 New Genuine Part
9009900111 90099-00111 New Genuine Part
9009901098 90099-01098 New Genuine Part
9009904134 90099-04134 New Genuine Part
9017910125 90179-10125 Nut(For Counter Gear Shaft)
9017910125 90179-10132 Nut
9161141055 91611-41055 Bolt(For Clutch Release Cylinder Setting)
9161141055 91611-61055 Bolt(For Clutch Release Cylinder Setting)
9321914008 93219-14008 Screw, W/washer(For Bearing Cover Setting)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451100400 94511-00400 WASHERSPRING
9451100600 94511-00600 Washer, Lock, No.2
9451100800 94511-00800 WASHERSPRING
