Search › Model › MS110

MS110

Toyota CROWN-MAJESTA · 1979 · 4,907 parts · 161 categories

4,907 items

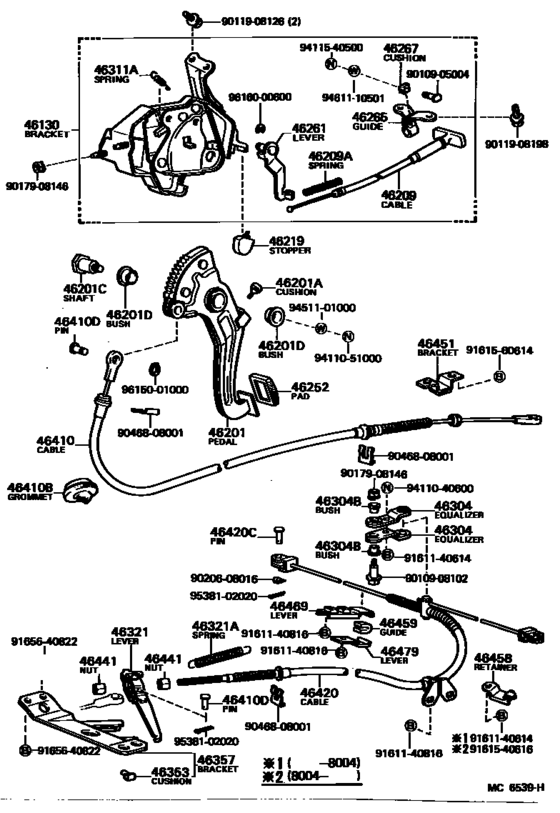

Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM) 53

#	OEM	Part name
46130	46130-30020	Bracket Assy, Parking Brake Pedal
46201	46201-30010	Pedal Sub-Assy, Parking Brake
46201	90541-01001	Cushion(For Parking Brake Pedal)
46201	90109-10033	Shaft, Pedal
46201	90386-16022	Bush, Control Link
46209	46209-30010	Cable Sub-Assy, Parking Brake Release
46209	90501-08030	Spring, Compression(For Parking Brake Release Cable)
46219	90541-07008	Cushion, Parking Pedal
46252	46252-20010	Pad, Parking Pedal
46261	46261-30020	Lever, Parking Brake Release Intermediate
46265	46265-30020	Guide, Parking Brake Release Rod
46267	46266-30010	Cushion, Release Rod Guide Intermediate
46304	46341-31010	Equalizer Sub-Assy, Parking Brake
46304	90385-12029	Bush(For Parking Brake Equalizer)
46311	90506-07007	Spring(For Parking Brake Release Intermediate Lever)
46321	46301-30140	Lever, Parking Brake Intermediate
46321	90506-20010	Spring, Tensiion(For Parking Brake Intermediate Lever) - TENSION(FOR INTERMEDIATE LEVER)
46353	46353-30020	Cushion, Intermediate Lever
46357	46359-30070	Bracket, Lever Support
46410	46410-30280	Cable Assy, Parking Brake, No.1
46410	90480-33003	Grommet(For Parking Brake Front Cable)
46410	90240-08028	Pin, W/hole (For Column Shift Gear Selecting Rod)
46410	90249-10012	Pin(For Parking Brake Front Cable)
46420	46420-30110	Cable Assy, Parking Brake, No.2
46441	46441-30030	Nut, Wire Adjusting, No.1
46451	46451-30071	Bracket, Cable Support
46458	46458-30042	Retainer, Cable
46459	46459-30010	Guide, Cable
46469	46469-30020	Lever, Cable Guide Support
9010905004	90109-05004	New Genuine Part
9010908102	90109-08102	NUT
9011908126	90119-08126	BOLT
9011908198	90119-08198	BOLT
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9020608016	90206-08016	Washer, Wave (For Low Speed Connecting Rod)
9046808001	90468-08001	CLIP
9161140614	91611-40614	Bolt, Hexagon(For Steering Column Bracket)
9161140614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161540616	91615-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161560614	91615-60614	Screw Or Bolt(for Valve Rocker Shaft Lock)
9165640822	91656-40822	New Genuine Part
9165640822	91651-60818	BOLTWWASHER
9411040600	94110-40600	Nut, Rock
9411051000	94110-51000	Nut(For Steering Center Arm)
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9461110501	94611-10501	New Genuine Part
9538102020	95381-02020	PIN
9615001000	96150-01000	Ring, Snap(For Over Center Adjusting Rod)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
46130-30020	Bracket Assy, Parking Brake Pedal	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46201-30010	Pedal Sub-Assy, Parking Brake	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46209-30010	Cable Sub-Assy, Parking Brake Release	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46252-20010	Pad, Parking Pedal	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46261-30020	Lever, Parking Brake Release Intermediate	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46265-30020	Guide, Parking Brake Release Rod	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46266-30010	Cushion, Release Rod Guide Intermediate	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46301-30140	Lever, Parking Brake Intermediate	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46341-31010	Equalizer Sub-Assy, Parking Brake	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46353-30020	Cushion, Intermediate Lever	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46359-30070	Bracket, Lever Support	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46410-30280	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46420-30110	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46441-30030	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46451-30071	Bracket, Cable Support	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46458-30042	Retainer, Cable	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46459-30010	Guide, Cable	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
46469-30020	Lever, Cable Guide Support	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90109-05004	New Genuine Part	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90109-08102	NUT	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90109-10033	Shaft, Pedal	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90119-08126	BOLT	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90119-08198	BOLT	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90179-08146	Nut	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90179-08204	Nut	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90206-08016	Washer, Wave (For Low Speed Connecting Rod)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90240-08028	Pin, W/hole (For Column Shift Gear Selecting Rod)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90249-10012	Pin(For Parking Brake Front Cable)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90385-12029	Bush(For Parking Brake Equalizer)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90386-16022	Bush, Control Link	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90468-08001	CLIP	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90480-33003	Grommet(For Parking Brake Front Cable)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90501-08030	Spring, Compression(For Parking Brake Release Cable)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90506-07007	Spring(For Parking Brake Release Intermediate Lever)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90506-20010	Spring, Tensiion(For Parking Brake Intermediate Lever) - TENSION(FOR INTERMEDIATE LEVER)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90541-01001	Cushion(For Parking Brake Pedal)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
90541-07008	Cushion, Parking Pedal	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91611-40614	Bolt, Hexagon(For Steering Column Bracket)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91611-B0816	Bolt	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91615-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91615-60614	Screw Or Bolt(for Valve Rocker Shaft Lock)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91651-60818	BOLTWWASHER	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
91656-40822	New Genuine Part	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
94110-40600	Nut, Rock	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
94110-51000	Nut(For Steering Center Arm)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
94511-01000	Washer(For Rear Drive Shaft)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
94611-10501	New Genuine Part	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
95381-02020	PIN	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
96150-01000	Ring, Snap(For Over Center Adjusting Rod)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Parking Brake & Cable ([09.1979 - ] (7909- )GS110,LS110,111,MS110,112..ATM)
