Search › Model › MK21S
MK21S

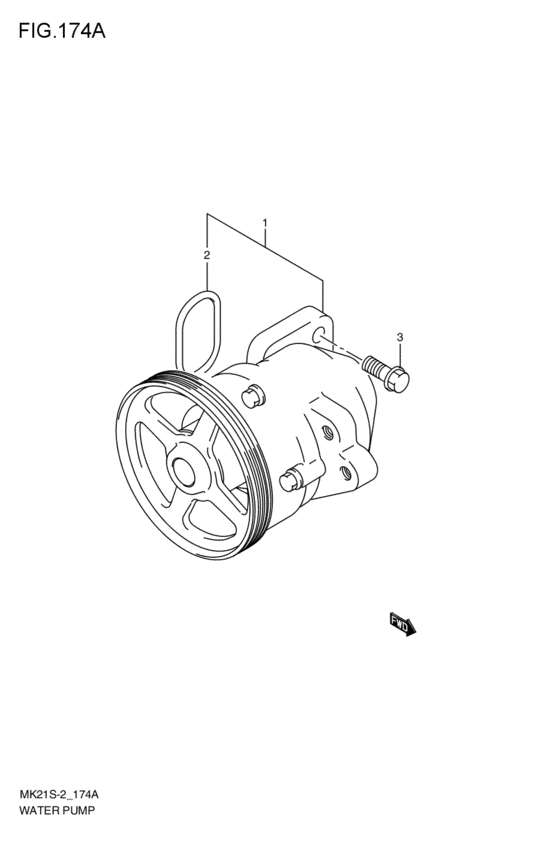

water pump (2009-06-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-58814-000 | ポンプアッシ,ウォータ |
| 1 | 17400-58818-000 | PUMP SET,WATER |
| 1 | 17400-58815-000 | ポンプアッシ,ウォータ |
| 2 | 17611-73G01-000 | O ring,water pump |
| 2 | 17611-73G03-000 | O-RING,WATER PUMP |
| 3 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover |
| OEM | Part name | Category |
|---|---|---|
| 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | water pump (2009-06-01~) |
| 17400-58814-000 | ポンプアッシ,ウォータ | water pump (2009-06-01~) |
| 17400-58815-000 | ポンプアッシ,ウォータ | water pump (2009-06-01~) |
| 17400-58818-000 | PUMP SET,WATER | water pump (2009-06-01~) |
| 17611-73G01-000 | O ring,water pump | water pump (2009-06-01~) |
| 17611-73G03-000 | O-RING,WATER PUMP | water pump (2009-06-01~) |
