Search › Model › MK21S
MK21S

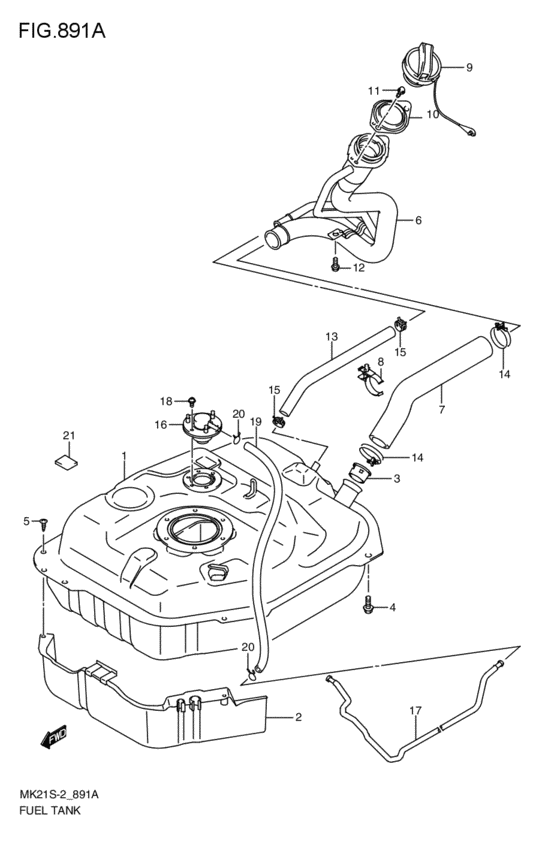

fuel tank (2009-06-01~) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 89101-82K50-000 | タンクアッシ,フューエル |
| 1 | 89101-82KA1-000 | New Genuine Part |
| 2 | 89191-82K00-000 | COVER,FUEL TANK,LOWER |
| 3 | 89270-75F00-000 | VALVE,FUEL TANK INLET |
| 4 | 09118-08161-000 | BOLT(8X25) |
| 5 | 03541-0616A-000 | SCREW |
| 6 | 89210-82K00-000 | ネック,フューエルフィラ |
| 7 | 89241-82K00-000 | HOSE,FUEL TANK FILLER |
| 8 | 89242-82K00-000 | CLAMP,FILLER&BREATHER HOSE |
| 8 | 89242-68L00-000 | CLAMP,FILLER&BREATHER HOSE |
| 9 | 89260-77K01-000 | CAP ASSY,FUEL FILLER |
| 10 | 89285-58J00-000 | PACKING,FUEL FILLER |
| 11 | 09116-05014-000 | BOLT(5X20) |
| 12 | 09116-06205-000 | BOLT(6X16) |
| 13 | 09355-13208-600 | HOSE(13X19.8X600) |
| 14 | 09400-45411-000 | CLAMP |
| 15 | 09401-18406-000 | CLIP |
| 16 | 89480-82K00-000 | VALVE,FUEL EVAP |
| 17 | 89483-82K00-000 | パイプ,フューエルエバポ |
| 18 | 09136-05045-000 | SCREW(5X10) |
| 19 | 09355-54128-00B | HOSE(5.6X12.4X2000) |
| 20 | 09401-11415-000 | CLIP |
| 21 | 89381-82K00-000 | PAD,FUEL TANK |
| OEM | Part name | Category |
|---|---|---|
| 03541-0616A-000 | SCREW | fuel tank (2009-06-01~) |
| 09116-05014-000 | BOLT(5X20) | fuel tank (2009-06-01~) |
| 09116-06205-000 | BOLT(6X16) | fuel tank (2009-06-01~) |
| 09118-08161-000 | BOLT(8X25) | fuel tank (2009-06-01~) |
| 09136-05045-000 | SCREW(5X10) | fuel tank (2009-06-01~) |
| 09355-13208-600 | HOSE(13X19.8X600) | fuel tank (2009-06-01~) |
| 09355-54128-00B | HOSE(5.6X12.4X2000) | fuel tank (2009-06-01~) |
| 09400-45411-000 | CLAMP | fuel tank (2009-06-01~) |
| 09401-11415-000 | CLIP | fuel tank (2009-06-01~) |
| 09401-18406-000 | CLIP | fuel tank (2009-06-01~) |
| 89101-82K50-000 | タンクアッシ,フューエル | fuel tank (2009-06-01~) |
| 89101-82KA1-000 | New Genuine Part | fuel tank (2009-06-01~) |
| 89191-82K00-000 | COVER,FUEL TANK,LOWER | fuel tank (2009-06-01~) |
| 89210-82K00-000 | ネック,フューエルフィラ | fuel tank (2009-06-01~) |
| 89241-82K00-000 | HOSE,FUEL TANK FILLER | fuel tank (2009-06-01~) |
| 89242-68L00-000 | CLAMP,FILLER&BREATHER HOSE | fuel tank (2009-06-01~) |
| 89242-82K00-000 | CLAMP,FILLER&BREATHER HOSE | fuel tank (2009-06-01~) |
| 89260-77K01-000 | CAP ASSY,FUEL FILLER | fuel tank (2009-06-01~) |
| 89270-75F00-000 | VALVE,FUEL TANK INLET | fuel tank (2009-06-01~) |
| 89285-58J00-000 | PACKING,FUEL FILLER | fuel tank (2009-06-01~) |
| 89381-82K00-000 | PAD,FUEL TANK | fuel tank (2009-06-01~) |
| 89480-82K00-000 | VALVE,FUEL EVAP | fuel tank (2009-06-01~) |
| 89483-82K00-000 | パイプ,フューエルエバポ | fuel tank (2009-06-01~) |
