| 01421-1025A-000 |
BOLT,STUD |

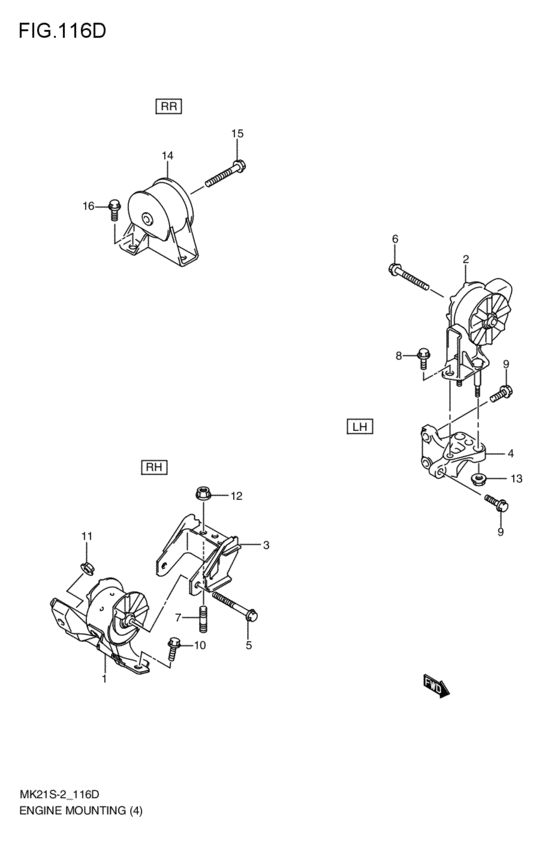

engine mounting (4WD:CVT; 2009-06-01~) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
engine mounting (4WD:CVT; 2009-06-01~) |
| 01550-1035A-000 |
Bolt - Bolt, fr fork upper |
engine mounting (4WD:CVT; 2009-06-01~) |
| 01551-1025A-000 |
Bolt |
engine mounting (4WD:CVT; 2009-06-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
engine mounting (4WD:CVT; 2009-06-01~) |
| 09113-10005-000 |
BOLT(10X90) |
engine mounting (4WD:CVT; 2009-06-01~) |
| 09113-10007-000 |
olt - 10X105 |
engine mounting (4WD:CVT; 2009-06-01~) |
| 11610-58JA1-000 |
MOUNTING,ENG,R |
engine mounting (4WD:CVT; 2009-06-01~) |
| 11620-58J21-000 |
マウンチング,エンジンレフト |
engine mounting (4WD:CVT; 2009-06-01~) |
| 11620-58J22-000 |
MOUNTING,ENG,L |
engine mounting (4WD:CVT; 2009-06-01~) |
| 11640-58JA1-000 |
ブラケット,エンジンマウンチングライト |
engine mounting (4WD:CVT; 2009-06-01~) |
| 11651-58J40-000 |
ブラケット,エンジンマウンチングレフト |
engine mounting (4WD:CVT; 2009-06-01~) |
| 11710-58J10-000 |
MOUNTING,ENG RR |
engine mounting (4WD:CVT; 2009-06-01~) |
| 11719-58J00-000 |
BOLT,MTG RR,10X100 |
engine mounting (4WD:CVT; 2009-06-01~) |
