| 01547-0655A-000 |
Bolt |

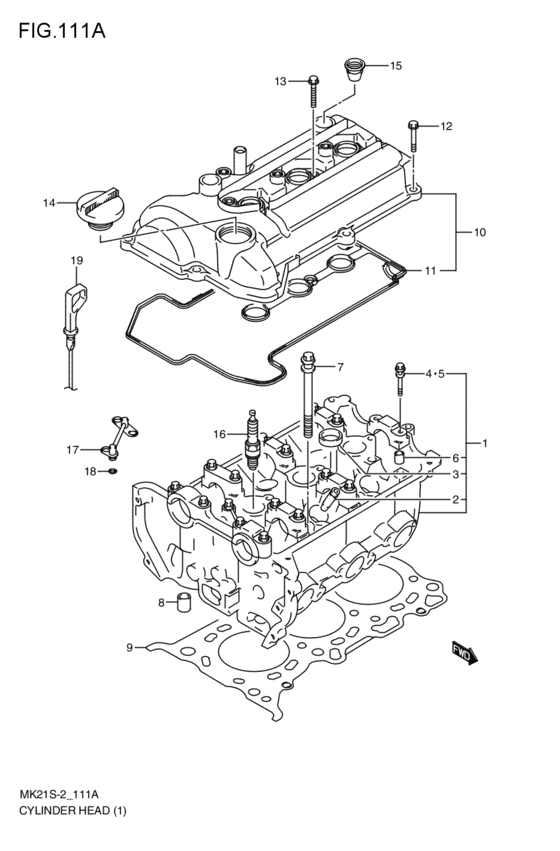

Cylinder head (4V; 2009-06-01~) |
| 09103-06221-000 |
BOLT(6X25) - Bolt, tensioner adjuster |
Cylinder head (4V; 2009-06-01~) |
| 09103-06250-000 |
BOLT(6X25) - Bolt, tensioner adjuster |
Cylinder head (4V; 2009-06-01~) |
| 09206-08001-000 |
PIN(8X11) |
Cylinder head (4V; 2009-06-01~) |
| 09206-13020-000 |
PIN(10.4X13X18) |
Cylinder head (4V; 2009-06-01~) |
| 09241-20006-000 |
PLUG - Plug, crank pin oil |
Cylinder head (4V; 2009-06-01~) |
| 09482-00607-000 |
PLUG,SPARK(LKR7BI8 NGK) |
Cylinder head (4V; 2009-06-01~) |
| 09482-00608-000 |
PLUG,SPARK(IXU22HPR DENSO) |
Cylinder head (4V; 2009-06-01~) |
| 11100-85K32-000 |
ヘッドアッシ,シリンダ |
Cylinder head (4V; 2009-06-01~) |
| 11115-73G01-001 |
GUIDE,VALVE |
Cylinder head (4V; 2009-06-01~) |
| 11117-73G00-000 |
BOLT,CYLINDER HEAD |
Cylinder head (4V; 2009-06-01~) |
| 11128-69G01-000 |
BOLT,CAMSHAFT HOUSING 6X39 |
Cylinder head (4V; 2009-06-01~) |
| 11128-78G70-000 |
BOLT,CAMSHAFT HOUSING 6X42 |
Cylinder head (4V; 2009-06-01~) |
| 11141-73G21-000 |
ガスケット,シリンダヘッド |
Cylinder head (4V; 2009-06-01~) |
| 11141-73G22-000 |
GASKET,CYL HEAD |
Cylinder head (4V; 2009-06-01~) |
| 11150-78G71-000 |
PIPE,CYLINDER HEAD OIL |
Cylinder head (4V; 2009-06-01~) |
| 11157-78G70-000 |
O-RING,OIL PIPE |
Cylinder head (4V; 2009-06-01~) |
| 11170-82K00-000 |
カバーアッシ,シリンダヘッド |
Cylinder head (4V; 2009-06-01~) |
| 11189-85K30-000 |
VALVE COVER GASKET |
Cylinder head (4V; 2009-06-01~) |
| 11197-58J50-000 |
シール,ブリーザ |
Cylinder head (4V; 2009-06-01~) |
| 11197-58J51-000 |
SEAL,BREATHER |
Cylinder head (4V; 2009-06-01~) |
| 16910-82K00-000 |
ゲージ,オイルレベル |
Cylinder head (4V; 2009-06-01~) |
| 16920-83G00-000 |
Cap,oil filler |
Cylinder head (4V; 2009-06-01~) |
| 16920-83G01-000 |
CAP OIL FILLER |
Cylinder head (4V; 2009-06-01~) |
| 16920-83G10-000 |
Cap comp,oil filler |
Cylinder head (4V; 2009-06-01~) |
