| 08316-1010B-000 |
NUT |

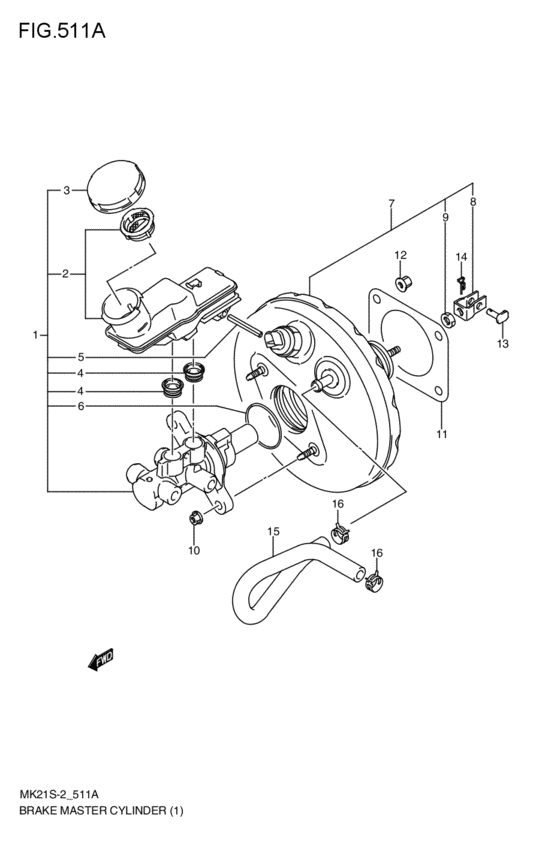

brakes master cylinder (4V; 2009-06-01~) |
| 08361-1508A-000 |
NUT |
brakes master cylinder (4V; 2009-06-01~) |
| 09159-08127-000 |
NUT |
brakes master cylinder (4V; 2009-06-01~) |
| 09200-08069-000 |
PIN |
brakes master cylinder (4V; 2009-06-01~) |
| 09385-08007-000 |
PIN,SNAP - Clip |
brakes master cylinder (4V; 2009-06-01~) |
| 09401-15404-000 |
CLIP |
brakes master cylinder (4V; 2009-06-01~) |
| 51010-85K00-000 |
ホース,ブレーキバキューム |
brakes master cylinder (4V; 2009-06-01~) |
| 51100-65K00-000 |
シリンダアッシ,ブレーキマスタ |
brakes master cylinder (4V; 2009-06-01~) |
| 51100-65K03-000 |
New Genuine Part |
brakes master cylinder (4V; 2009-06-01~) |
| 51132-82003-000 |
PACKING,BRAKE MASTER CYLINDER |
brakes master cylinder (4V; 2009-06-01~) |
| 51182-60D10-000 |
CLEVIS,CYLINDER PUSH ROD |
brakes master cylinder (4V; 2009-06-01~) |
| 51200-65K01-000 |
リザーバアッシ,マスタシリンダ |
brakes master cylinder (4V; 2009-06-01~) |
| 51220-75F51-000 |
Cap,reservoir |
brakes master cylinder (4V; 2009-06-01~) |
| 51220-77M00-000 |
CAP,RESERVOIR |
brakes master cylinder (4V; 2009-06-01~) |
| 51232-65J00-000 |
GROMMET,RSVR CONNECTOR |
brakes master cylinder (4V; 2009-06-01~) |
| 51233-65J00-000 |
PIN |
brakes master cylinder (4V; 2009-06-01~) |
| 51300-65K10-000 |
ブースタアッシ,ブレーキマスタ |
brakes master cylinder (4V; 2009-06-01~) |
| 51311-65J00-000 |
O-RING |
brakes master cylinder (4V; 2009-06-01~) |
