Search › Model › MHU48

MHU48

Toyota HIGHLANDER-KLUGER · 2007 · 4,505 parts · 192 categories

4,505 items

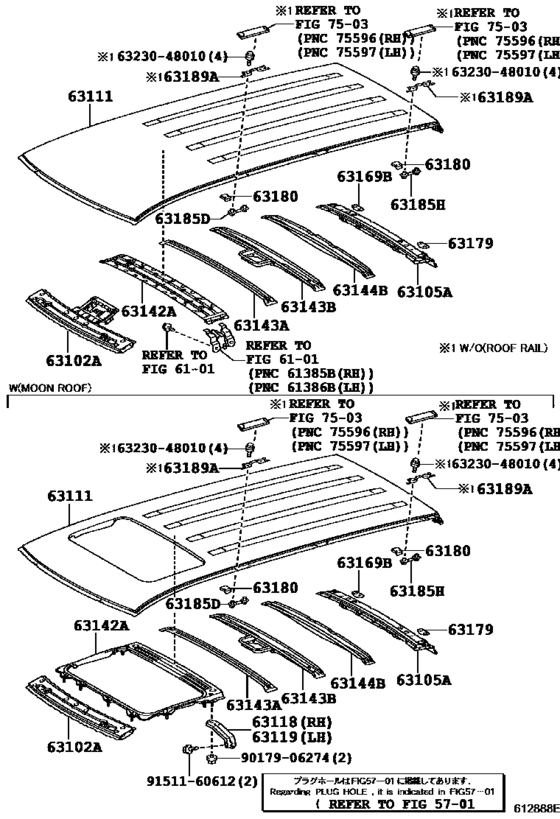

Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- )) 25

#	OEM	Part name
63102	63102-48906	Panel Sub-Assy, Windshield Header
63102	63102-48910	Panel Sub-Assy, Windshield Header
63102	63102-48907	Panel Sub-Assy, Windshield Header
63102	63102-48911	Panel Sub-Assy, Windshield Header
63105	63105-48050	Frame Sub-Assy, Back Door Opening
63111	63111-48110	Panel, Roof
63111	63111-48200	Panel, Roof
63111	63111-48120	Panel, Roof
63111	63111-48210	Panel, Roof
63118	63118-48090	Support, Roof Panel, Rh
63142	63103-48020	Reinforcement, Roof Panel, No.2
63142	63142-48040	Reinforcement, Roof Panel, No.2
63143	63143-48060	Reinforcement, Roof Panel
63143	63104-48020	Reinforcement, Roof Panel, No.3
63144	63144-48050	Reinforcement, Roof Panel, No.4
63169	63169-35020	Plate, Roof Panel Reinforcement, Rh
63179	63179-35020	Plate, Roof Panel Reinforcement, Lh
63180	63479-48010	Retainer, Roof Inner Rack
63180	63479-48020	Retainer, Roof Inner Rack
63185	63187-35020	Bracket, Roof Rack, Rear
63185	63187-48020	Bracket, Roof Rack
63189	63185-48010	Bracket, Roof Rack, Front
6323048010	63230-48010	Moulding Assy, Roof Window, Side
9017906274	90179-06274	Nut
9151160612	91511-60612	BOLT

OEM	Part name	Category
63102-48906	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63102-48907	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63102-48910	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63102-48911	Panel Sub-Assy, Windshield Header	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63103-48020	Reinforcement, Roof Panel, No.2	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63104-48020	Reinforcement, Roof Panel, No.3	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63105-48050	Frame Sub-Assy, Back Door Opening	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63111-48110	Panel, Roof	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63111-48120	Panel, Roof	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63111-48200	Panel, Roof	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63111-48210	Panel, Roof	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63118-48090	Support, Roof Panel, Rh	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63142-48040	Reinforcement, Roof Panel, No.2	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63143-48060	Reinforcement, Roof Panel	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63144-48050	Reinforcement, Roof Panel, No.4	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63169-35020	Plate, Roof Panel Reinforcement, Rh	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63179-35020	Plate, Roof Panel Reinforcement, Lh	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63185-48010	Bracket, Roof Rack, Front	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63187-35020	Bracket, Roof Rack, Rear	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63187-48020	Bracket, Roof Rack	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63230-48010	Moulding Assy, Roof Window, Side	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63479-48010	Retainer, Roof Inner Rack	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
63479-48020	Retainer, Roof Inner Rack	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
90179-06274	Nut	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))
91511-60612	BOLT	Roof Panel & Back Window Glass ([05.2007 - ] ROOF PANEL (0705- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 192
Collected: 2026-08-03
