| 16041-20410 |
Radiator Assy, No.2 |

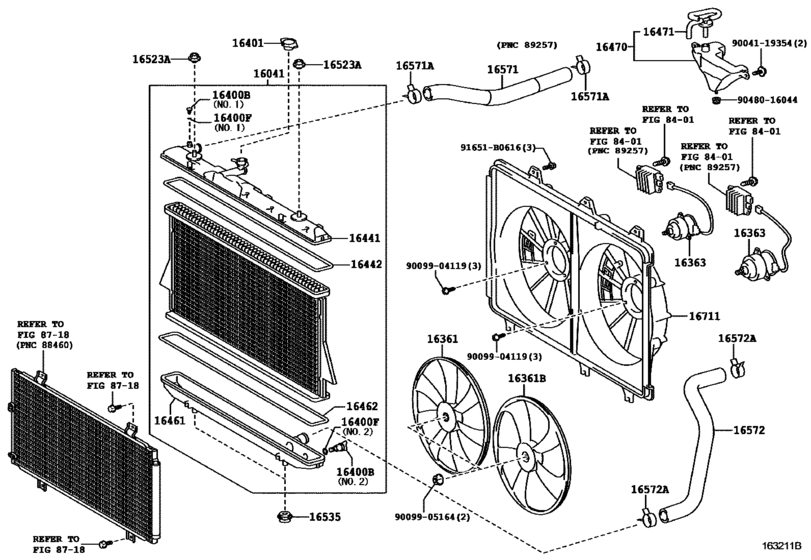

Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16261-20010 |
Hose, Water By-Pass, No.1 |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16264-20050 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16267-20050 |
Hose, Water By-Pass, No.3 |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16321-20030 |
Inlet, Water |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16322-20031 |
Pipe, Water Inlet |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16323-20020 |
Housing, Water Inlet |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16325-62010 |
Gasket, Water Inlet Housing, No.1 |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16331-20080 |
Outlet, Water |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16361-20250 |
Fan, No.2 |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16361-20260 |
Fan |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16363-20390 |
Motor, Cooling Fan |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16363-75020 |
MOTOR COOLING |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16401-31480 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16405-31060 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16417-28530 |
Plug, Radiator Drain Cock |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16418-20290 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16441-20410 |
Tank, Radiator, Upper |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16442-31410 |
Ring, O(For Radiator Upper Tank) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16461-20410 |
Tank, Radiator, Lower |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16470-31090 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16492-21050 |
Ring, O(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16523-20020 |
Cushion, Radiator Support |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16535-20030 |
Support, Radiator, Lower |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16571-20110 |
Hose, Radiator, Inlet |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16572-20140 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 16711-20190 |
Shroud, Fan |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 23322-87101 |
Plug, Radiator Drain Cock |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90041-19354 |
BOLT |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90080-10164 |
BOLT, FLANGE |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90099-04119 |
BOLT WASHER HEAD |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90099-05164 |
Nut |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90116-06070 |
BOLT |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90148-80017 |
New Genuine Part |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90148-80018 |
New Genuine Part |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90179-06080 |
NUT |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90179-08230 |
New Genuine Part |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90341-16094 |
Plug, W/head Taper Screw, No.1 |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90466-35001 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90467-28007 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90480-16044 |
Grommet |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 90916-03129 |
Thermostat |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 91511-B0616 |
BOLT, FLANGE |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 91621-J0814 |
Bolt (For Transmission Control Cable Bracket) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 91651-B0616 |
BOLT WWASHER |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 92122-60612 |
Bolt, Stud(For Engine Rear Oil Seal Retainer) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 94613-10800 |
Spacer (For Control Select Lever Support) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 96135-51300 |
Clamp, Hose |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 96137-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
| 96761-35031 |
Ring, O(For Water Inlet Pipe) |
Radiator & Water Outlet ([08.2007 - ] (0708- )3MZFE) |
