Search › Model › MHU48

MHU48

Toyota HIGHLANDER-KLUGER · 2007 · 4,505 parts · 192 categories

4,505 items

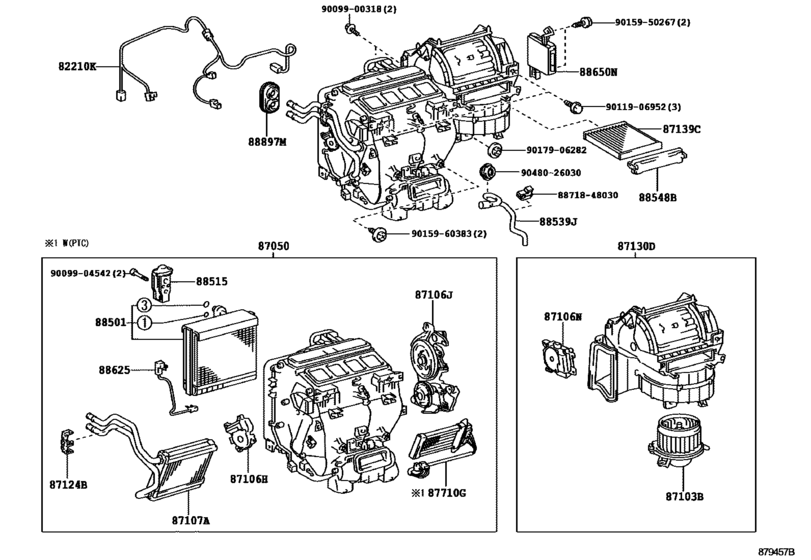

Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- )) 51

#	OEM	Part name
82210	82212-33021	Harness Assy, Air Conditioner
82210	82212-33022	Harness Assy, Air Conditioner
82210	82212-33031	Harness Assy, Air Conditioner
87050	87050-48300	Radiator Assy, Air Conditioner
87050	87050-48301	Radiator Assy, Air Conditioner
87050	87050-48310	Radiator Assy, Air Conditioner
87050	87050-48311	Radiator Assy, Air Conditioner
87050	87050-48320	Radiator Assy, Air Conditioner
87050	87050-48321	Radiator Assy, Air Conditioner
87050	87050-48330	Radiator Assy, Air Conditioner
87050	87050-48331	Radiator Assy, Air Conditioner
87103	87103-33090	Motor Sub-Assy, Blower W/fan
87103	87103-48080	Motor Sub-Assy, Blower W/fan
87106	87106-33260	Damper Servo Sub-Assy, Air Conditioner Radiator, No.2
87106	87106-33250	Servo Sub-Assy, Damper(For Mode)
87106	87106-33290	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
87106	87106-33270	Servo Sub-Assy, Damper - DAMPER(FOR RECIRCULATION)
87107	87107-33120	Unit Sub-Assy, Heater Radiator
87124	87124-33070	Clamp, Heater
87130	87130-33200	Blower Assy
87130	87130-28580	Blower Assy
87130	87130-48200	Blower Assy
87130	87130-48220	Blower Assy
87139	87139-50060	Filter, Clean Air (Charcoal)
87139	87139-50100	Clean Air Filter (Charcoal type)
87139	87139-52020	Filter, Clean Air
88501	88501-28410	Evaporator Sub-Assy, Cooler, No.1
88501	88501-48301	Evaporator Sub-Assy, Cooler, No.1
88501	88501-33180	Evaporator Sub-Assy, Cooler, No.1
88501	88501-33210	Evaporator Sub-Assy, Cooler, No.1
88501	88501-48300	Evaporator Sub-Assy, Cooler, No.1
88501	88501-48310	Evaporator Sub-Assy, Cooler, No.1
88501	88501-48311	Evaporator Sub-Assy, Cooler, No.1
88515	88515-33020	Valve, Cooler Expansion
88539	88539-48040	Hose, Drain Cooler
88548	88899-33040	Plate, Cover(For Air Filter)
88625	88625-33190	Thermistor, Cooler, No.1
88650	88650-48310	Amplifier Assy, Air Conditioner
88650	88650-48311	Amplifier Assy, Air Conditioner
88650	88650-48320	Amplifier Assy, Air Conditioner
88650	88650-48321	Amplifier Assy, Air Conditioner
88897	90480-01696	Grommet, Heater
8871848030	88718-48030	Pipe, Cooler Refrigerant Suction, No.2
9009900318	90099-00318	New Genuine Part
9009904542	90099-04542	Bolt(For Cooler Expansion Valve)
9011906952	90119-06952	New Genuine Part
9015950267	90159-50267	SCREW WWASHER
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9017906282	90179-06282	New Genuine Part
9048026030	90480-26030	Grommet (For Cooler Unit Drain Hose)

OEM	Part name	Category
82212-33021	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
82212-33022	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
82212-33031	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48300	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48301	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48310	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48311	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48320	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48321	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48330	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87050-48331	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87103-33090	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87103-48080	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87106-33250	Servo Sub-Assy, Damper(For Mode)	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87106-33260	Damper Servo Sub-Assy, Air Conditioner Radiator, No.2	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87106-33270	Servo Sub-Assy, Damper - DAMPER(FOR RECIRCULATION)	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87106-33290	Damper Servo Sub-Assy, Air Conditioner Radiator, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87107-33120	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87124-33070	Clamp, Heater	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87130-28580	Blower Assy	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87130-33200	Blower Assy	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87130-48200	Blower Assy	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87130-48220	Blower Assy	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87139-50060	Filter, Clean Air (Charcoal)	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87139-50100	Clean Air Filter (Charcoal type)	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
87139-52020	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88501-28410	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88501-33180	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88501-33210	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88501-48300	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88501-48301	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88501-48310	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88501-48311	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88515-33020	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88539-48040	Hose, Drain Cooler	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88625-33190	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88650-48310	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88650-48311	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88650-48320	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88650-48321	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88718-48030	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
88899-33040	Plate, Cover(For Air Filter)	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90099-00318	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90099-04542	Bolt(For Cooler Expansion Valve)	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90119-06952	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90159-50267	SCREW WWASHER	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90159-A0010	SCREW WWASHER TAPP	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90179-06282	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90480-01696	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
90480-26030	Grommet (For Cooler Unit Drain Hose)	Heating & Air Conditioning - Cooler Unit ([05.2007 - ] FRONT,AUTO AIR CONDITIONER (0705- ))
