MHU48

Toyota HIGHLANDER-KLUGER · 2007 · 4,505 parts · 192 categories
MHU48 ×

← Back to categories

4,505 items

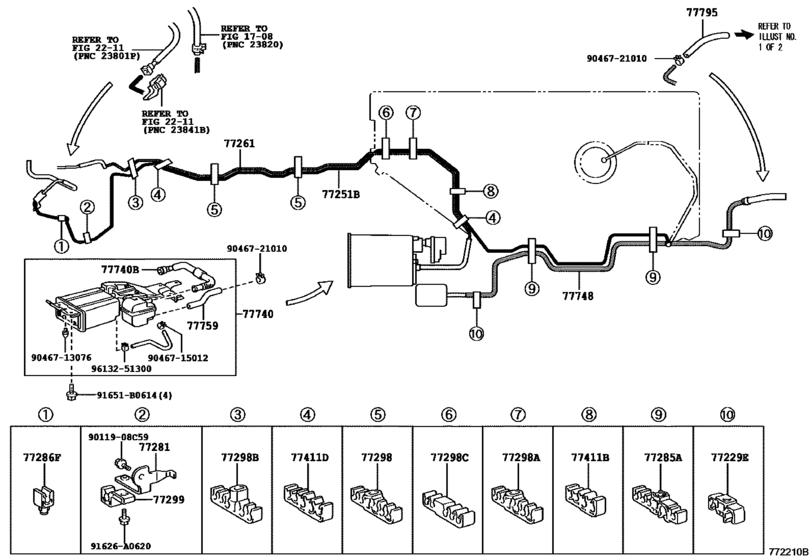

Fuel Tank & Tube ([05.2007 - 08.2010] FUEL TUBE (0705-1008)MHU48) 26
#OEMPart name
77229 77229-48040 Clamp, Breather Tube
77251 77251-48160 Tube, Fuel Main
77261 77261-48150 Tube Sub-Assy, Fuel Emission
77281 77281-48050 Bracket, Fuel Main Tube, No.1
77285 77285-48030 Clamp, Fuel Tube, No.1
77286 77286-48060 Clamp, Fuel Tube, No.2
77298 77298-48050 Clamp, Fuel Tube, No.4
77298 77298-48020 Clamp, Fuel Tube, No.4
77298 77298-48060 Clamp, Fuel Tube, No.4
77298 77298-68030 Clamp, Fuel Tube, No.1
77299 77299-48010 Clamp, Fuel Tube, No.5
77411 77411-48030 Support, Fuel Tube Grommet, No.1
77411 77411-48040 Support, Fuel Tube Grommet, No.1
77411 77411-48041 Support, Fuel Tube Grommet, No.1
77740 77740-48140 Canister Assy, Charcoal
77740 77404-48060 Hose, Fuel, No.2(For Charcoal Canister)
77748 77748-48030 Pipe, Charcoal Canister, No.2
77759 77759-48040 Hose, Charcoal Canister
77795 77795-48030 Hose, Charcoal Canister Outlet, No.2
91626 91626-A0620 New Genuine Part
91651 91651-B0614 BOLT WWASHER
9011908 90119-08C59 New Genuine Part
9046713076 90467-13076 New Genuine Part
9046715012 90467-15012 Clip Or Clamp(For Ventilation Hose)
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
