Search › Model › MHU33

MHU33

Lexus RX · 2005 · 4,691 parts · 180 categories
MHU33 ×

← Back to categories

4,691 items

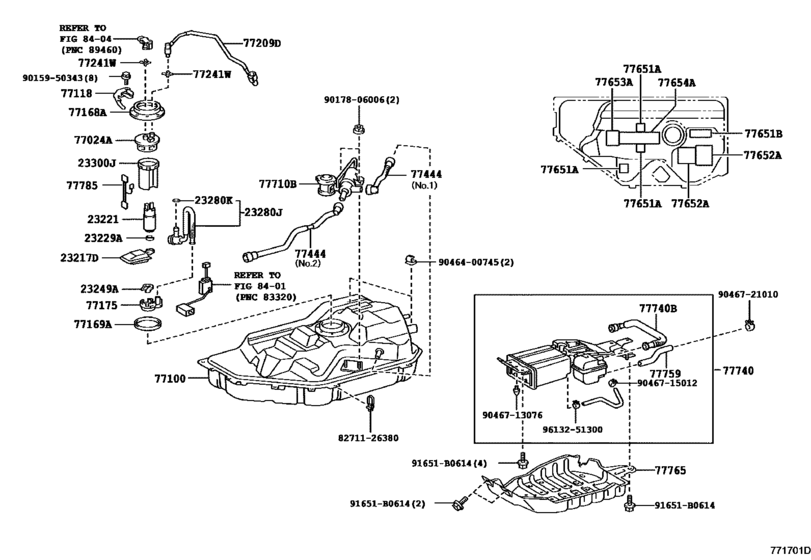

Fuel Tank & Tube ([03.2005 - ] FUEL TANK (0503- )) 95
#OEMPart name
23217 23217-20060 Filter, Fuel Pump
23221 23221-20030 Pump Assy, Fuel
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23249 23249-46180 Rubber, Cushion(For Fuel Pump)
23280 23020-20010 Regulator Assy, Fuel Pressure
23280 90301-07020 Ring, O(For Fuel Pressure Regulator)
23300 23300-21010 Filter Assy, Fuel
77024 77024-48020 Plate Sub-Assy, Fuel Suction
77030 77030-48020 Lock Assy, Fuel Lid W/motor - FUEL FILLER OPENING LID
77037 77037-48010 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-48110 Tank Assy, Fuel
77100 77001-48112 Tank Assy, Fuel
77118 77161-48020 Plate, Fuel Tank Side, No.3
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-33030 Gasket, Fuel Suction Tube Set
77175 77175-30050 Support, Fuel Suction, No.2
77201 77201-48150 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-48151 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-48040 Tube Sub-Assy, Fuel Tank Main
77209 77209-48050 Connector Sub-Assy, Fuel Tube
77216 77216-48030 Support, Fuel Tank Filler Pipe, No.1
77217 77217-48050 Support, Fuel Tank Filler Pipe, No.2
77218 77218-48060 Plate, Fuel Inlet Pipe Set
77219 77219-48020 Cover, Fuel Tank Filler Pipe
77225 77203-48010 Tube, Fuel Tank Breather, No.1
77226 77226-48030 Tube, Fuel Tank Breather, No.6
77229 77229-48030 Clamp, Breather Tube
77234 77234-48010 Seal, Fuel Tube Connector
77241 77241-33011 Clip, Tube Joint
77248 77248-48010 Holder, Fuel Tank Filler Pipe Cover
77272 77272-48020 Support, Breather Tube, No.1
77273 77273-48020 Support, Breather Tube, No.2
77277 77277-48040 Protector, Fuel Tank Filler Pipe
77278 77278-48010 Protector, Fuel Tank Filler Pipe, No.2
77281 77281-48040 Clamp, Fuel Filler Pipe
77291 77291-48020 Shield, Fuel Tank Filler Pipe
77292 77292-48020 Shield, Fuel Tank Filler Pipe, No.2
77297 77297-48010 Connector, Fuel Tube
77310 77300-48010 Cap Assy, Fuel Tank
77316 77316-48010 Gasket, Fuel Tank Cap
77316 77316-47020 Gasket, Fuel Tank Cap
77330 77330-48010 Cap Assy, Fuel Lid Switch
77350 77350-48050 Lid Assy, Fuel Filler Opening
77350 77350-48051 Lid Assy, Fuel Filler Opening
77366 77360-21010 Spring, Fuel Filler Opening Lid Hinge
77366 77360-35010 Spring, Fuel Filler Opening Lid Hinge
77373 77373-48010 Nut, Fuel Lid Lock
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-33010 Ring, Fuel Inlet Box
77444 77404-48040 Hose Sub-Assy, Fuel Tank Vent
77444 77404-48050 Hose, Fuel Tank Vent
77444 77404-48090 Hose, Fuel Tank Vent
77601 77601-48050 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-48050 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-48080 Protector Sub-Assy, Fuel Tank, No.1
77651 77651-12070 Cushion, Fuel Tank, No.1
77651 77651-44010 Packing, Fuel Tank Bracket
77652 77652-20110 Cushion, Fuel Tank, No.2
77653 77653-36010 Cushion, Fuel Tank, No.3
77654 77651-26070 Cushion, Fuel Tank, No.1
77681 77616-48020 Seat, Fuel Tank Band, Rh
77682 77616-48030 Seat, Fuel Tank Band, Lh
77710 77710-48020 Valve Assy, Fuel Tank Solenoid Main
77740 77740-48140 Canister Assy, Charcoal
77740 77404-48060 Hose, Fuel, No.2(For Charcoal Canister)
77759 77759-48040 Hose, Charcoal Canister
77765 77765-48030 Protector, Charcoal Canister
77785 77785-52020 Harness, Fuel Pump
91631 91631-B0820 BOLT WWASHER
91651 91651-B0614 BOLT WWASHER
8271126380 82711-26380 Wire, Fuse To Fuse(for Combustion Heater)
9011906347 90119-06347 New Genuine Part
9011906430 90119-06430 BOLT WWASHER
9011906442 90119-06442 BOLT WWASHER
9011906767 90119-06767 Bolt, W/washer(For Engine Under Cover)
9011910502 90119-10502 BOLT WWASHER
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9015960561 90159-60561 SCREW WWASHER
9017806006 90178-06006 NUT FLANGE
9017906156 90179-06156 Nut (For Transmission Control Cable)
9018906006 90189-06006 Grommet
9018906013 90189-06013 CLIP
9026906017 90269-06017 RIVET
9046400745 90464-00745 Clamp, Fuel Tube, No.4
9046713076 90467-13076 New Genuine Part
9046715012 90467-15012 Clip Or Clamp(For Ventilation Hose)
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9048010024 90480-10024 Clip, No.2(For Floor Under Cover)
9056110021 90561-10021 SPACER
9415080600 94150-80600 NUT FLANGE
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
Source
Public OEM parts-catalog data
Variants
1 / 1
Category
180
Collected
2026-07-30
