Search › Model › MHU33

MHU33

Lexus RX · 2005 · 4,691 parts · 180 categories

4,691 items

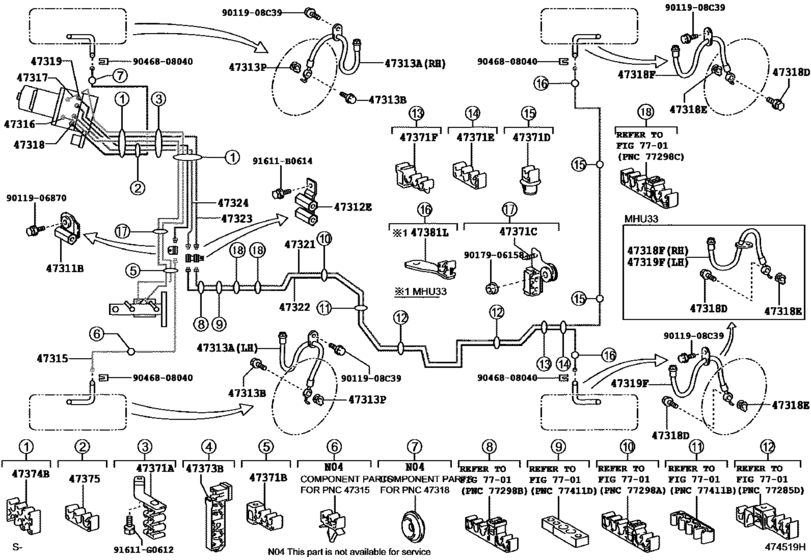

Brake Tube & Clamp ([03.2005 - ] (0503- )) 48

#	OEM	Part name
31478	31478-30010	Bleeder Plug Cap
44510	44050-48190	Actuator Assy, Brake
44510	44050-48191	Actuator Assy, Brake
44545	44545-63010	Bolt, Union(For Brake Actuator)
44546	44546-58010	Cushion, Brake Actuator Bolt
44590	44590-48120	Bracket Assy, Brake Actuator
44590	44590-48130	Bracket Assy, Brake Actuator
47311	90412-10261	Way, No.1(For Front Brake Tube)
47312	90412-10246	Way, No.2(For Front Brake Tube)
47313	90947-02D50	Hose, Flexible, No.1(For Front)
47313	90947-02F64	Hose, Flexible, No.1(For Front)
47313	90947-02D51	Hose, Flexible, No.1(For Front)
47313	90947-02F65	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47315	47315-48120	Tube, Front Brake, No.5
47316	47316-48230	Tube, Front Brake, No.6
47317	47317-48230	Tube, Front Brake, No.7
47318	47318-48150	Tube, Front Brake, No.8
47318	90947-02D52	Hose, Flexible(For Rear Rh)
47318	90947-02F73	Hose, Flexible(For Rear Rh)
47319	47319-48210	Tube, Front Brake, No.9
47319	90947-02D53	Hose, Flexible(For Rear Lh)
47319	90947-02F74	Hose, Flexible(For Rear Lh)
47321	47321-48050	Tube, Rear Brake, No.1
47322	47322-48060	Tube, Rear Brake, No.2
47323	47323-48230	Tube, Rear Brake, No.3
47324	47324-48230	Tube, Rear Brake, No.4
47371	90949-04033	Clamp, Brake Tube, No.5 - BRAKE TUBE, NO.1
47371	90949-01D21	Clamp, Brake Tube, No.3 - BRAKE TUBE, NO.6
47371	90949-04038	Clamp, Brake Tube, No.7
47371	90949-01C74	Clamp, Brake Tube, No.8
47371	90464-00857	Clamp, Brake Tube, No.1
47371	90949-01D05	Clamp, Brake Tube, No.7
47373	90949-01D37	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.3
47374	90464-00880	Clamp, Brake Tube, No.1
47381	90949-04028	Clamp, Brake Tube, No.2
47547	47547-22020	Plug, Bleeder(For Rear Disc Brake)
47997	47997-48010	Label, Brake Booster Accumlator Caution, No.1
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
91611	91611-G0612	Bolt
9011908	90119-08C39	New Genuine Part
9011906870	90119-06870	BOLT WWASHER
9011906952	90119-06952	New Genuine Part
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017908249	90179-08249	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
31478-30010	Bleeder Plug Cap	Brake Tube & Clamp ([03.2005 - ] (0503- ))
44050-48190	Actuator Assy, Brake	Brake Tube & Clamp ([03.2005 - ] (0503- ))
44050-48191	Actuator Assy, Brake	Brake Tube & Clamp ([03.2005 - ] (0503- ))
44545-63010	Bolt, Union(For Brake Actuator)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
44546-58010	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([03.2005 - ] (0503- ))
44590-48120	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([03.2005 - ] (0503- ))
44590-48130	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47315-48120	Tube, Front Brake, No.5	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47316-48230	Tube, Front Brake, No.6	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47317-48230	Tube, Front Brake, No.7	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47318-48150	Tube, Front Brake, No.8	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47319-48210	Tube, Front Brake, No.9	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47321-48050	Tube, Rear Brake, No.1	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47322-48060	Tube, Rear Brake, No.2	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47323-48230	Tube, Rear Brake, No.3	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47324-48230	Tube, Rear Brake, No.4	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47547-22020	Plug, Bleeder(For Rear Disc Brake)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
47997-48010	Label, Brake Booster Accumlator Caution, No.1	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90119-06870	BOLT WWASHER	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90119-06952	New Genuine Part	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90119-08C39	New Genuine Part	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90179-06074	Nut(For Suspension Control Oil Cooler)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90179-08249	New Genuine Part	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90412-10246	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90412-10261	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90464-00880	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90468-08040	CLIP	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02D50	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02D51	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02D52	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02D53	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02F64	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02F65	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02F73	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90947-02F74	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90949-01C74	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90949-01D05	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90949-01D21	Clamp, Brake Tube, No.3 - BRAKE TUBE, NO.6	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90949-01D37	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.3	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90949-04028	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90949-04033	Clamp, Brake Tube, No.5 - BRAKE TUBE, NO.1	Brake Tube & Clamp ([03.2005 - ] (0503- ))
90949-04038	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([03.2005 - ] (0503- ))
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([03.2005 - ] (0503- ))
91611-G0612	Bolt	Brake Tube & Clamp ([03.2005 - ] (0503- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 180
Collected: 2026-07-30
