Search › Model › MHU28
MHU28

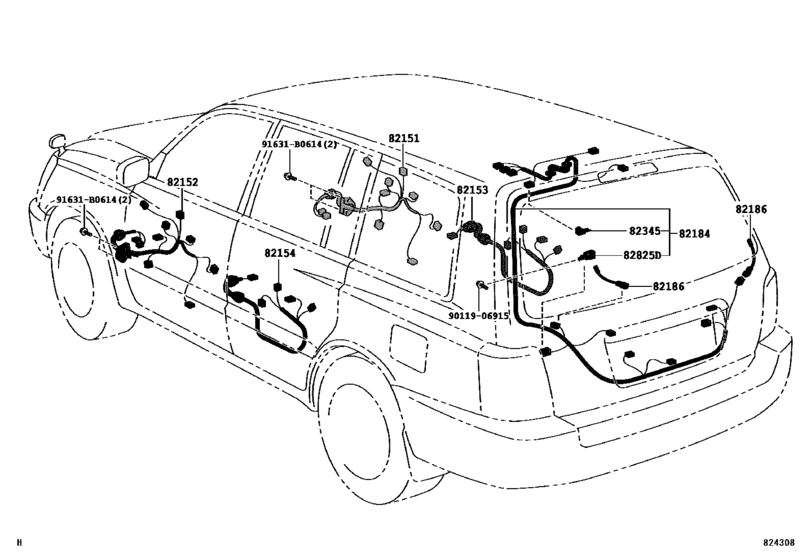

Wiring & Clamp ([03.2005 - ] DOOR (0503- )) 10
| # | OEM | Part name |
|---|---|---|
| 82151 | 82151-48100 | Wire, Front Door, Rh |
| 82152 | 82152-48100 | Wire, Front Door, Lh |
| 82153 | 82153-48040 | Wire, Rear Door, No.1 |
| 82184 | 82184-48170 | Wire, Back Door, No.1 |
| 82184 | 82184-48180 | Wire, Back Door, No.1 |
| 82186 | 82186-48010 | Wire, Rear Window, No.1 |
| 82345 | 82345-32010 | Diode |
| 82825 | 82824-20130 | Connector, Wiring Harness |
| 91631 | 91631-B0614 | BOLT WWASHER |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82151-48100 | Wire, Front Door, Rh | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 82152-48100 | Wire, Front Door, Lh | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 82153-48040 | Wire, Rear Door, No.1 | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 82184-48170 | Wire, Back Door, No.1 | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 82184-48180 | Wire, Back Door, No.1 | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 82186-48010 | Wire, Rear Window, No.1 | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 82345-32010 | Diode | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 82824-20130 | Connector, Wiring Harness | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
| 91631-B0614 | BOLT WWASHER | Wiring & Clamp ([03.2005 - ] DOOR (0503- )) |
