| 47101-48100 |
Pedal Sub-Assy, Brake |

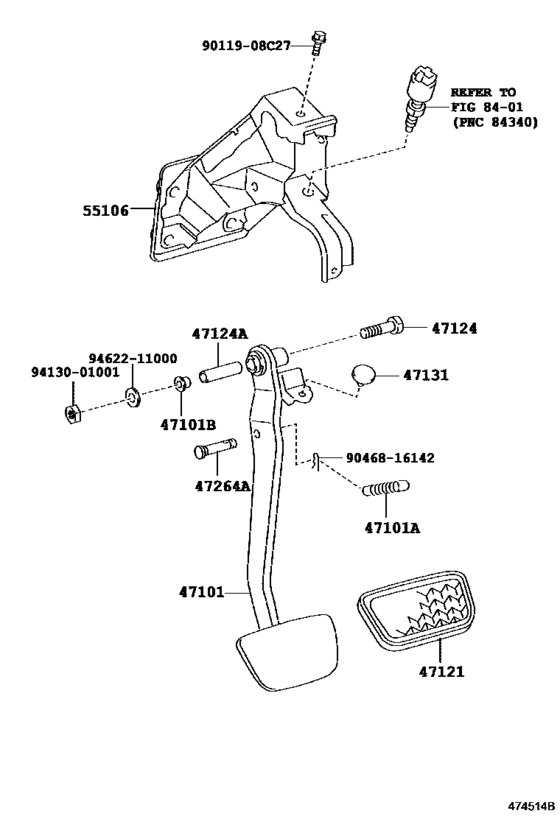

Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 47121-50020 |
Pad, Brake Pedal |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 55106-48152 |
Support Sub-Assy, Brake Pedal |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90101-10164 |
Shaft, Clutch Pedal |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90119-08C27 |
BOLT WWASHER |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90249-10064 |
Pin(For Push Rod) |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90387-10105 |
Collar, Clutch Pedal Shaft |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90468-16142 |
Clip(For Push Rod Clevis Pin) |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90507-14052 |
Spring(For Brake Pedal Return) |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 94130-01001 |
Nut(For Clutch Pedal Stopper) |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
| 94622-11000 |
WASHER |
Brake Pedal & Bracket ([03.2005 - ] (0503- )) |
