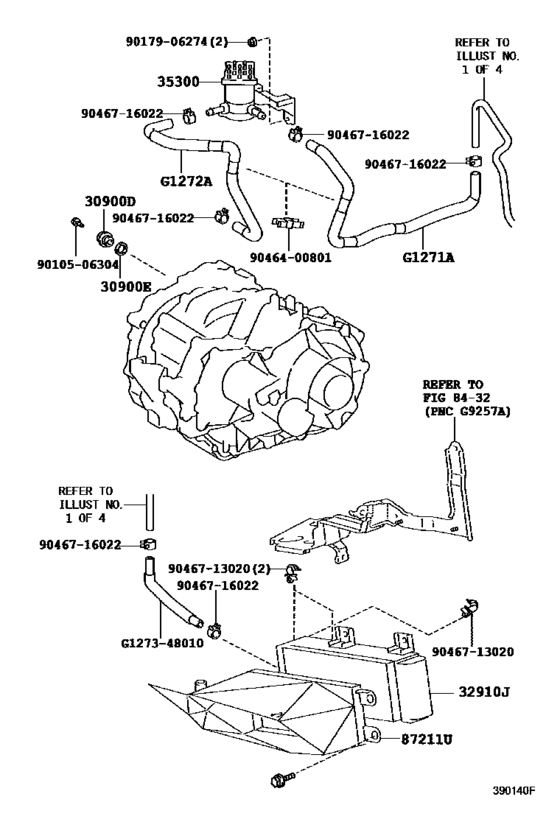

| 32910-48070 |
Cooler Assy, Oil, No.1 |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 35300-48010 |
Pump Assy, Oil W/motor - OIL W/MOTOR |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 35300-48011 |
Pump Assy, Oil W/motor - OIL W/MOTOR |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 87211-48130 |
Duct, Air(For Oil Cooler) |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90105-06304 |
Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90179-06274 |
Nut |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90341-18062 |
Plug, W/head Straight Screw(For Transaxle Housing & Case) |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90430-18008 |
Gasket |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90430-T0021 |
Gasket(For Manual Transmission Filler Plug) |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90464-00801 |
New Genuine Part |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90467-13020 |
Clamp Or Clip(For Radiator Reserve Tank Hose No.2) |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
| 90467-16022 |
Clip(For Water Inlet Hose) |
Transaxle Assy, Hv Or Fcv ([03.2005 - ] W(OIL COOLER) (0503- )) |
