MH23S

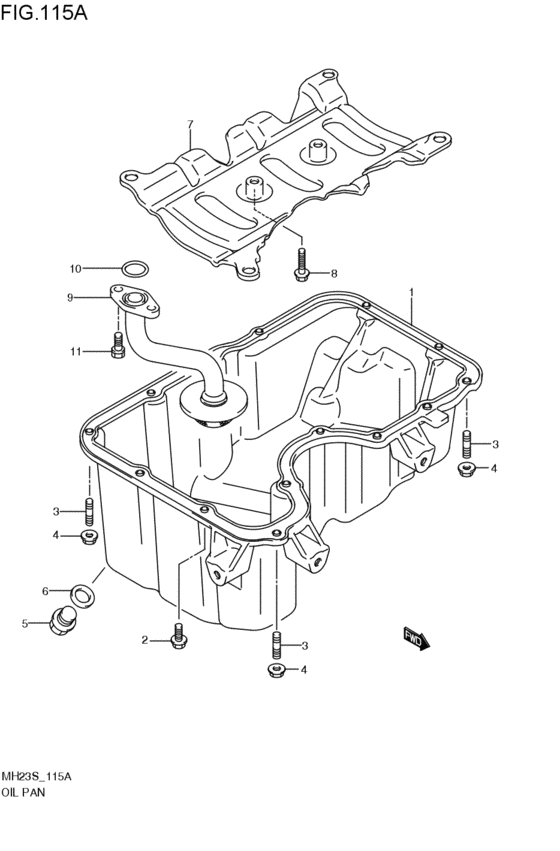

oil pan (2008-06-01~) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 11511-58J03-000 | PAN,OIL |
| 2 | 09103-06283-000 | BOLT(6X16) |
| 3 | 09108-06130-000 | BOLT,STUD |
| 4 | 08316-1006A-000 | NUT |
| 5 | 11518-63J10-000 | Plug,Oil Drain |
| 6 | 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union |
| 7 | 11540-58J01-000 | プレート,オイルバッフル |
| 8 | 01550-0625A-000 | Bolt |
| 9 | 16520-58J00-000 | ストレーナ,オイルポンプ |
| 10 | 09280-16005-000 | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe |
| 11 | 01570-0616A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0625A-000 | Bolt | oil pan (2008-06-01~) |
| 01570-0616A-000 | Bolt | oil pan (2008-06-01~) |
| 08316-1006A-000 | NUT | oil pan (2008-06-01~) |
| 09103-06283-000 | BOLT(6X16) | oil pan (2008-06-01~) |
| 09108-06130-000 | BOLT,STUD | oil pan (2008-06-01~) |
| 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union | oil pan (2008-06-01~) |
| 09280-16005-000 | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe | oil pan (2008-06-01~) |
| 11511-58J03-000 | PAN,OIL | oil pan (2008-06-01~) |
| 11518-63J10-000 | Plug,Oil Drain | oil pan (2008-06-01~) |
| 11540-58J01-000 | プレート,オイルバッフル | oil pan (2008-06-01~) |
| 16520-58J00-000 | ストレーナ,オイルポンプ | oil pan (2008-06-01~) |
