Search › Model › MH23S

MH23S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2008 · 2,210 parts · 100 categories

2,210 items

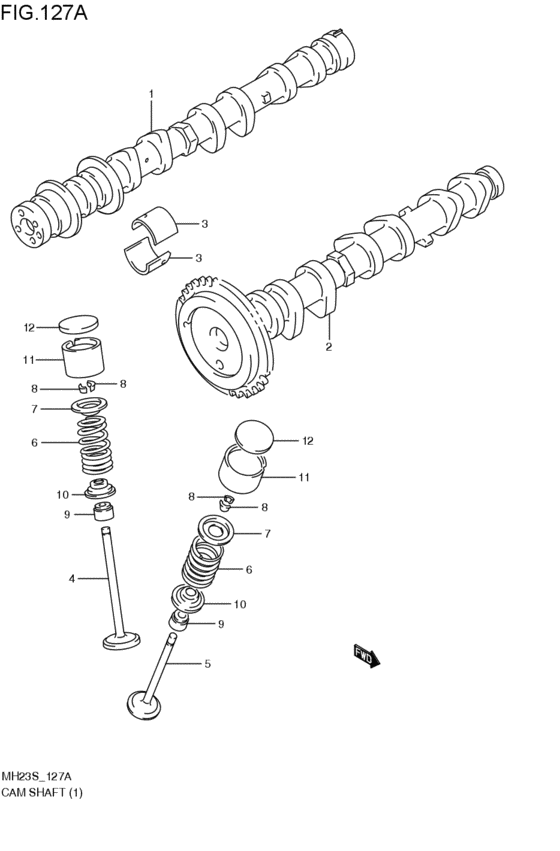

camshaft / valve (4V; 2008-06-01~) 55

#	OEM	Part name
1	12710-85K30-000	カムシャフト,インテーク
1	12710-85K31-000	カムシャフト,インテーク
2	12720-85K30-000	カムシャフト,エキゾースト
2	12720-85K31-000	CAMSHAFT,EXH
3	12737-78G80-000	BEARING,CAMSHAFT
4	12911-83G01-000	Valve,intake
5	12915-73G20-000	Valve,exhaust - Valve, exhaust
6	12921-58J00-000	SPRING,VALVE
7	12931-78G00-000	RETAINER,VALVE SPRING - Retainer, valve spring
8	12932-24400-000	COTTER,VALVE
9	09289-05012-000	SEAL,OIL(5.5X11.5X9.3)
10	12933-51E00-000	SEAT,VALVE SPRING - Seat, valve spring
11	12891-65H00-000	Tappet
12	12892-65H00-218	SHIM,TAPPET T:2.18
12	12892-65H00-220	SHIM,TAPPET T:2.20
12	12892-65H00-222	SHIM,TAPPET T:2.22
12	12892-65H00-224	SHIM,TAPPET T:2.24
12	12892-65H00-226	SHIM,TAPPET T:2.26
12	12892-65H00-228	SHIM,TAPPET T:2.28
12	12892-65H00-230	SHIM,TAPPET T:2.30
12	12892-65H00-254	SHIM,TAPPET T:2.54
12	12892-65H00-256	SHIM,TAPPET T:2.56
12	12892-65H00-258	SHIM,TAPPET T:2.58
12	12892-65H00-260	SHIM,TAPPET T:2.60
12	12892-65H00-262	SHIM,TAPPET T:2.62
12	12892-65H00-264	SHIM,TAPPET T:2.64
12	12892-65H00-266	SHIM,TAPPET T:2.66
12	12892-65H00-268	SHIM,TAPPET T:2.68
12	12892-65H00-270	SHIM,TAPPET T:2.70
12	12892-65H00-272	SHIM,TAPPET T:2.72
12	12892-65H00-274	SHIM,TAPPET T:2.74
12	12892-65H00-276	SHIM,TAPPET T:2.76
12	12892-65H00-278	SHIM,TAPPET T:2.78
12	12892-65H00-280	SHIM,TAPPET T:2.80
12	12892-65H00-282	SHIM,TAPPET T:2.82
12	12892-65H00-284	SHIM,TAPPET T:2.84
12	12892-65H00-286	SHIM,TAPPET T:2.86
12	12892-65H00-288	SHIM,TAPPET T:2.88
12	12892-65H00-290	SHIM,TAPPET T:2.90
12	12892-65H00-292	SHIM,TAPPET T:2.92
12	12892-65H00-294	SHIM,TAPPET T:2.94
12	12892-65H00-296	SHIM,TAPPET T:2.96
12	12892-65H00-298	SHIM,TAPPET T:2.98
12	12892-65H00-300	SHIM,TAPPET T:3.00
12	12892-65H00-232	SHIM,TAPPET T:2.32
12	12892-65H00-234	SHIM,TAPPET T:2.34
12	12892-65H00-236	SHIM,TAPPET T:2.36
12	12892-65H00-238	SHIM,TAPPET T:2.38
12	12892-65H00-240	SHIM,TAPPET T:2.40
12	12892-65H00-242	SHIM,TAPPET T:2.42
12	12892-65H00-244	SHIM,TAPPET T:2.44
12	12892-65H00-246	SHIM,TAPPET T:2.46
12	12892-65H00-248	SHIM,TAPPET T:2.48
12	12892-65H00-250	SHIM,TAPPET T:2.50
12	12892-65H00-252	SHIM,TAPPET T:2.52

OEM	Part name	Category
09289-05012-000	SEAL,OIL(5.5X11.5X9.3)	camshaft / valve (4V; 2008-06-01~)
12710-85K30-000	カムシャフト,インテーク	camshaft / valve (4V; 2008-06-01~)
12710-85K31-000	カムシャフト,インテーク	camshaft / valve (4V; 2008-06-01~)
12720-85K30-000	カムシャフト,エキゾースト	camshaft / valve (4V; 2008-06-01~)
12720-85K31-000	CAMSHAFT,EXH	camshaft / valve (4V; 2008-06-01~)
12737-78G80-000	BEARING,CAMSHAFT	camshaft / valve (4V; 2008-06-01~)
12891-65H00-000	Tappet	camshaft / valve (4V; 2008-06-01~)
12892-65H00-218	SHIM,TAPPET T:2.18	camshaft / valve (4V; 2008-06-01~)
12892-65H00-220	SHIM,TAPPET T:2.20	camshaft / valve (4V; 2008-06-01~)
12892-65H00-222	SHIM,TAPPET T:2.22	camshaft / valve (4V; 2008-06-01~)
12892-65H00-224	SHIM,TAPPET T:2.24	camshaft / valve (4V; 2008-06-01~)
12892-65H00-226	SHIM,TAPPET T:2.26	camshaft / valve (4V; 2008-06-01~)
12892-65H00-228	SHIM,TAPPET T:2.28	camshaft / valve (4V; 2008-06-01~)
12892-65H00-230	SHIM,TAPPET T:2.30	camshaft / valve (4V; 2008-06-01~)
12892-65H00-232	SHIM,TAPPET T:2.32	camshaft / valve (4V; 2008-06-01~)
12892-65H00-234	SHIM,TAPPET T:2.34	camshaft / valve (4V; 2008-06-01~)
12892-65H00-236	SHIM,TAPPET T:2.36	camshaft / valve (4V; 2008-06-01~)
12892-65H00-238	SHIM,TAPPET T:2.38	camshaft / valve (4V; 2008-06-01~)
12892-65H00-240	SHIM,TAPPET T:2.40	camshaft / valve (4V; 2008-06-01~)
12892-65H00-242	SHIM,TAPPET T:2.42	camshaft / valve (4V; 2008-06-01~)
12892-65H00-244	SHIM,TAPPET T:2.44	camshaft / valve (4V; 2008-06-01~)
12892-65H00-246	SHIM,TAPPET T:2.46	camshaft / valve (4V; 2008-06-01~)
12892-65H00-248	SHIM,TAPPET T:2.48	camshaft / valve (4V; 2008-06-01~)
12892-65H00-250	SHIM,TAPPET T:2.50	camshaft / valve (4V; 2008-06-01~)
12892-65H00-252	SHIM,TAPPET T:2.52	camshaft / valve (4V; 2008-06-01~)
12892-65H00-254	SHIM,TAPPET T:2.54	camshaft / valve (4V; 2008-06-01~)
12892-65H00-256	SHIM,TAPPET T:2.56	camshaft / valve (4V; 2008-06-01~)
12892-65H00-258	SHIM,TAPPET T:2.58	camshaft / valve (4V; 2008-06-01~)
12892-65H00-260	SHIM,TAPPET T:2.60	camshaft / valve (4V; 2008-06-01~)
12892-65H00-262	SHIM,TAPPET T:2.62	camshaft / valve (4V; 2008-06-01~)
12892-65H00-264	SHIM,TAPPET T:2.64	camshaft / valve (4V; 2008-06-01~)
12892-65H00-266	SHIM,TAPPET T:2.66	camshaft / valve (4V; 2008-06-01~)
12892-65H00-268	SHIM,TAPPET T:2.68	camshaft / valve (4V; 2008-06-01~)
12892-65H00-270	SHIM,TAPPET T:2.70	camshaft / valve (4V; 2008-06-01~)
12892-65H00-272	SHIM,TAPPET T:2.72	camshaft / valve (4V; 2008-06-01~)
12892-65H00-274	SHIM,TAPPET T:2.74	camshaft / valve (4V; 2008-06-01~)
12892-65H00-276	SHIM,TAPPET T:2.76	camshaft / valve (4V; 2008-06-01~)
12892-65H00-278	SHIM,TAPPET T:2.78	camshaft / valve (4V; 2008-06-01~)
12892-65H00-280	SHIM,TAPPET T:2.80	camshaft / valve (4V; 2008-06-01~)
12892-65H00-282	SHIM,TAPPET T:2.82	camshaft / valve (4V; 2008-06-01~)
12892-65H00-284	SHIM,TAPPET T:2.84	camshaft / valve (4V; 2008-06-01~)
12892-65H00-286	SHIM,TAPPET T:2.86	camshaft / valve (4V; 2008-06-01~)
12892-65H00-288	SHIM,TAPPET T:2.88	camshaft / valve (4V; 2008-06-01~)
12892-65H00-290	SHIM,TAPPET T:2.90	camshaft / valve (4V; 2008-06-01~)
12892-65H00-292	SHIM,TAPPET T:2.92	camshaft / valve (4V; 2008-06-01~)
12892-65H00-294	SHIM,TAPPET T:2.94	camshaft / valve (4V; 2008-06-01~)
12892-65H00-296	SHIM,TAPPET T:2.96	camshaft / valve (4V; 2008-06-01~)
12892-65H00-298	SHIM,TAPPET T:2.98	camshaft / valve (4V; 2008-06-01~)
12892-65H00-300	SHIM,TAPPET T:3.00	camshaft / valve (4V; 2008-06-01~)
12911-83G01-000	Valve,intake	camshaft / valve (4V; 2008-06-01~)
12915-73G20-000	Valve,exhaust - Valve, exhaust	camshaft / valve (4V; 2008-06-01~)
12921-58J00-000	SPRING,VALVE	camshaft / valve (4V; 2008-06-01~)
12931-78G00-000	RETAINER,VALVE SPRING - Retainer, valve spring	camshaft / valve (4V; 2008-06-01~)
12932-24400-000	COTTER,VALVE	camshaft / valve (4V; 2008-06-01~)
12933-51E00-000	SEAT,VALVE SPRING - Seat, valve spring	camshaft / valve (4V; 2008-06-01~)
