MH23S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2008 · 2,210 parts · 100 categories

2,210 items

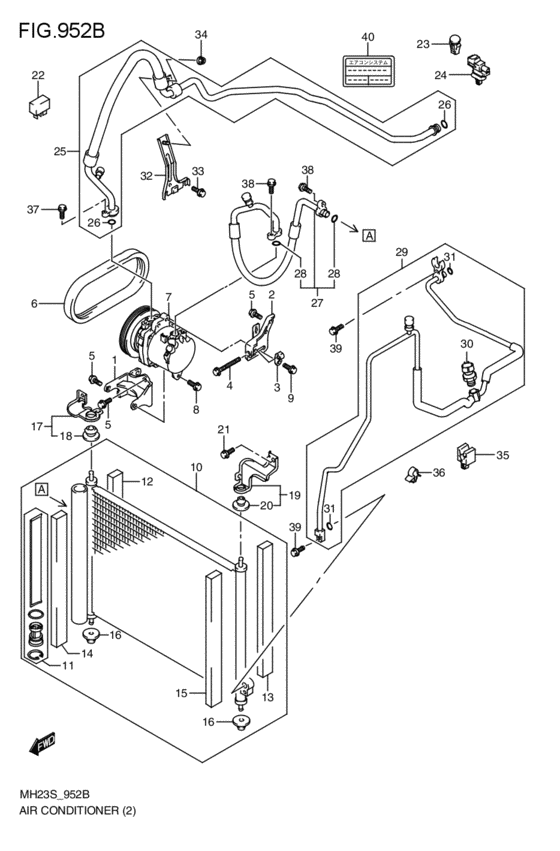

air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~) 46

#	OEM	Part name
1	95111-58J00-000	ブラケット,コンプレッサ
2	95120-58J00-000	ステー,コンプレッサアジャスト
2	95120-58J01-000	ステー,コンプレッサアジャスト
3	95125-58J00-000	TENSIONER,CPRSR
4	95126-58J00-000	Bolt
5	01550-0820A-000	Bolt - Bolt, funnel bracket
6	49181-70A12-000	Belt(4pk710)
6	49181-70A13-000	V-BELT,4PK 710
7	95200-58J40-000	コンプレッサアッシ
7	95200-58J43-000	COMPRESSOR ASSY
7	95200-76G30-000	コンプレッサアッシ
7	95200-76G41-000	Discontinue
9	01550-0825A-000	Bolt
10	95310-58J02-000	Condenser assy
10	95310-58J03-000	CONDENSER ASSY
11	95339-58J10-000	DRYER KIT
12	95811-58J00-000	パッキング
12	95811-58J01-000	New Genuine Part
13	95812-58J00-000	パッキング
14	95813-58J00-000	パッキング
15	95814-58J00-000	パッキング
16	95851-58J10-000	ブッシュ,ロア
17	95390-58J01-000	ブラケット,コンデンサ,ライト
18	95851-58J01-000	ブッシュ,コンデンサ,アッパ
19	95390-58J11-000	ブラケット,コンデンサ,レフト
21	02162-0616A-000	SCREW
21	02162-0616B-000	SCREW - Bolt, adjust
22	38860-76F01-000	RELAY ASSY - Relay, starting motor
23	95642-64G20-000	SENSOR,SUN LIGHT
24	95643-58J00-000	SENSOR,AIR TEMP
25	95710-58J01-000	ホース,サクション
25	95710-58J03-000	Discontinue
26	95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)
27	95720-72J01-000	ホース,ディスチャージ
27	95720-72J02-000	ホース,ディスチャージ
28	95895-50G00-000	O-RING,D:2.4 ID:10.8
29	95731-85K00-000	パイプ,リキッド
29	95731-85K01-000	パイプ,リキッド
30	95546-58J00-000	SENSOR,PRESSURE
31	95891-50G00-000	O-RING,D:1.8 ID:6.7
34	09159-06077-000	NUT
35	09403-08331-000	CLAMP
36	09403-08405-000	CLAMP - Clamp, decomp lead
37	01550-0620A-000	Bolt
40	95956-84GJ0-000	ラベル,レフリジェラント
40	95956-84GJ1-000	Discontinue

OEM	Part name	Category
01550-0620A-000	Bolt	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
01550-0820A-000	Bolt - Bolt, funnel bracket	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
01550-0825A-000	Bolt	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
02162-0616A-000	SCREW	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
02162-0616B-000	SCREW - Bolt, adjust	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
09159-06077-000	NUT	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
09403-08331-000	CLAMP	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
09403-08405-000	CLAMP - Clamp, decomp lead	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
38860-76F01-000	RELAY ASSY - Relay, starting motor	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
49181-70A12-000	Belt(4pk710)	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
49181-70A13-000	V-BELT,4PK 710	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95111-58J00-000	ブラケット,コンプレッサ	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95120-58J00-000	ステー,コンプレッサアジャスト	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95120-58J01-000	ステー,コンプレッサアジャスト	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95125-58J00-000	TENSIONER,CPRSR	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95126-58J00-000	Bolt	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95200-58J40-000	コンプレッサアッシ	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95200-58J43-000	COMPRESSOR ASSY	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95200-76G30-000	コンプレッサアッシ	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95200-76G41-000	Discontinue	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95310-58J02-000	Condenser assy	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95310-58J03-000	CONDENSER ASSY	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95339-58J10-000	DRYER KIT	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95390-58J01-000	ブラケット,コンデンサ,ライト	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95390-58J11-000	ブラケット,コンデンサ,レフト	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95546-58J00-000	SENSOR,PRESSURE	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95642-64G20-000	SENSOR,SUN LIGHT	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95643-58J00-000	SENSOR,AIR TEMP	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95710-58J01-000	ホース,サクション	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95710-58J03-000	Discontinue	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95720-72J01-000	ホース,ディスチャージ	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95720-72J02-000	ホース,ディスチャージ	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95731-85K00-000	パイプ,リキッド	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95731-85K01-000	パイプ,リキッド	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95811-58J00-000	パッキング	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95811-58J01-000	New Genuine Part	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95812-58J00-000	パッキング	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95813-58J00-000	パッキング	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95814-58J00-000	パッキング	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95851-58J01-000	ブッシュ,コンデンサ,アッパ	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95851-58J10-000	ブッシュ,ロア	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95891-50G00-000	O-RING,D:1.8 ID:6.7	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95895-50G00-000	O-RING,D:2.4 ID:10.8	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95896-50G00-000	O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4)	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95956-84GJ0-000	ラベル,レフリジェラント	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
95956-84GJ1-000	Discontinue	air-conditioner (FXL,FXSL,FT,FTH,FTC,SX,ST,SZ; 2008-06-01~)
