| 08316-1008A-000 |
NUT - Nut, idle gear shaft |

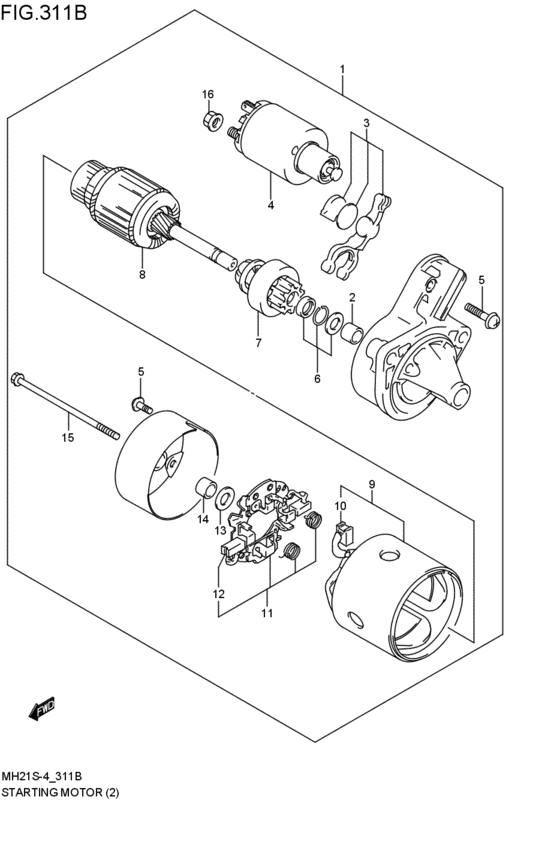

starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31100-75F02-000 |
Motor assy,starting |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31100-75F03-000 |
MOTOR ASSY,STARTING |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31110-70B30-000 |
YOKE ASSY |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31131-80090-000 |
BRUSH(+) |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31132-80090-000 |
BRUSH(-) |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31136-79030-000 |
SCREW ASSY |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31152-79030-000 |
BEARING,FRONT |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31172-79030-000 |
BUSH |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31173-82130-000 |
HOLDER ASSY,BRUSH |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31175-79030-000 |
Screw Set |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31191-79030-000 |
LEVER ASSY |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31220-84030-000 |
SWITCH ASSY |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31261-82130-000 |
Bolt |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31311-86131-000 |
ARMATURE |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31313-80090-000 |
RING SET |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31320-82631-000 |
CLUTCH ASSY |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
| 31361-79030-000 |
WASHER |
starting motor (ミツビシ; AT; 2005-08-01~2007-06-01) |
