| 03541-0616A-000 |
SCREW |

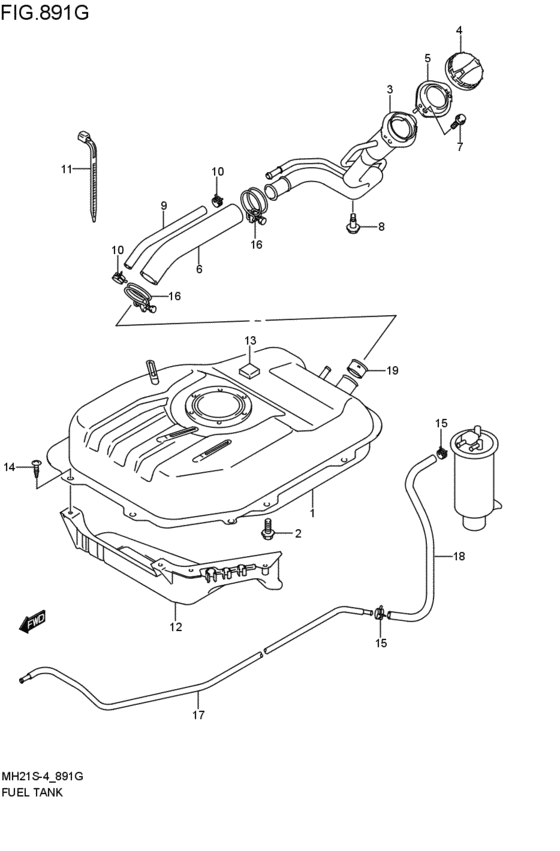

fuel tank (2005-08-01~2007-06-01) |
| 09116-05014-000 |
BOLT(5X20) |
fuel tank (2005-08-01~2007-06-01) |
| 09116-06205-000 |
BOLT(6X16) |
fuel tank (2005-08-01~2007-06-01) |
| 09118-08161-000 |
BOLT(8X25) |
fuel tank (2005-08-01~2007-06-01) |
| 09355-11188-600 |
HOSE(11X17.8X600) |
fuel tank (2005-08-01~2007-06-01) |
| 09355-54128-600 |
Hose,5.4x12.2x600 |
fuel tank (2005-08-01~2007-06-01) |
| 09355-56128-600 |
HOSE(5.6X12.4X600) |
fuel tank (2005-08-01~2007-06-01) |
| 09400-45311-000 |
CLAMP |
fuel tank (2005-08-01~2007-06-01) |
| 09401-11415-000 |
CLIP |
fuel tank (2005-08-01~2007-06-01) |
| 09401-16407-000 |
CLIP |
fuel tank (2005-08-01~2007-06-01) |
| 09407-19401-000 |
CLAMP(L:190) |
fuel tank (2005-08-01~2007-06-01) |
| 89101-58J50-000 |
タンクアッシ,フューエル |
fuel tank (2005-08-01~2007-06-01) |
| 89101-58J51-000 |
TANK ASSY,FUEL |
fuel tank (2005-08-01~2007-06-01) |
| 89191-58J00-000 |
COVER,FUEL TANK,LOWER |
fuel tank (2005-08-01~2007-06-01) |
| 89210-58J00-000 |
ネック,フューエルフィラ |
fuel tank (2005-08-01~2007-06-01) |
| 89210-58J20-000 |
New Genuine Part |
fuel tank (2005-08-01~2007-06-01) |
| 89241-73H00-000 |
HOSE,FUEL TANK FILLER |
fuel tank (2005-08-01~2007-06-01) |
| 89260-73H00-000 |
CAP ASSY,FUEL FILLER |
fuel tank (2005-08-01~2007-06-01) |
| 89280-77A00-000 |
VALVE,FUEL TANK INLET |
fuel tank (2005-08-01~2007-06-01) |
| 89285-58J00-000 |
PACKING,FUEL FILLER |
fuel tank (2005-08-01~2007-06-01) |
| 89483-58J00-000 |
パイプ,フューエルエバポ |
fuel tank (2005-08-01~2007-06-01) |
| 89483-58J01-000 |
PIPE,FUEL EVAP |
fuel tank (2005-08-01~2007-06-01) |
| 89521-60B01-000 |
PAD,FUEL TANK |
fuel tank (2005-08-01~2007-06-01) |
