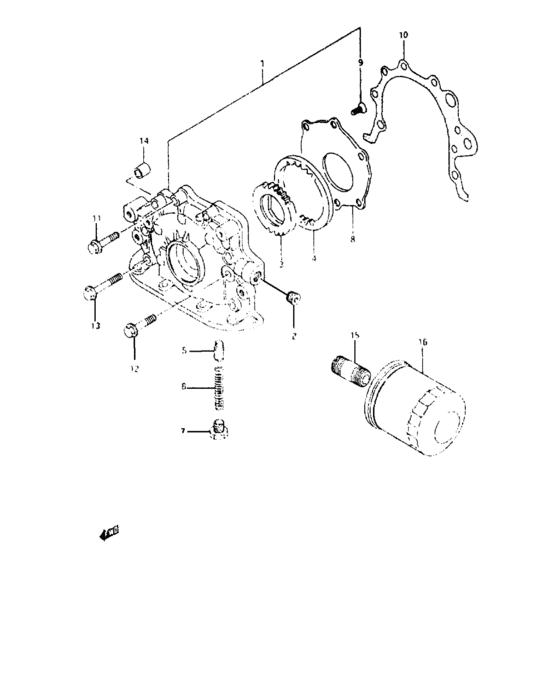

Oil pump (OIL PUMP)
19
| # | OEM | Part name |
|---|
| 1 |
16100-M7303-300 |
Pump assy, oil |
| 1 |
16100-M7314-300 |
Pump assy, oil |
| 2 |
09246-06002-000 |
PLUG |
| 2 |
09246-08007-000 |
PLUG |
| 3 |
16131-73001-000 |
Gear, inner |
| 3 |
16130-73000-000 |
ROTOR SET,OIL PUMP |
| 4 |
16132-73000-000 |
Gear, outer |
| 5 |
16151-M7300-000 |
Valve, relief |
| 6 |
16152-M7300-100 |
Spring, relief valve |
| 7 |
16153-M7300-000 |
Retainer, spring |
| 8 |
16161-M7300-200 |
Plate, gear |
| 9 |
02122-M0612-800 |
Screw |
| 10 |
16119-M7301-100 |
Gasket, oil pump case |
| 11 |
01517-M0630-600 |
Bolt |
| 12 |
01517-M0635-600 |
Bolt |
| 13 |
01517-M0640-600 |
Bolt |
| 14 |
04211-M0910-900 |
Knock pin |
| 15 |
11241-M7300-300 |
Stand, oil filter |
| 16 |
16510-M7301-000 |
Filter assy, oil |
| OEM |
Part name |
Category |
| 01517-M0630-600 |
Bolt |
Oil pump (OIL PUMP) |
| 01517-M0635-600 |
Bolt |
Oil pump (OIL PUMP) |
| 01517-M0640-600 |
Bolt |
Oil pump (OIL PUMP) |
| 02122-M0612-800 |
Screw |
Oil pump (OIL PUMP) |
| 04211-M0910-900 |
Knock pin |
Oil pump (OIL PUMP) |
| 09246-06002-000 |
PLUG |
Oil pump (OIL PUMP) |
| 09246-08007-000 |
PLUG |
Oil pump (OIL PUMP) |
| 11241-M7300-300 |
Stand, oil filter |
Oil pump (OIL PUMP) |
| 16100-M7303-300 |
Pump assy, oil |
Oil pump (OIL PUMP) |
| 16100-M7314-300 |
Pump assy, oil |
Oil pump (OIL PUMP) |
| 16119-M7301-100 |
Gasket, oil pump case |
Oil pump (OIL PUMP) |
| 16130-73000-000 |
ROTOR SET,OIL PUMP |
Oil pump (OIL PUMP) |
| 16131-73001-000 |
Gear, inner |
Oil pump (OIL PUMP) |
| 16132-73000-000 |
Gear, outer |
Oil pump (OIL PUMP) |
| 16151-M7300-000 |
Valve, relief |
Oil pump (OIL PUMP) |
| 16152-M7300-100 |
Spring, relief valve |
Oil pump (OIL PUMP) |
| 16153-M7300-000 |
Retainer, spring |
Oil pump (OIL PUMP) |
| 16161-M7300-200 |
Plate, gear |
Oil pump (OIL PUMP) |
| 16510-M7301-000 |
Filter assy, oil |
Oil pump (OIL PUMP) |
