MG410W

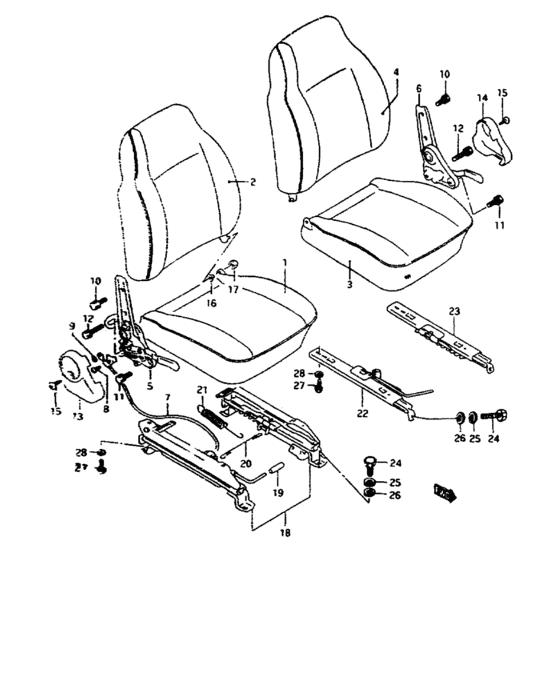

Front seat (RHD) 35
| # | OEM | Part name |
|---|---|---|
| 1 | 85101-M8061-000 | Cushion assy, front rh |
| 2 | 85301-M8305-000 | Back assy, front rh |
| 3 | 85102-M8061-000 | Cushion assy, front lh |
| 4 | 85302-M8303-100 | Back assy, front lh |
| 5 | 85210-M8029-000 | Reclining assy, rh |
| 5 | 85210-80290-000 | Reclining assy, rh |
| 5 | 85210-80290-5PK | RECLINING,FR SEAT,R |
| 6 | 85710-M8300-100 | Reclining assy, lh |
| 6 | 85710-83001-000 | Reclining assy, lh |
| 6 | 85710-83001-5PK | RECLINING,FR SEAT,L |
| 7 | 87570-83000-000 | WIRE ASSY,WALKIN |
| 8 | 03111-05103-000 | スクリュ |
| 8 | 03111-0510A-000 | SCREW |
| 9 | 09148-04032-000 | NUT |
| 10 | 01104-M0816-600 | Bolt |
| 11 | 01137-10166-000 | ボルト |
| 11 | 01570-1016A-000 | Bolt |
| 12 | 01107-M1040-600 | Bolt, no.1 |
| 13 | 85221-M8200-100 | Cover, reclining rh |
| 14 | 85721-M8200-100 | Cover, reclining lh |
| 15 | 03241-M0512-300 | Screw |
| 16 | 85291-M8029-000 | Bush |
| 17 | 08313-20083-000 | Nut |
| 17 | 08313-2008B-000 | NUT |
| 17 | 08313-2008A-000 | NUT |
| 18 | 86901-83002-000 | WALKIN ASSY,FR SEAT,L |
| 19 | 86736-83000-000 | KNOB,LOCK HANDLE |
| 20 | 86731-83000-000 | ROD,WALKIN TENSION |
| 21 | 86732-83000-000 | SPRING,WALKIN |
| 22 | 86601-M8014-300 | Rail assy, inside |
| 22 | 86601-80134-000 | RAIL ASSY,FR SEAT SLIDER,R |
| 23 | 86602-M8014-300 | Rail assy, outside |
| 23 | 86602-80133-000 | RAIL ASSY,FR SEAT SLIDE,L |
| 25 | 08321-M3108-300 | Washer lock |
| 26 | 08322-M1108-300 | Washer |
| OEM | Part name | Category |
|---|---|---|
| 01104-M0816-600 | Bolt | Front seat (RHD) |
| 01107-M1040-600 | Bolt, no.1 | Front seat (RHD) |
| 01137-10166-000 | ボルト | Front seat (RHD) |
| 01570-1016A-000 | Bolt | Front seat (RHD) |
| 03111-05103-000 | スクリュ | Front seat (RHD) |
| 03111-0510A-000 | SCREW | Front seat (RHD) |
| 03241-M0512-300 | Screw | Front seat (RHD) |
| 08313-20083-000 | Nut | Front seat (RHD) |
| 08313-2008A-000 | NUT | Front seat (RHD) |
| 08313-2008B-000 | NUT | Front seat (RHD) |
| 08321-M3108-300 | Washer lock | Front seat (RHD) |
| 08322-M1108-300 | Washer | Front seat (RHD) |
| 09148-04032-000 | NUT | Front seat (RHD) |
| 85101-M8061-000 | Cushion assy, front rh | Front seat (RHD) |
| 85102-M8061-000 | Cushion assy, front lh | Front seat (RHD) |
| 85210-80290-000 | Reclining assy, rh | Front seat (RHD) |
| 85210-80290-5PK | RECLINING,FR SEAT,R | Front seat (RHD) |
| 85210-M8029-000 | Reclining assy, rh | Front seat (RHD) |
| 85221-M8200-100 | Cover, reclining rh | Front seat (RHD) |
| 85291-M8029-000 | Bush | Front seat (RHD) |
| 85301-M8305-000 | Back assy, front rh | Front seat (RHD) |
| 85302-M8303-100 | Back assy, front lh | Front seat (RHD) |
| 85710-83001-000 | Reclining assy, lh | Front seat (RHD) |
| 85710-83001-5PK | RECLINING,FR SEAT,L | Front seat (RHD) |
| 85710-M8300-100 | Reclining assy, lh | Front seat (RHD) |
| 85721-M8200-100 | Cover, reclining lh | Front seat (RHD) |
| 86601-80134-000 | RAIL ASSY,FR SEAT SLIDER,R | Front seat (RHD) |
| 86601-M8014-300 | Rail assy, inside | Front seat (RHD) |
| 86602-80133-000 | RAIL ASSY,FR SEAT SLIDE,L | Front seat (RHD) |
| 86602-M8014-300 | Rail assy, outside | Front seat (RHD) |
| 86731-83000-000 | ROD,WALKIN TENSION | Front seat (RHD) |
| 86732-83000-000 | SPRING,WALKIN | Front seat (RHD) |
| 86736-83000-000 | KNOB,LOCK HANDLE | Front seat (RHD) |
| 86901-83002-000 | WALKIN ASSY,FR SEAT,L | Front seat (RHD) |
| 87570-83000-000 | WIRE ASSY,WALKIN | Front seat (RHD) |
