Search › Model › MG410
MG410

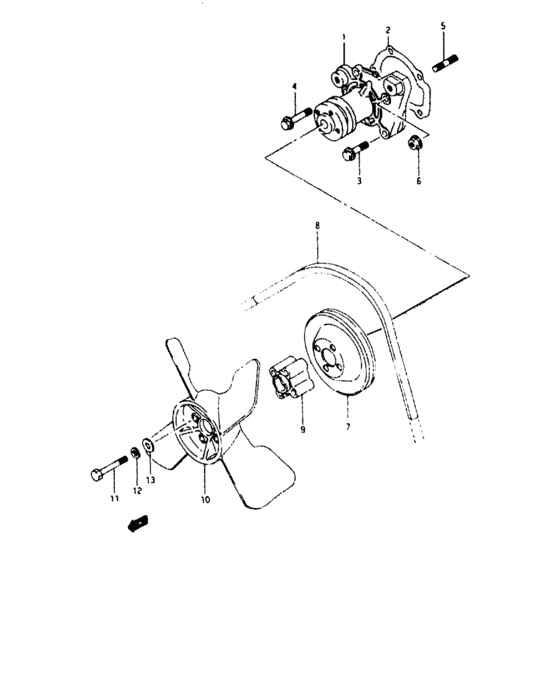

Water pump (WATER PUMP) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-M7831-100 | Pump Assy, Water |
| 1 | 17400-M7821-100 | Pump Assy, Water |
| 2 | 17431-M7301-100 | Gasket, Water Pump |
| 3 | 01517-M0630-600 | Bolt |
| 4 | 01517-M0640-600 | Bolt |
| 5 | 01411-M0625-300 | Stud bolt |
| 6 | 08316-M1606-600 | Nut |
| 7 | 17511-M7710-000 | Pulley, water pump |
| 8 | 17521-M7151-000 | Belt, water pump |
| 9 | 17131-M8000-100 | Hub, cooling fan |
| 10 | 17111-M7300-000 | Fan, cooling |
| 11 | 01107-M0650-300 | Bolt |
| 12 | 08321-M3106-300 | Lock washer |
| 13 | 08322-M2106-800 | Washer |
| OEM | Part name | Category |
|---|---|---|
| 01107-M0650-300 | Bolt | Water pump (WATER PUMP) |
| 01411-M0625-300 | Stud bolt | Water pump (WATER PUMP) |
| 01517-M0630-600 | Bolt | Water pump (WATER PUMP) |
| 01517-M0640-600 | Bolt | Water pump (WATER PUMP) |
| 08316-M1606-600 | Nut | Water pump (WATER PUMP) |
| 08321-M3106-300 | Lock washer | Water pump (WATER PUMP) |
| 08322-M2106-800 | Washer | Water pump (WATER PUMP) |
| 17111-M7300-000 | Fan, cooling | Water pump (WATER PUMP) |
| 17131-M8000-100 | Hub, cooling fan | Water pump (WATER PUMP) |
| 17400-M7821-100 | Pump Assy, Water | Water pump (WATER PUMP) |
| 17400-M7831-100 | Pump Assy, Water | Water pump (WATER PUMP) |
| 17431-M7301-100 | Gasket, Water Pump | Water pump (WATER PUMP) |
| 17511-M7710-000 | Pulley, water pump | Water pump (WATER PUMP) |
| 17521-M7151-000 | Belt, water pump | Water pump (WATER PUMP) |
