MG410

Suzuki SIERRA · 1,986 parts · 84 categories
MG410 ×

← Back to categories

1,986 items

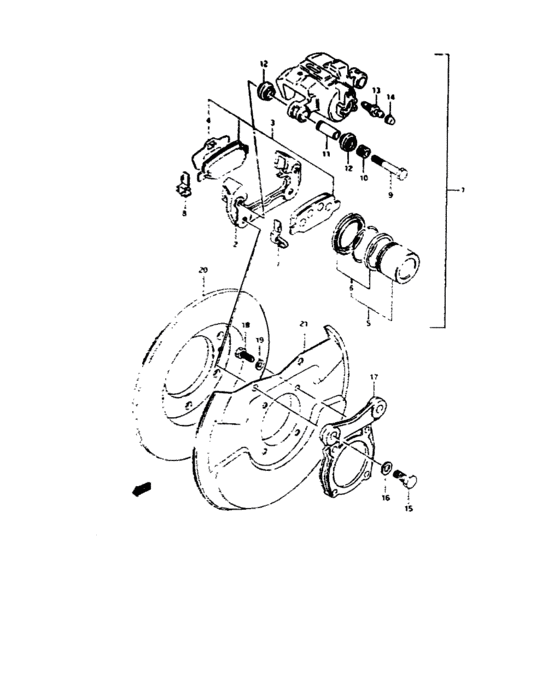

Front wheel brake (FRONT WHEEL BRAKE) 34
#OEMPart name
1 55100-70A00-000 CALLIPER ASSY FRT BRAKE
1 55100-70A04-999 CALIPER,FR BRAKE
1 55200-70813-000 PAD SET,DISC BRAKE
1 55100-70A05-999 Caliper,fr Brake
2 55161-80000-000 MOUNTING,DISC BRAKE
4 55115-80000-000 SHIM
5 55100-82810-000 Piston & boot set
5 55830-60C12-000 PISTON / SEAL SET
5 55830-60C13-000 Piston / Seal Set
6 55100-82820-000 Seal set,piston
6 55100-82822-000 SEAL SET,PISTON
6 55100-82823-000 Seal Set,piston
6 55100-82824-000 Seal Set,Piston
7 55234-60800-000 Plate, pad support no.1
8 55235-60800-000 Plate, pad support no.2
9 55206-80000-000 ボルト
9 01500-0855B-000 Bolt
9 01500-08553-000 Bolt - Bolt, rear
10 55196-80002-000 SUPPORT,DUST BOOT
11 55191-80000-000 ブッシュ,シリンダスライド
11 55191-80001-000 BUSHING,CYLINDER SLIDE
12 55201-80001-000 BOOT,BUSH DUST
13 52473-60020-000 プラグ,ブリーダ
13 55151-78451-000 PLUG,BLEEDER
14 52474-60020-000 Bleeder cap
14 55156-66310-000 CAP,BLEEDER PLUG - Cap, bleeder plug
14 59122-18410-000 Cap, bleeder plug
15 09100-M1211-100 Bolt, brake caliper
16 08321-M3112-300 Lock washer
17 55311-M8000-000 Holder, brake caliper
18 09100-M1002-300 Bolt
19 08321-M3110-300 Lock washer
20 55211-M8000-000 Disk, front brake
21 55221-M8000-000 Dust, cover
