Search › Model › MG410

MG410

Suzuki SIERRA · 1,986 parts · 84 categories

1,986 items

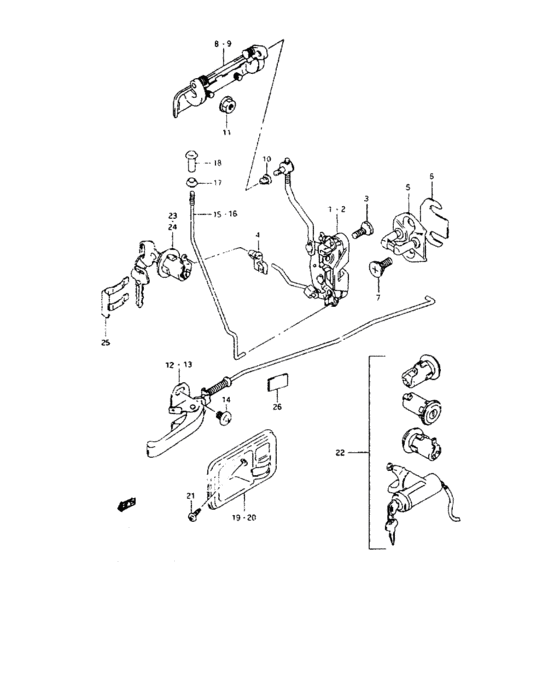

Front door lock (FRONT DOOR LOCK) 31

#	OEM	Part name
1	82201-M82C3-000	Latch assy, door rh
1	82201-82C00-000	LATCH ASSY,FR DR,R
2	82202-M82C3-000	Latch assy, door lh
2	82202-82C10-000	Latch assy, door lh
2	82202-82C00-000	LATCH ASSY,FR DR,L
3	02122-56163-000	SCREW
3	02122-5616B-000	SCREW
4	09209-M0501-600	Pin
5	82610-M8500-000	Striker, lock
6	82681-M8010-000	Spacer
7	09137-08004-000	SCREW(8X18)
7	09137-08011-000	SCREW(8X18)
8	82021-M7900-000	Handle, door rh
9	82011-M7900-000	Handle, door lh
10	82891-M8010-000	Snap
11	08316-M2606-600	Nut
12	83110-M8010-000	Handle, inside rh
13	83130-M8010-000	Handle, inside lh
14	02142-M0610-800	Screw
15	83241-M8010-000	Rod, safety lock rh
16	83242-M8010-000	Rod, safety lock lh
17	78242-M6100-000	Cap, lock knob
18	78241-M6000-200	Knob, inside lock
19	78471-M7900-000	Bezel, handle rh
20	78481-M7900-000	Bezel, handle rh
21	03141-M0408-300	Screw
22	37011-M8310-000	Lock set
23	77402-M7985-000	Cylinder assy, door rh
24	77402-M7986-000	Cylinder assy, door lh
25	77461-M7800-000	Clip, key cylinder
26	77591-M7500-000	Pad, door inside handle

OEM	Part name	Category
02122-56163-000	SCREW	Front door lock (FRONT DOOR LOCK)
02122-5616B-000	SCREW	Front door lock (FRONT DOOR LOCK)
02142-M0610-800	Screw	Front door lock (FRONT DOOR LOCK)
03141-M0408-300	Screw	Front door lock (FRONT DOOR LOCK)
08316-M2606-600	Nut	Front door lock (FRONT DOOR LOCK)
09137-08004-000	SCREW(8X18)	Front door lock (FRONT DOOR LOCK)
09137-08011-000	SCREW(8X18)	Front door lock (FRONT DOOR LOCK)
09209-M0501-600	Pin	Front door lock (FRONT DOOR LOCK)
37011-M8310-000	Lock set	Front door lock (FRONT DOOR LOCK)
77402-M7985-000	Cylinder assy, door rh	Front door lock (FRONT DOOR LOCK)
77402-M7986-000	Cylinder assy, door lh	Front door lock (FRONT DOOR LOCK)
77461-M7800-000	Clip, key cylinder	Front door lock (FRONT DOOR LOCK)
77591-M7500-000	Pad, door inside handle	Front door lock (FRONT DOOR LOCK)
78241-M6000-200	Knob, inside lock	Front door lock (FRONT DOOR LOCK)
78242-M6100-000	Cap, lock knob	Front door lock (FRONT DOOR LOCK)
78471-M7900-000	Bezel, handle rh	Front door lock (FRONT DOOR LOCK)
78481-M7900-000	Bezel, handle rh	Front door lock (FRONT DOOR LOCK)
82011-M7900-000	Handle, door lh	Front door lock (FRONT DOOR LOCK)
82021-M7900-000	Handle, door rh	Front door lock (FRONT DOOR LOCK)
82201-82C00-000	LATCH ASSY,FR DR,R	Front door lock (FRONT DOOR LOCK)
82201-M82C3-000	Latch assy, door rh	Front door lock (FRONT DOOR LOCK)
82202-82C00-000	LATCH ASSY,FR DR,L	Front door lock (FRONT DOOR LOCK)
82202-82C10-000	Latch assy, door lh	Front door lock (FRONT DOOR LOCK)
82202-M82C3-000	Latch assy, door lh	Front door lock (FRONT DOOR LOCK)
82610-M8500-000	Striker, lock	Front door lock (FRONT DOOR LOCK)
82681-M8010-000	Spacer	Front door lock (FRONT DOOR LOCK)
82891-M8010-000	Snap	Front door lock (FRONT DOOR LOCK)
83110-M8010-000	Handle, inside rh	Front door lock (FRONT DOOR LOCK)
83130-M8010-000	Handle, inside lh	Front door lock (FRONT DOOR LOCK)
83241-M8010-000	Rod, safety lock rh	Front door lock (FRONT DOOR LOCK)
83242-M8010-000	Rod, safety lock lh	Front door lock (FRONT DOOR LOCK)
