Search › Model › MF22S
MF22S

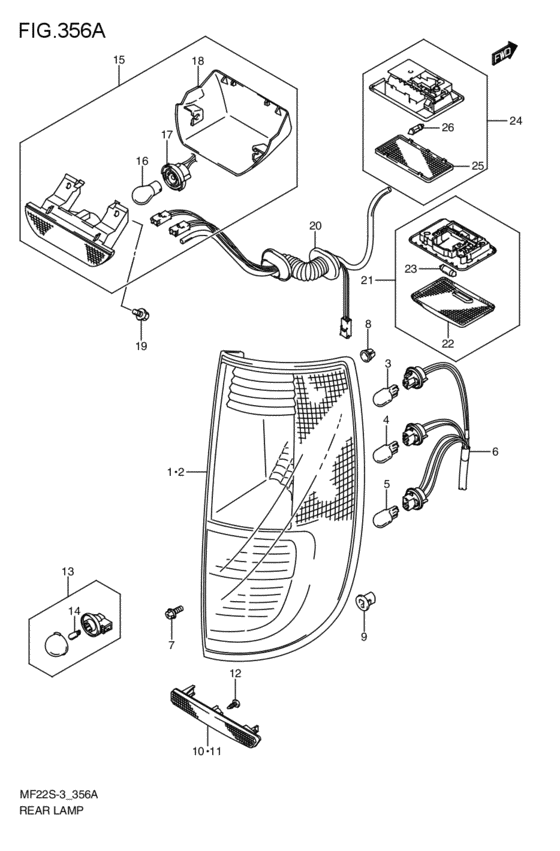

rear lamp (2009-02-01~) 33
| # | OEM | Part name |
|---|---|---|
| 1 | 35650-81J01-000 | ランプユニット,リヤコンビネーションライト |
| 2 | 35670-81J01-000 | ランプユニット,リヤコンビネーションレフト |
| 3 | 09471-12192-000 | BULB(12V21/5W) |
| 4 | 09471-12202-000 | BULB(12V21W/WY21W,AMBER) |
| 5 | 09471-12191-000 | BULB(12V21W) |
| 6 | 35658-81J00-000 | ソケット/コードアッシ |
| 7 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 8 | 35153-63G00-000 | GROMMET,RR COMB LAMP |
| 9 | 35153-54G00-000 | GROMMET,RR COMB LAMP |
| 10 | 35950-79J01-000 | Reflector assy,rear,r |
| 10 | 35950-79J02-000 | REFLECTOR ASSY,REAR |
| 11 | 35970-79J01-000 | Reflector assy,rear,l |
| 11 | 35970-79J02-000 | REFLECTOR ASSY,REAR |
| 12 | 03141-0516A-000 | SCREW |
| 13 | 35910-75F00-000 | Lamp assy,license |
| 13 | 35910-75F01-000 | Lamp assy,license |
| 14 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 14 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 15 | 35810-81J11-P4Z | ランプアッシ,ハイマウントストップ(グレー) |
| 15 | 35810-81J12-P4Z | New Genuine Part |
| 16 | 09471-12045-000 | BULB(12V21W) |
| 17 | 35818-73H10-000 | Socket& cord assy |
| 17 | 35818-73H11-000 | SOCKET&CORD ASSY |
| 18 | 35821-81J00-P4Z | カバー,ハイマウントストップランプ(グレー) |
| 19 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 20 | 36842-81J10-000 | ワイヤ,ハイマウントストップランプ |
| 21 | 36210-58J00-6GS | Lamp assy,rr room |
| 21 | 36210-58J03-6GS | LAMP ASSY,RR ROOM |
| 22 | 36212-58J00-000 | LENS |
| 23 | 09471-12181-000 | BULB(12V10W) |
| 24 | 36210-63J10-6GS | LAMP ASSY,ROOM |
| 24 | 36210-63J11-6GS | Lamp Assy,room |
| 25 | 36212-63J00-000 | LENS |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | rear lamp (2009-02-01~) |
| 02162-0616B-000 | SCREW - Bolt, adjust | rear lamp (2009-02-01~) |
| 03141-0516A-000 | SCREW | rear lamp (2009-02-01~) |
| 09471-12045-000 | BULB(12V21W) | rear lamp (2009-02-01~) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | rear lamp (2009-02-01~) |
| 09471-12181-000 | BULB(12V10W) | rear lamp (2009-02-01~) |
| 09471-12191-000 | BULB(12V21W) | rear lamp (2009-02-01~) |
| 09471-12192-000 | BULB(12V21/5W) | rear lamp (2009-02-01~) |
| 09471-12202-000 | BULB(12V21W/WY21W,AMBER) | rear lamp (2009-02-01~) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | rear lamp (2009-02-01~) |
| 35153-54G00-000 | GROMMET,RR COMB LAMP | rear lamp (2009-02-01~) |
| 35153-63G00-000 | GROMMET,RR COMB LAMP | rear lamp (2009-02-01~) |
| 35650-81J01-000 | ランプユニット,リヤコンビネーションライト | rear lamp (2009-02-01~) |
| 35658-81J00-000 | ソケット/コードアッシ | rear lamp (2009-02-01~) |
| 35670-81J01-000 | ランプユニット,リヤコンビネーションレフト | rear lamp (2009-02-01~) |
| 35810-81J11-P4Z | ランプアッシ,ハイマウントストップ(グレー) | rear lamp (2009-02-01~) |
| 35810-81J12-P4Z | New Genuine Part | rear lamp (2009-02-01~) |
| 35818-73H10-000 | Socket& cord assy | rear lamp (2009-02-01~) |
| 35818-73H11-000 | SOCKET&CORD ASSY | rear lamp (2009-02-01~) |
| 35821-81J00-P4Z | カバー,ハイマウントストップランプ(グレー) | rear lamp (2009-02-01~) |
| 35910-75F00-000 | Lamp assy,license | rear lamp (2009-02-01~) |
| 35910-75F01-000 | Lamp assy,license | rear lamp (2009-02-01~) |
| 35950-79J01-000 | Reflector assy,rear,r | rear lamp (2009-02-01~) |
| 35950-79J02-000 | REFLECTOR ASSY,REAR | rear lamp (2009-02-01~) |
| 35970-79J01-000 | Reflector assy,rear,l | rear lamp (2009-02-01~) |
| 35970-79J02-000 | REFLECTOR ASSY,REAR | rear lamp (2009-02-01~) |
| 36210-58J00-6GS | Lamp assy,rr room | rear lamp (2009-02-01~) |
| 36210-58J03-6GS | LAMP ASSY,RR ROOM | rear lamp (2009-02-01~) |
| 36210-63J10-6GS | LAMP ASSY,ROOM | rear lamp (2009-02-01~) |
| 36210-63J11-6GS | Lamp Assy,room | rear lamp (2009-02-01~) |
| 36212-58J00-000 | LENS | rear lamp (2009-02-01~) |
| 36212-63J00-000 | LENS | rear lamp (2009-02-01~) |
| 36842-81J10-000 | ワイヤ,ハイマウントストップランプ | rear lamp (2009-02-01~) |
