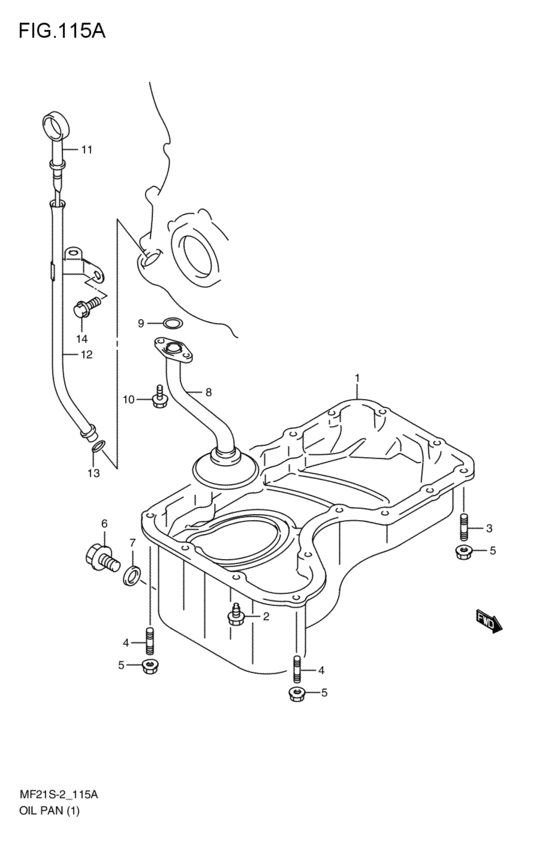

| 01550-06123-000 |
Bolt |
oil pan (2004-02-01~2004-09-01) |
| 01550-0612A-000 |
Bolt |
oil pan (2004-02-01~2004-09-01) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
oil pan (2004-02-01~2004-09-01) |
| 01570-06163-000 |
Bolt |
oil pan (2004-02-01~2004-09-01) |
| 01570-0616A-000 |
Bolt |
oil pan (2004-02-01~2004-09-01) |
| 01570-0616B-000 |
Bolt |
oil pan (2004-02-01~2004-09-01) |
| 08316-10063-000 |
Nut |
oil pan (2004-02-01~2004-09-01) |
| 08316-1006B-000 |
NUT |
oil pan (2004-02-01~2004-09-01) |
| 09108-06113-000 |
BOLT,STUD |
oil pan (2004-02-01~2004-09-01) |
| 09117-06062-000 |
BOLT(6X16) |
oil pan (2004-02-01~2004-09-01) |
| 09168-14015-000 |
GASKET(14X20X1.5) - Gasket, oil hose union |
oil pan (2004-02-01~2004-09-01) |
| 09247-14044-000 |
DRAIN PLUG (M14x1.5) |
oil pan (2004-02-01~2004-09-01) |
| 09280-10016-000 |
O RING(D:1.9,ID:9.8) |
oil pan (2004-02-01~2004-09-01) |
| 09280-16005-000 |
O RING(D:2.4,ID:15.8) - O ring, exhaust pipe |
oil pan (2004-02-01~2004-09-01) |
| 11510-83G02-000 |
PAN,OIL |
oil pan (2004-02-01~2004-09-01) |
| 16520-75F00-000 |
STRAINER,OIL PUMP |
oil pan (2004-02-01~2004-09-01) |
| 16910-73H00-000 |
ゲージ,オイルレベル |
oil pan (2004-02-01~2004-09-01) |
| 16930-73H03-000 |
ガイド,オイルレベルゲージ |
oil pan (2004-02-01~2004-09-01) |
