Search › Model › ME34S
ME34S

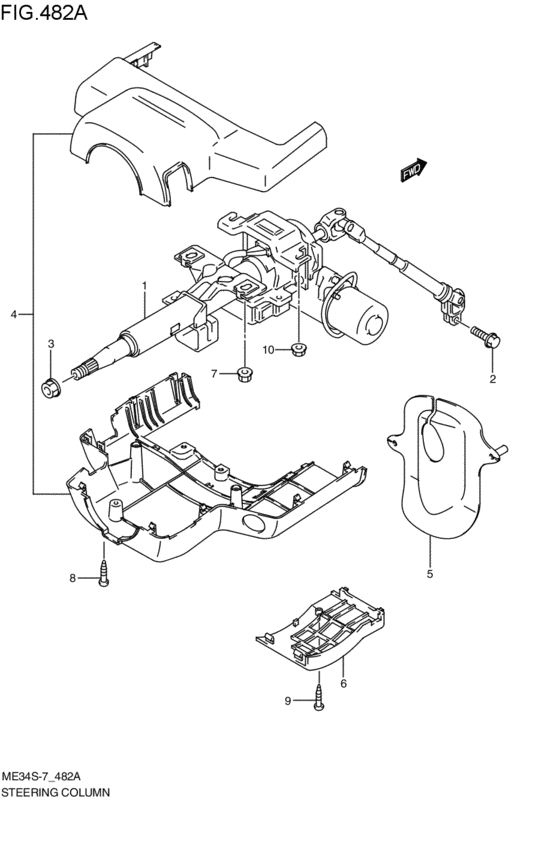

steering column (2009-06-01~) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 48200-78F34-000 | COLUMN ASSY,COLPS STRG |
| 2 | 09117-08053-000 | BOLT(8X30) |
| 3 | 08316-1012A-000 | NUT |
| 4 | 48400-78F34-R8R | COVER ASSY,STRG COLUMN |
| 5 | 48481-78F00-000 | COVER,STRG JOINT |
| 6 | 48422-76F31-R8R | COVER,STRG COLUMN BTM |
| 7 | 09159-08135-000 | NUT |
| 8 | 03211-0512B-000 | SCREW |
| 9 | 03541-0516A-000 | SCREW |
| 10 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| OEM | Part name | Category |
|---|---|---|
| 03211-0512B-000 | SCREW | steering column (2009-06-01~) |
| 03541-0516A-000 | SCREW | steering column (2009-06-01~) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | steering column (2009-06-01~) |
| 08316-1012A-000 | NUT | steering column (2009-06-01~) |
| 09117-08053-000 | BOLT(8X30) | steering column (2009-06-01~) |
| 09159-08135-000 | NUT | steering column (2009-06-01~) |
| 48200-78F34-000 | COLUMN ASSY,COLPS STRG | steering column (2009-06-01~) |
| 48400-78F34-R8R | COVER ASSY,STRG COLUMN | steering column (2009-06-01~) |
| 48422-76F31-R8R | COVER,STRG COLUMN BTM | steering column (2009-06-01~) |
| 48481-78F00-000 | COVER,STRG JOINT | steering column (2009-06-01~) |
