Search › Model › ME34S
ME34S

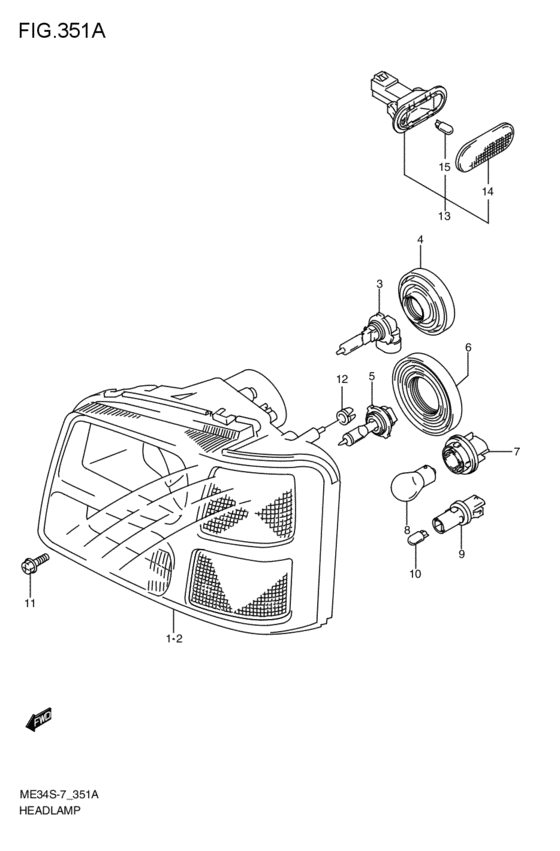

head lamp (2009-06-01~) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-82H30-000 | UNIT,HEADLAMP,R |
| 2 | 35320-82H30-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12150-000 | BULB(12V51W,HB4,P22D) |
| 4 | 35125-78F20-000 | COVER,SOCKET |
| 5 | 09471-12151-000 | BULB(12V60W,HB3,#9005) - Bulb (12v,60w,hb3,p20d) |
| 6 | 35125-78F10-000 | COVER,SOCKET |
| 7 | 35618-74G00-000 | SOCKET,TURN LAMP |
| 8 | 09471-12186-000 | BULB(12V21W,AMBER) |
| 9 | 36118-78F00-000 | SOCKET,POSITION LAMP |
| 10 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 10 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 11 | 09122-76006-000 | SCREW(6X16) |
| 12 | 35153-50G00-000 | FASTENER,LAMP |
| 13 | 36410-75F01-000 | LAMP ASSY,SIDE TURN SIG |
| 14 | 36412-75F00-000 | LENS,SIDE TURN |
| OEM | Part name | Category |
|---|---|---|
| 09122-76006-000 | SCREW(6X16) | head lamp (2009-06-01~) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | head lamp (2009-06-01~) |
| 09471-12150-000 | BULB(12V51W,HB4,P22D) | head lamp (2009-06-01~) |
| 09471-12151-000 | BULB(12V60W,HB3,#9005) - Bulb (12v,60w,hb3,p20d) | head lamp (2009-06-01~) |
| 09471-12186-000 | BULB(12V21W,AMBER) | head lamp (2009-06-01~) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | head lamp (2009-06-01~) |
| 35120-82H30-000 | UNIT,HEADLAMP,R | head lamp (2009-06-01~) |
| 35125-78F10-000 | COVER,SOCKET | head lamp (2009-06-01~) |
| 35125-78F20-000 | COVER,SOCKET | head lamp (2009-06-01~) |
| 35153-50G00-000 | FASTENER,LAMP | head lamp (2009-06-01~) |
| 35320-82H30-000 | UNIT,HEADLAMP,L | head lamp (2009-06-01~) |
| 35618-74G00-000 | SOCKET,TURN LAMP | head lamp (2009-06-01~) |
| 36118-78F00-000 | SOCKET,POSITION LAMP | head lamp (2009-06-01~) |
| 36410-75F01-000 | LAMP ASSY,SIDE TURN SIG | head lamp (2009-06-01~) |
| 36412-75F00-000 | LENS,SIDE TURN | head lamp (2009-06-01~) |
