Search › Model › ME34S
ME34S

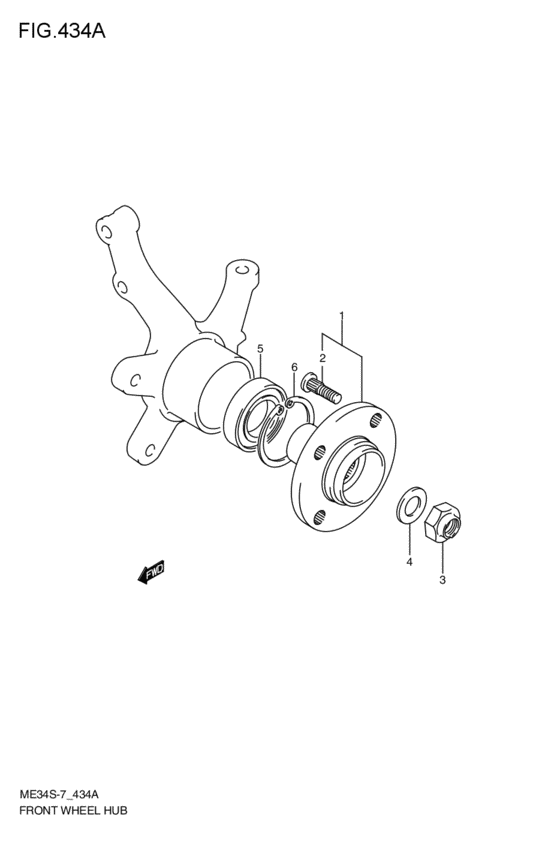

front wheel hub (2009-06-01~) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 43420-85800-000 | HUB SET,FR WHL |
| 2 | 09119-12012-000 | BOLT(12X38) |
| 3 | 09159-18008-000 | NUT |
| 4 | 09160-18017-000 | WASHER(18X35X4) |
| 5 | 43440-84F00-000 | Bearing, rr hub |
| 5 | 43440-58J00-000 | BEARING,FR WHEEL |
| 5 | 43440-58J01-000 | BEARING,FR WHEEL |
| 6 | 08331-4162A-000 | CIRCLIP |
| OEM | Part name | Category |
|---|---|---|
| 08331-4162A-000 | CIRCLIP | front wheel hub (2009-06-01~) |
| 09119-12012-000 | BOLT(12X38) | front wheel hub (2009-06-01~) |
| 09159-18008-000 | NUT | front wheel hub (2009-06-01~) |
| 09160-18017-000 | WASHER(18X35X4) | front wheel hub (2009-06-01~) |
| 43420-85800-000 | HUB SET,FR WHL | front wheel hub (2009-06-01~) |
| 43440-58J00-000 | BEARING,FR WHEEL | front wheel hub (2009-06-01~) |
| 43440-58J01-000 | BEARING,FR WHEEL | front wheel hub (2009-06-01~) |
| 43440-84F00-000 | Bearing, rr hub | front wheel hub (2009-06-01~) |
