| 35501-33010 |
Rod Sub-Assy, Parking Lock |

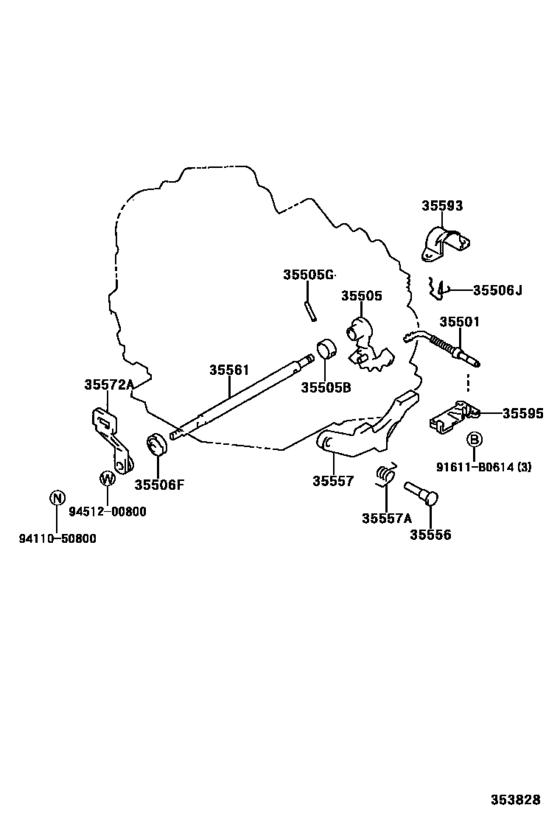

Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35505-32040 |
Lever Sub-Assy, Manual Valve |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35520-33060 |
Cable Assy, Throttle |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35523-32010 |
Clamp, Throttle Cable |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35523-YC030 |
Clamp, Throttle Cable |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35556-32020 |
Shaft, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35557-33010 |
Pawl, Parking Lock |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35561-33010 |
Shaft, Manual Valve Lever |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35572-33010 |
Lever, Transmission Control Shaft |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35593-33010 |
Sleeve, Cam Guide |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35595-33010 |
Bracket, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90179-06080 |
NUT |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90254-04011 |
Pin, Slotted Spring (For Transfer Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90311-12002 |
Oil Seal, Type T |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90524-09001 |
Spring, Retainer (For Manual Valve Lever Shaft) |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90560-20006 |
Spacer (For Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90949-03043 |
Spring, Torsion (For Parking Lock Pawl) |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 91611-B0614 |
Bolt (For Rear Differential Breather Plug Oil Deflector) |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 91631-J0612 |
BRACKET |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 94110-50800 |
Nut(For Repair Actuator Set) |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 94512-00800 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Throttle Link & Valve Lever (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
