Search › Model › MCV36

MCV36

Toyota CAMRY-VISTA-AURION · 2002 · 4,187 parts · 201 categories

4,187 items

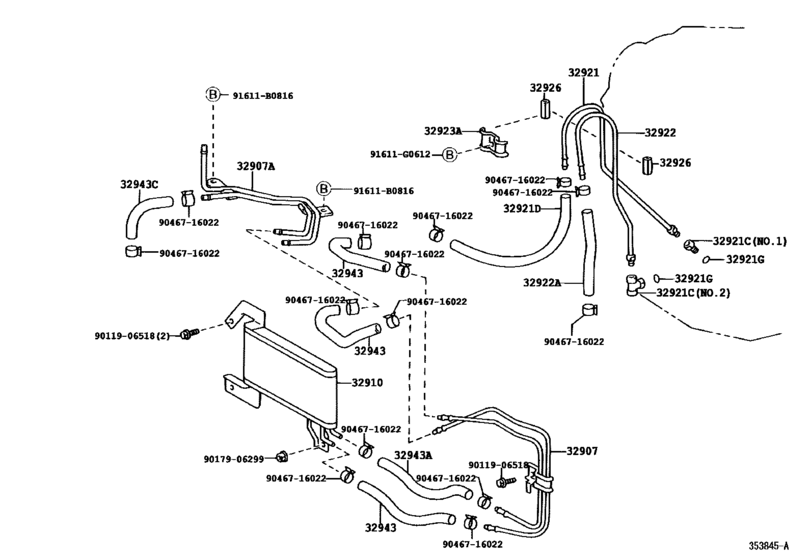

Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) 24

#	OEM	Part name
32907	32907-YC010	Tube Sub-Assy, Oil Cooler Outlet, No.2
32907	32907-YC030	Tube Sub-Assy, Oil Cooler Outlet, No.2
32910	32910-06010	Cooler Assy, Oil
32921	32921-YC020	Tube, Oil Cooler Inlet, No.1
32921	32921-33070	Tube, Oil Cooler Inlet, No.1
32921	32901-32050	Union(For Oil Cooler Tube)
32921	90404-16031	Union(For Transaxle Housing)
32921	32941-YC010	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32922	32922-YC020	Tube, Oil Cooler Outlet, No.1
32922	90089-44033	Hose(For Oil Cooler Inlet)
32922	90445-17069	Hose, Oil Cooler Water Outlet
32923	90462-12074	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-06020	Cushion, Oil Cooler Tube(Atm)
32943	90089-44025	Hose, Oil Cooler Inlet, No.1
32943	90089-44031	Hose, Oil Cooler Outlet, No.2
32943	90445-17063	Hose, Oil Cooler Outlet, No.2
32943	90089-44032	Hose, Oil Cooler Tube(For Outlet)
32943	90445-17151	Hose, Oil Cooler Tube(For Inlet)
91611	91611-B0816	Bolt
91611	91611-G0612	Bolt
9011906518	90119-06518	BOLT W-WASHER
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9046716022	90467-16022	Clip(For Water Inlet Hose)

OEM	Part name	Category
32901-32050	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32907-YC010	Tube Sub-Assy, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32907-YC030	Tube Sub-Assy, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32910-06010	Cooler Assy, Oil	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32921-33070	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32921-YC020	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32922-YC020	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32926-06020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
32941-YC010	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90089-44025	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90089-44031	Hose, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90089-44032	Hose, Oil Cooler Tube(For Outlet)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90089-44033	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90119-06518	BOLT W-WASHER	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90179-06299	Nut, Wire Adjusting, No.1	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90404-16031	Union(For Transaxle Housing)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90445-17063	Hose, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90445-17069	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90445-17151	Hose, Oil Cooler Tube(For Inlet)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90462-12074	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM)
