MCV36

Toyota CAMRY-VISTA-AURION · 2002 · 4,187 parts · 201 categories
MCV36 ×

← Back to categories

4,187 items

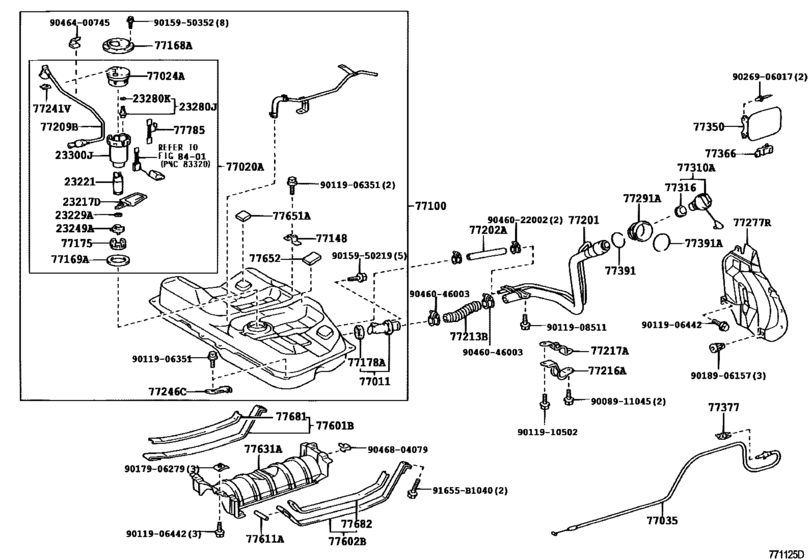

Fuel Tank & Tube ([08.2002 - ] FUEL TANK (0208- )) 72
#OEMPart name
23217 23217-0C010 Filter, Fuel Pump
23221 23221-20040 Pump, Fuel
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23249 23249-0D010 Rubber, Cushion(For Fuel Pump)
23249 23249-46180 Rubber, Cushion(For Fuel Pump)
23280 23280-22010 Regulator Assy, Fuel Pressure
23280 90301-07020 Ring, O(For Fuel Pressure Regulator)
23300 23300-0D030 Filter Assy, Fuel
23300 23300-21010 Filter Assy, Fuel
77011 77011-YC010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77020 77020-06040 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-06060 Plate Sub-Assy, Fuel Suction
77024 77024-33030 Plate Sub-Assy, Fuel Suction
77035 77035-06060 Cable Sub-Assy, Fuel Lid Lock Control
77100 77100-YC070 Tank Assy, Fuel
77148 77148-32010 Bracket, Fuel Tube To Tank
77168 77168-33050 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77175 77175-33020 Support, Fuel Suction, No.2
77178 77178-YC010 Gasket, Fuel Tank Filler Pipe, Lower
77178 77178-0A010 Gasket, Fuel Tank Filler Pipe, Lower
77201 77201-YC040 Pipe Sub-Assy, Fuel Tank Inlet
77202 90089-44016 Hose, Fuel, No.1 (For Breather Tube)
77209 77209-33060 Tube Sub-Assy, Fuel Pump
77213 77213-33010 Hose, Fuel Tank To Filler Pipe
77216 77216-YC020 Support, Fuel Tank Filler Pipe, No.1
77217 77217-YC010 Support, Fuel Tank Filler Pipe, No.2
77241 77241-06010 Clip, Tube Joint
77241 77241-33011 Clip, Tube Joint
77246 77246-33020 Support, Fuel Main Tube
77277 77277-YC050 Protector, Fuel Tank Filler Pipe
77291 77291-YC050 Shield, Fuel Tank Filler Pipe
77291 77291-33040 Shield, Fuel Tank Filler Pipe
77310 77300-28010 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-06020 Lid Assy, Fuel Filler Opening
77350 77350-33080 Lid Assy, Fuel Filler Opening
77366 77360-33030 Spring, Fuel Filler Opening Lid Hinge
77366 77360-35010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-12040 Ring, Fuel Inlet Box
77601 77601-YC010 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-YC010 Band Sub-Assy, Fuel Tank, No.1 Lh
77611 90089-25002 Pin (For Fuel Tank Band)
77631 77631-YC010 Protector, Fuel Tank, Lower Center
77651 77652-32030 Cushion, Fuel Tank, No.1
77652 77652-20110 Cushion, Fuel Tank, No.2
77681 77681-YC010 Seat, Fuel Tank Band, Rh
77785 77785-06030 Harness, Fuel Pump
77785 77785-52020 Harness, Fuel Pump
91655 91655-B1040 BOLT WWASHER
9008911045 90089-11045 New Genuine Part
9011906351 90119-06351 New Genuine Part
9011906442 90119-06442 BOLT WWASHER
9011908511 90119-08511 BOLT
9011910502 90119-10502 BOLT WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950352 90159-50352 New Genuine Part
9015950352 90159-50343 SCREW, W-WASHER
9017906279 90179-06279 New Genuine Part
9018906157 90189-06157 GROMMET SCREW
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046400745 90464-00745 Clamp, Fuel Tube, No.4
9046804079 90468-04079 Clip(For Front Bumper), No.2
