Search › Model › MCV36

MCV36

Toyota CAMRY-VISTA-AURION · 2002 · 4,187 parts · 201 categories

4,187 items

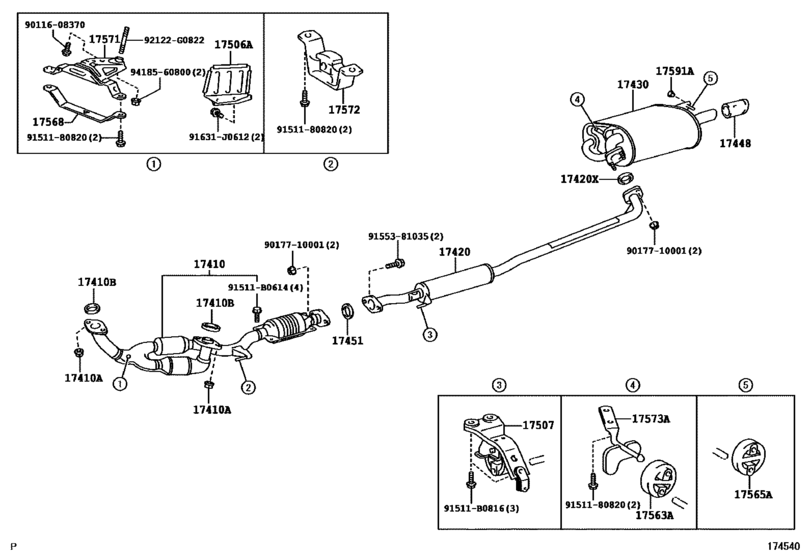

Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL) 34

#	OEM	Part name
17410	17410-0A380	Pipe Assy, Exhaust, Front
17410	17410-20500	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06065	Gasket, Exhaust Pipe
17420	17420-0A231	Pipe Assy, Exhaust, Center
17420	17420-0A310	Pipe Assy, Exhaust, Center
17420	90917-06073	Gasket, Exhaust Pipe, Center
17420	17420-0A230	Pipe Assy, Exhaust, Center
17430	17430-0A240	Pipe Assy, Exhaust, Tail
17430	17430-0A250	Pipe Assy, Exhaust, Tail
17430	17430-0A251	Pipe Assy, Exhaust, Tail
17448	17408-74080	Baffle Sub Assy, Exhaust Tail Pipe
17451	90917-06054	Gasket, Exhaust Pipe
17506	17506-0A060	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17507	17507-20040	Bracket Sub-Assy, Exhaust Pipe No.2 Support
17563	17565-03100	Support, Exhaust Pipe, No.3
17565	17565-03120	Support, Exhaust Pipe, No.4
17568	17568-0A120	Stay, Exhaust Pipe Support
17568	17568-20080	Stay, Exhaust Pipe Support
17571	17571-0A070	Bracket, Exhaust Pipe Support, No.1
17572	17572-20040	Bracket, Exhaust Pipe No.1 Support
17573	17573-74211	Bracket, Exhaust Pipe Support, No.3
17591	17591-20010	Stopper, Exhaust Pipe Support
91511	91511-B0614	BOLT, FLANGE
91511	91511-B0816	BOLT
91511	90080-10159	New Genuine Part
91631	91631-J0612	BRACKET
92122	92122-G0822	New Genuine Part
9011608370	90116-08370	BOLT STUD
9017710001	90177-10001	NUT LOCK
9151180820	91511-80820	BOLT FLANGE
9155381035	91553-81035	BOLT, FLANGE
9418560800	94185-60800	NUT

OEM	Part name	Category
17408-74080	Baffle Sub Assy, Exhaust Tail Pipe	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17410-0A380	Pipe Assy, Exhaust, Front	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17410-20500	Pipe Assy, Exhaust, Front	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17420-0A230	Pipe Assy, Exhaust, Center	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17420-0A231	Pipe Assy, Exhaust, Center	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17420-0A310	Pipe Assy, Exhaust, Center	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17430-0A240	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17430-0A250	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17430-0A251	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17506-0A060	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17507-20040	Bracket Sub-Assy, Exhaust Pipe No.2 Support	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17565-03100	Support, Exhaust Pipe, No.3	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17565-03120	Support, Exhaust Pipe, No.4	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17568-0A120	Stay, Exhaust Pipe Support	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17568-20080	Stay, Exhaust Pipe Support	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17571-0A070	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17572-20040	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17573-74211	Bracket, Exhaust Pipe Support, No.3	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
17591-20010	Stopper, Exhaust Pipe Support	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90080-10159	New Genuine Part	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90116-08370	BOLT STUD	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90177-10001	NUT LOCK	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90917-06054	Gasket, Exhaust Pipe	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90917-06065	Gasket, Exhaust Pipe	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
90917-06073	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
91511-80820	BOLT FLANGE	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
91511-B0614	BOLT, FLANGE	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
91511-B0816	BOLT	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
91553-81035	BOLT, FLANGE	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
91631-J0612	BRACKET	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
92122-G0822	New Genuine Part	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)
94185-60800	NUT	Exhaust Pipe ([01.2006 - ] (0601- )1MZFE..ARL)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 201
Collected: 2026-08-02
