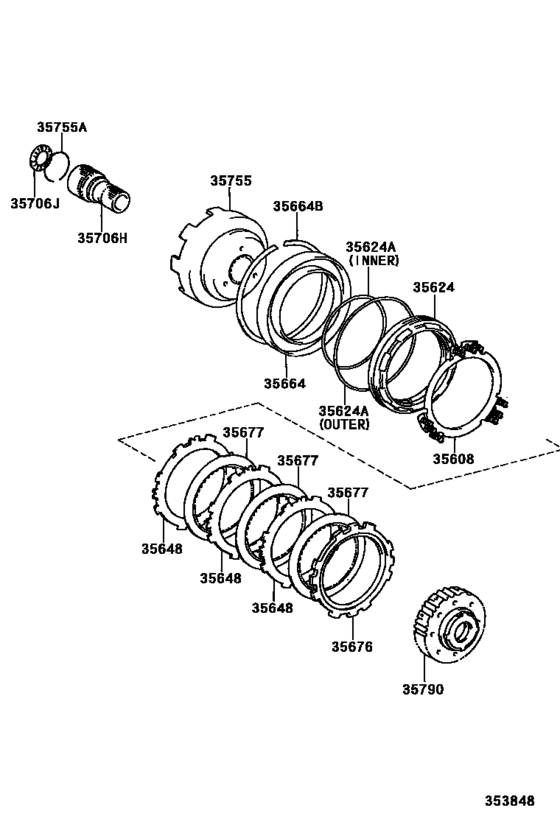

| 35608-33010 |
Spring Sub-Assy, 2Nd Brake Piston Return |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35624-33010 |
Piston, 2Nd Brake |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35648-33010 |
Plate, Clutch (For 2Nd Brake) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35664-32010 |
Cylinder, 2Nd Brake |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35676-33010 |
Flange, Brake (For 2Nd Brake) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35677-33050 |
Disc, Clutch (For 2Nd Brake) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35706-33012 |
Gear Sub-Assy, Planetary Sun |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35755-33010 |
Drum, Sun Gear Input |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 35790-33010 |
Clutch Assy, 1 Way |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90301-99021 |
Ring, O (For 2Nd Brake Piston) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90301-99023 |
Ring, O (For 2Nd Brake Piston) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90374-30014 |
Bearing, Thrust Needle Roller (For Planetary Sun Gear) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90520-36017 |
Ring, Shaft Snap (For Sun Gear Input Drum) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
| 90521-99013 |
Ring, Hole Snap (For 2Nd Brake Cylinder) |
Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A541E (0208- )MCV36..ATM) |
