Search › Model › MCV31

MCV31

Toyota CAMRY-VISTA-AURION · 2003 · 6,713 parts · 387 categories
MCV31 ×

← Back to categories

6,713 items

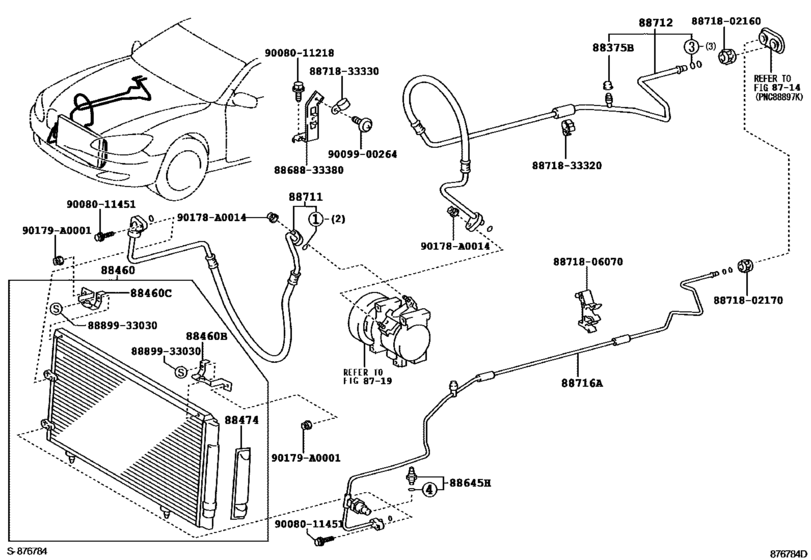

Heating & Air Conditioning - Cooler Piping ([06.2004 - ] (0406- )MCV3#..NAP) 21
#OEMPart name
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88460-06070 Condenser Assy, Cooler
88460 88688-06120 Bracket, Cooler Condenser, No.1
88460 88688-06140 Bracket, Cooler Condenser, No.2
88474 88474-47010 Dryer, Cooler
88645 88645-08010 Switch, Pressure No.1
88711 88711-06110 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-06050 Hose, Cooler Refrigerant Suction, No.1
88716 88716-06201 Pipe, Cooler Refrigerant Liquid, A
90178 90178-A0014 New Genuine Part
90179 90179-A0001 New Genuine Part
8868833380 88688-33380 Bracket, Cooler Diaphragm
8871802160 88718-02160 Clamp(For Cooler Refrigerant Pipe), No.1
8871802170 88718-02170 Clamp(For Cooler Refrigerant Pipe), No.2
8871806070 88718-06070 Pipe, Cooler Refrigerant Suction, No.2
8871833320 88718-33320 Pipe, Cooler Refrigerant Suction, No.2
8871833330 88718-33330 Pipe, Cooler Refrigerant Suction, No.2
8889933030 88899-33030 Cover, Evaporator
9008011218 90080-11218 New Genuine Part
9008011451 90080-11451 New Genuine Part
9009900264 90099-00264 SCREW
