Search › Model › MCV20
MCV20

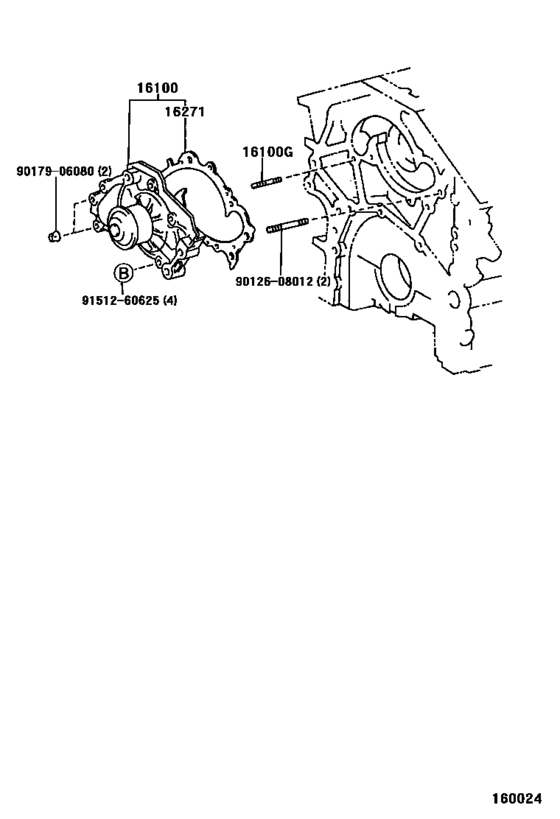

Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) 7
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-29085 | Pump Assy, Engine Water |
| 16100 | 90116-06144 | Bolt, Stud(For Water Pump Set) |
| 16271 | 16271-20020 | Gasket, Water Pump |
| 9012608012 | 90126-08012 | STUD HEX LOBULAR |
| 9017906080 | 90179-06080 | NUT |
| 9151260625 | 91512-60625 | Bolt(For Cylinder Head Cover) |
| 9151260625 | 91511-J0625 | Bolt(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 16100-29085 | Pump Assy, Engine Water | Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) |
| 16271-20020 | Gasket, Water Pump | Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) |
| 90116-06144 | Bolt, Stud(For Water Pump Set) | Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) |
| 90126-08012 | STUD HEX LOBULAR | Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) |
| 90179-06080 | NUT | Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) |
| 91511-J0625 | Bolt(For Cylinder Head Cover) | Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) |
| 91512-60625 | Bolt(For Cylinder Head Cover) | Water Pump ([04.1997 - ] (9704- )1MZFE,2MZFE) |
