Search › Model › MCV20

MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories
MCV20 ×

← Back to categories

5,941 items

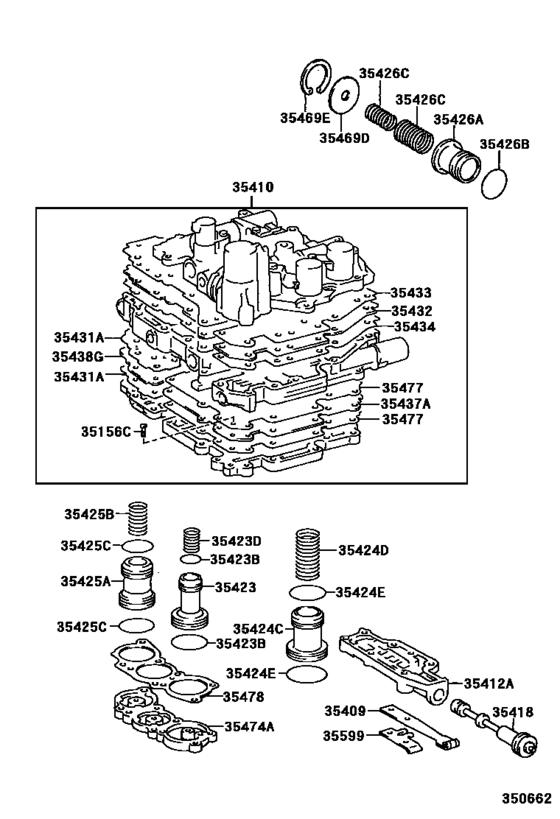

Valve Body & Oil Strainer (Atm) ([04.1997 - 08.1998] A541E (9704-9808)MCV20 ; (9808-9908)MCV2# ; (9908- )MCV21,25) 191
#OEMPart name
35156 90149-40030 Screw(For Transmission Case No.2 Plate)
35198 35198-33010 Bracket, Wire Harness Clamp
35211 35211-21010 Sleeve, Lock Up Control Valve
35211 35211-33020 Sleeve, Lock Up Control Valve
35212 35212-21010 Valve, Lock Up Relay
35212 35212-33010 Valve, Lock Up Relay
35212 90501-08149 Spring, Compression (For Lock Up Relay Valve)
35212 90501-09033 Spring, Compression (For Lock Up Relay Valve)
35213 35213-33010 Valve, Lock Up Relay Control
35214 35214-21010 Valve, Lock Up Control
35214 35214-33010 Valve, Lock Up Control
35215 90250-04101 Pin, Straight (For Lock Up Relay Valve Sleeve)
35215 35215-33011 Sleeve, Lock Up Relay Valve, No.1
35218 35218-33011 Plug, Lock Up Relay Valve
35218 35218-33020 Plug, Lock Up Relay Valve
35218 90250-03083 Key, Straight (For Lock Up Relay Valve Plug)
35218 90282-03027 Key, Straight (For Lock Up Control Valve)
35219 35219-21010 Plunger, Lock Up Control Valve
35219 35219-33010 Plunger, Lock Up Control Valve
35224 35224-33010 Valve, Reverse Control
35224 90339-04003 Spring(For Center Differential Control Valve)
35224 90501-10192 Spring, Compression (For Reverse Control Valve)
35227 35227-33010 Cylinder, B-0 Accumulator
35228 35228-32010 Valve, 2Nd Modulator
35228 90282-03018 Key, Straight (For 2Nd Modulator Valve)
35228 90339-04047 Plug (For 2Nd Modulator Valve)
35228 90501-09127 Spring, Compression (For 2Nd Modulator Valve)
35240 35240-21010 Solenoid Assy, Automatic Transmission 3Way
35240 35240-33020 Solenoid Assy, Automatic Transmission 3Way
35270 35270-33010 Solenoid Assy, Shift Control
35270 35270-33011 Solenoid Assy, Shift Control
35275 35275-21010 Valve, Solenoid Modulator
35275 35275-33010 Valve, Solenoid Modulator
35275 90501-12154 Spring, Compression (For Solenoid Modulator Valve)
35275 90501-13045 Spring, Compression (For Solenoid Modulator Valve)
35275 90339-04058 Seat, Plug (For Lock Up Relay Valve)
35280 35280-33010 Solenoid Assy, Lock Up Control
35285 35285-33020 Plate, Solenoid Lock
35330 35330-06010 Strainer Assy, Valve Body Oil
35330 35330-21020 Strainer Assy, Valve Body Oil
35330 35330-33030 Strainer Assy, Valve Body Oil
35339 35339-33010 Gasket, Oil Strainer
35339 90301-32010 O-ring (Gasket, Oil Strainer)
35409 35409-21010 Spring Sub-Assy, Manual Detent
35409 35409-32030 Spring Sub-Assy, Manual Detent
35410 35410-33070 Body Assy, Transmission Valve
35410 35410-48011 Body Assy, Transmission Valve
35412 35412-32020 Body, Manual Valve
35415 35415-21010 Valve, Primary Regulator
35415 35415-33010 Valve, Primary Regulator
35415 90250-03085 Key, Straight (For Primary Regulator Valve)
35415 90501-13037 Spring, Compression (For Primary Regulator Valve)
35415 90501-16155 Spring, Compression (For Primary Regulator Valve)
35415 90201-06041 Washer (For Primary Regulator Valve)
35416 35416-21010 Plunger, Primary Regulator Valve, No.1
35416 35416-33020 Plunger, Primary Regulator Valve, No.1
35417 35417-21010 Sleeve, Primary Regulator Valve
35417 35417-28030 Sleeve, Primary Regulator Valve
35417 35417-33020 Sleeve, Primary Regulator Valve
35417 35417-33021 Sleeve, Primary Regulator Valve
35417 90339-06021 Plug(For Primary Regulator Valve)
35417 90339-06020 Plug(For Primary Regulator Valve)
35418 35418-21011 Valve, Manual
35418 35418-32010 Valve, Manual
35419 35419-32010 Valve, Check, No.1
35419 35419-33010 Valve, Check, No.1
35419 90501-10056 Spring, Compression (For Check Valve)
35419 90501-10214 Spring, Compression (For Check Valve)
35420 90360-10006 Ball (For Pressure Relief)
35420 90501-15013 Spring (For Pressure Relief)
35422 35422-33020 Stopper, Valve Vibrating
35422 35422-33010 St0Pper, Valve Vibrating
35422 35422-33030 Plunger, Primary Regulator Valve, No.2
35423 35403-33030 Piston, B-2 Accumulator
35423 90301-21006 Ring, O (For B-2 Accumulator Piston)
35423 90301-30005 Ring, O (For B-2 Accumulator Piston)
35423 90501-23139 Spring, Compression (For B-2 Accmulator Piston)
35424 35424-21010 Piston, C-1 Accumulator
35424 35424-33010 Piston, C-1 Accumulator
35424 90501-20151 Spring, Compression (For C-1 Accumulator Piston)
35424 90501-27024 Spring, Compression (For C-1 Accumulator Piston)
35424 90301-27008 Ring, O (For C-1 Accumulator Piston)
35424 90301-30007 Ring, O (For C-1 Accumulator Piston)
35424 90301-36006 Ring, O (For C-1 Accumulator Piston)
35425 35405-33020 Piston, C-2 Accumulator
35425 35405-33021 Piston, C-2 Accumulator
35425 90501-21020 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-21032 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-26010 Ring, O (For C-2 Accumulator Piston)
35425 90301-34007 Ring, O (For C-2 Accumulator Piston)
35426 35426-32020 Piston, C-0 Accumulator
35426 90501-26036 Spring, Compression (For C-0 Accumulator Piston)
35426 90501-29019 Spring, Compression (For C-0 Accumulator Piston)
35427 35401-33020 Piston, B-0 Accumulator
35427 90501-16148 Spring, Compression (For B-0 Accumulator Piston)
35427 90301-17010 Ring, O (For B-0 Accumulator Piston)
35427 90301-25002 Ring, O (For C-2 Accumulator Piston)
35431 35431-21010 Gasket, Upper Valve Body Cover
35431 35435-33010 Gasket, Upper Valve Body Cover
35431 35436-33010 Gasket, Upper Valve Body Cover
35432 35432-33031 Plate, Valve Body, No.1
35432 35432-33070 Plate, Valve Body, No.1
35432 35445-33020 Valve, Low Modulator
35432 35432-48010 Plate, Valve Body, No.1
35433 35433-33011 Gasket, Valve Body, No.1
35434 35434-33012 Gasket, Valve Body, No.2
35437 35437-33040 Plate, Upper Valve Body Cover
35438 35438-33020 Plate, Valve Body, No.2
35438 35438-33030 Seat, Throttle Valve Spring
35439 35439-33010 Screw, Throttle Valve
35441 35441-21010 Strainer, Solenoid Oil
35441 35441-32020 Strainer, Solenoid Oil
35445 35445-33010 Valve, Low Modulator
35445 90501-08154 Spring, Compression (For Solenoid Relay Valve)
35445 90282-03007 Key, Straight (For Reverse Control Valve)
35445 90339-04028 Plug(For Low-High Shift Valve)
35447 35447-33010 Plunger, Accumulator Control Valve
35451 35451-33010 Sleeve, Throttle Valve
35451 90250-03086 Pin, Straight (For Throttle Valve Sleeve)
35456 35456-33010 Valve, 2-3 Shift
35456 90501-09088 Spring, Compression (For 2-3 Shift Valve)
35456 90339-04026 Plug (For 2-3 Shift Valve)
35458 35458-33010 Valve, Cut Back
35458 35458-33011 Valve, Cut Back
35458 90501-06026 Spring, Compression (For Cut Back Valve)
35458 90282-03011 Key, Straight(For Low-High Shift Valve)
35461 35408-33010 Plug, Down Shift
35461 90501-10190 Spring, Compression (For Down Shift Plug)
35462 35462-33010 Valve, Throttle
35462 90501-08148 Spring, Compression (For Throttle Valve)
35464 35464-33010 Valve, 1-2 Shift
35464 90501-09083 Spring, Compression (For 2-3 Shift Valve)
35466 35466-33010 Valve, 2Nd Lock
35466 90501-07106 Spring, Compression (For 2Nd Lock Valve)
35466 90282-03002 Key, Straight (For Lock Up Signal Valve)
35467 90282-03001 Key, Straight (For Lock Up Signal Valve)
35467 90282-03017 Key, Straight (For Accumulator Control Valve No.2)
35467 35467-33010 Plunger, Orifice Control Valve
35468 90339-04048 Plug (For B-1 Orifice Control Valve)
35468 90339-04068 Plug (For B-1 Orifice Control Valve)
35468 90501-08100 Spring, Compression (For B-1 Orifice Control Valve)
35468 35468-33030 Valve, B-1 Orifice Control
35468 35468-21010 Valve, Secondary Regulator
35468 35468-33040 Valve, Secondary Regulator
35468 90501-12177 Spring, Compression (For Secondary Regulator Valve)
35468 90501-14144 Spring, Compression (For Secondary Regulator Valve)
35468 90282-03014 Key, Straight (For Secondary Regulator Valve)
35468 90339-04060 Plug (For Reverse Control Valve)
35469 35469-33010 Spacer (For C-0 Accumulator Piston)
35469 96151-03700 Ring, Snap (For C-0 Accumulator Piston Spacer)
35471 35471-21010 Cover, Upper Valve Body
35471 35471-21011 Cover, Upper Valve Body
35471 35471-33010 Cover, Upper Valve Body
35471 35471-33011 Cover, Upper Valve Body
35472 35472-33020 Cover, Lower Valve Body
35474 35474-33010 Cover, Accumulator
35474 35474-33011 Cover, Accumulator
35477 35477-33021 Gasket, Valve Body Cover
35477 35488-33010 Gasket, Valve Body Cover
35478 35478-33010 Gasket, Accumulator Cover
35486 35486-21010 Seat, Pressure Relief Valve Spring
35486 35486-33010 Seat, Pressure Relief Valve Spring
35491 35491-33010 Valve, Accumulator Control, No.1
35491 90501-10191 Spring, Compression (For Accumulator Control Valve No.1)
35492 35492-33011 Sleeve, Accumulator Control Valve
35495 35495-22020 Ball (For Transfer Upper Valve Body)
35497 35497-21010 Valve, 3-4 Shift
35497 35497-33010 Valve, 3-4 Shift
35497 35479-21010 Key, Straight (For 3-4 Shift Valve)
35521 35521-33020 Cam, Throttle Valve
35521 90949-03008 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35521 90101-06037 Bolt (For Throttle Valve Cam Set)
35522 35522-33010 Pin, Throttle Valve Cam
35599 35599-21010 Cover, Manual Detent Spring
35599 35599-32020 Cover, Manual Detent Spring
35843 35843-33010 Tube, Transfer Lubrication Apply
35844 35844-33020 Tube, Accumulator Back Pressure, No.1
35845 35845-33010 Tube, Rr Clutch Accumulator
35846 35846-33010 Tube, Brake Accumulator
35848 35848-33010 Tube, Forward Clutch Accumulator
35862 35862-33020 Bracket, Accumulator Apply Tube
35882 35882-33010 Tube, Rear Servo Apply
35894 35894-33010 Support, Accumulator Tube
35897 35897-33010 Tube, 1St & Reverse Brake, No.1
3548133010 35481-33010 Body, Governor
3548133020 35481-33020 Body, Governor
9011905027 90119-05027 New Genuine Part
9050106081 90501-06081 New Genuine Part
9056006038 90560-06038 New Genuine Part
9454200600 94542-00600 New Genuine Part
