Search › Model › MCV20

MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

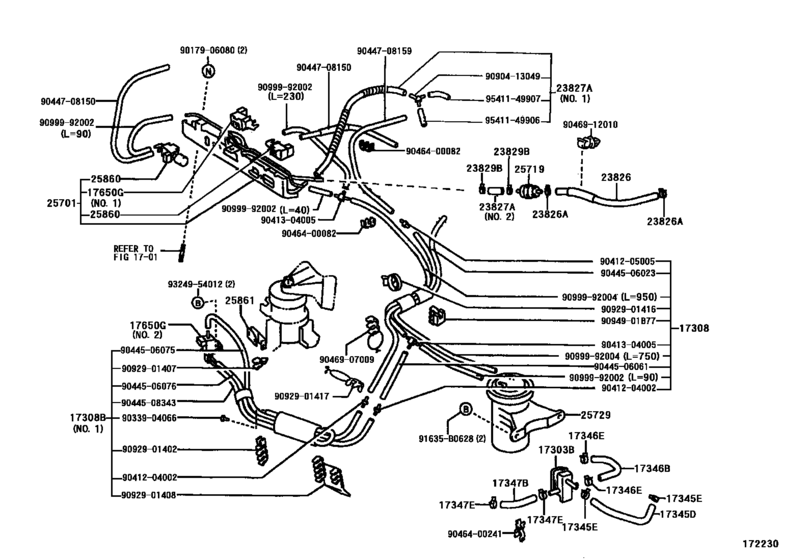

Vacuum Piping ([08.1999 - ] (9908- )1MZFE) 55

#	OEM	Part name
17303	17303-20010	Pipe Sub-Assy, Air, No.1
17308	17308-20050	Hose Sub-Assy, Vacuum(For Idle-Up)
17308	17308-20101	Hose Sub-Assy, Vacuum(For Idle-Up)
17308	17308-20090	Hose Sub-Assy, Vacuum
17345	17345-20030	Hose, Air, No.5
17345	90467-16003	Clip Or Clamp(For Ventilation Hose)
17345	96133-41500	Clamp Or Clip(For Air Hose, No.5)
17346	17346-20010	Hose, Air, No.6
17346	90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)
17346	96132-51300	Clip(For Ventilation Hose No.2)
17347	17347-20010	Hose, Air, No.7
17650	90910-12193	Valve, Duty Vacuum Switching
17650	90910-12196	Valve, Duty Vacuum Switching
23826	23826-20030	Hose, Fuel Vapor Feed, No.1
23826	23826-20031	Hose, Fuel Vapor Feed, No.1
23826	96132-51100	Clip (For Hose)
23827	23827-20030	Hose, Fuel Vapor Feed, No.2
23827	95326-07006	Hose, Fuel Vapor Feed, No.2
25701	25701-20080	Valve Set, Emission Control
25701	25701-20140	Valve Set, Emission Control
25719	25719-20020	Tank, Vacuum Surge
25729	25729-20010	Tank, Vacuum Surge W/bracket
25860	25860-62010	Valve Assy, Vacuum Switching
25861	25861-20070	Bracket, Vacuum Switching Valve
91635	91635-B0628	New Genuine Part
91635	91631-B0625	BOLT W-WASHER
9094901	90949-01B77	New Genuine Part
9017906080	90179-06080	NUT
9033904066	90339-04066	New Genuine Part
9041204002	90412-04002	New Genuine Part
9041205005	90412-05005	New Genuine Part
9041304005	90413-04005	Way, 3, No.1 (For Front Drive Shift)
9044506023	90445-06023	Hose, Vacuum, No.3 (For Heater Or Air Conditioner)
9044506023	90445-06057	Hose, Vacuum, No.3 (For Heater Or Air Conditioner)
9044506061	90445-06061	New Genuine Part
9044506075	90445-06075	New Genuine Part
9044506076	90445-06076	New Genuine Part
9044508343	90445-08343	Hose, Vacuum, No.1 (For Front Drive Shift)
9044508343	90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)
9044708150	90447-08150	New Genuine Part
9044708159	90447-08159	New Genuine Part
9046400082	90464-00082	Clamp(For Resistive Cord)
9046400241	90464-00241	New Genuine Part
9046907009	90469-07009	New Genuine Part
9046912010	90469-12010	Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
9090413049	90904-13049	New Genuine Part
9092901402	90929-01402	New Genuine Part
9092901407	90929-01407	New Genuine Part
9092901408	90929-01408	New Genuine Part
9092901416	90929-01416	New Genuine Part
9092901417	90929-01417	New Genuine Part
9099992002	90999-92002	Air Hose (300 mm)
9324954012	93249-54012	New Genuine Part
9541149906	95411-49906	Hose, Vacuum, No.1 (For Front Drive Shift)
9541149907	95411-49907	New Genuine Part

OEM	Part name	Category
17303-20010	Pipe Sub-Assy, Air, No.1	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
17308-20050	Hose Sub-Assy, Vacuum(For Idle-Up)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
17308-20090	Hose Sub-Assy, Vacuum	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
17308-20101	Hose Sub-Assy, Vacuum(For Idle-Up)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
17345-20030	Hose, Air, No.5	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
17346-20010	Hose, Air, No.6	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
17347-20010	Hose, Air, No.7	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
23826-20030	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
23826-20031	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
23827-20030	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
25701-20080	Valve Set, Emission Control	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
25701-20140	Valve Set, Emission Control	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
25719-20020	Tank, Vacuum Surge	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
25729-20010	Tank, Vacuum Surge W/bracket	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
25860-62010	Valve Assy, Vacuum Switching	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
25861-20070	Bracket, Vacuum Switching Valve	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90179-06080	NUT	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90339-04066	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90412-04002	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90412-05005	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90445-06023	Hose, Vacuum, No.3 (For Heater Or Air Conditioner)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90445-06057	Hose, Vacuum, No.3 (For Heater Or Air Conditioner)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90445-06061	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90445-06075	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90445-06076	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90445-08343	Hose, Vacuum, No.1 (For Front Drive Shift)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90447-08150	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90447-08159	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90464-00082	Clamp(For Resistive Cord)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90464-00241	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90467-16003	Clip Or Clamp(For Ventilation Hose)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90469-07009	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90469-12010	Clamp Or Clip(For Radiator Reserve Tank Hose No.3)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90904-13049	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90910-12193	Valve, Duty Vacuum Switching	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90910-12196	Valve, Duty Vacuum Switching	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90929-01402	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90929-01407	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90929-01408	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90929-01416	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90929-01417	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90949-01B77	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
91631-B0625	BOLT W-WASHER	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
91635-B0628	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
93249-54012	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
95326-07006	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
95411-49906	Hose, Vacuum, No.1 (For Front Drive Shift)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
95411-49907	New Genuine Part	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
96132-51100	Clip (For Hose)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
96132-51300	Clip(For Ventilation Hose No.2)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)
96133-41500	Clamp Or Clip(For Air Hose, No.5)	Vacuum Piping ([08.1999 - ] (9908- )1MZFE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 211
Collected: 2026-07-30
